Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the engine coolant. Refer to DRAINING AND FILLING COOLING SYSTEM .
  2. Remove the lower intake manifold. Refer to Intake Manifold Replacement - Lower .
  3. Remove the left exhaust manifold. Refer to EXHAUST MANIFOLD REPLACEMENT - LEFT (3.8 L) .
  4. Remove the valve rocker arms and pushrods. Refer to Valve Rocker Arm and Push Rod Replacement .
  5. Remove the left cylinder head bolts (1).

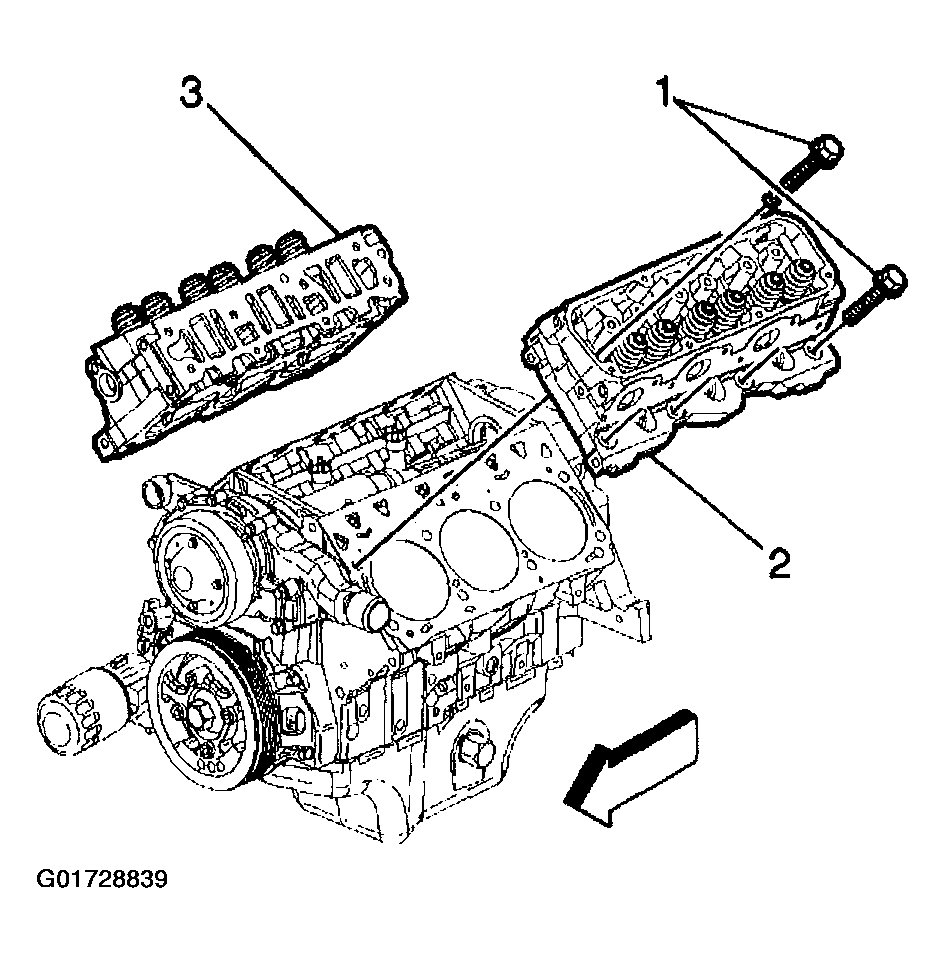

    Fig 1: Removing Left Cylinder Head Bolts
    G01728839Courtesy of GENERAL MOTORS CORP.
  6. Remove the left cylinder head (2).

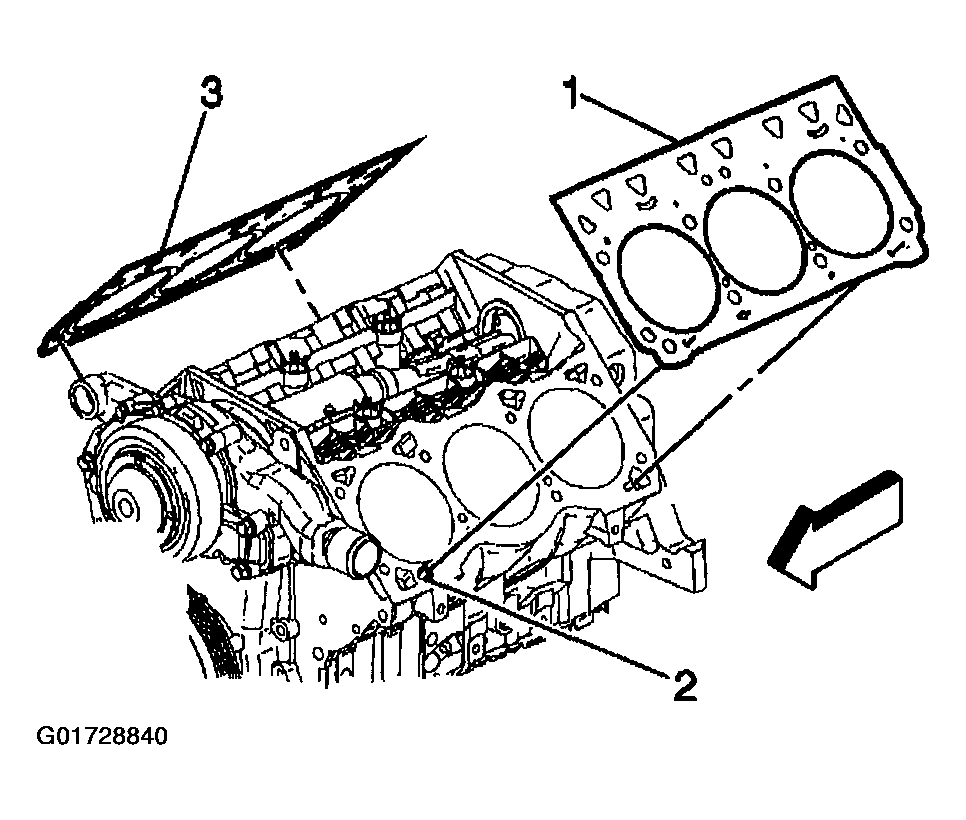

    Fig 2: Removing Left Cylinder Head
    G01728840Courtesy of GENERAL MOTORS CORP.
  7. Remove the left cylinder head gasket (1).
  8. Disassemble the left cylinder head. Refer to CYLINDER HEAD REMOVAL - LEFT .
