Cylinder Head Removal - Left

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cylinder head bolts.
  2. Discard the cylinder head bolts.
  3. Remove the cylinder head.
  4. Remove the cylinder head gasket.

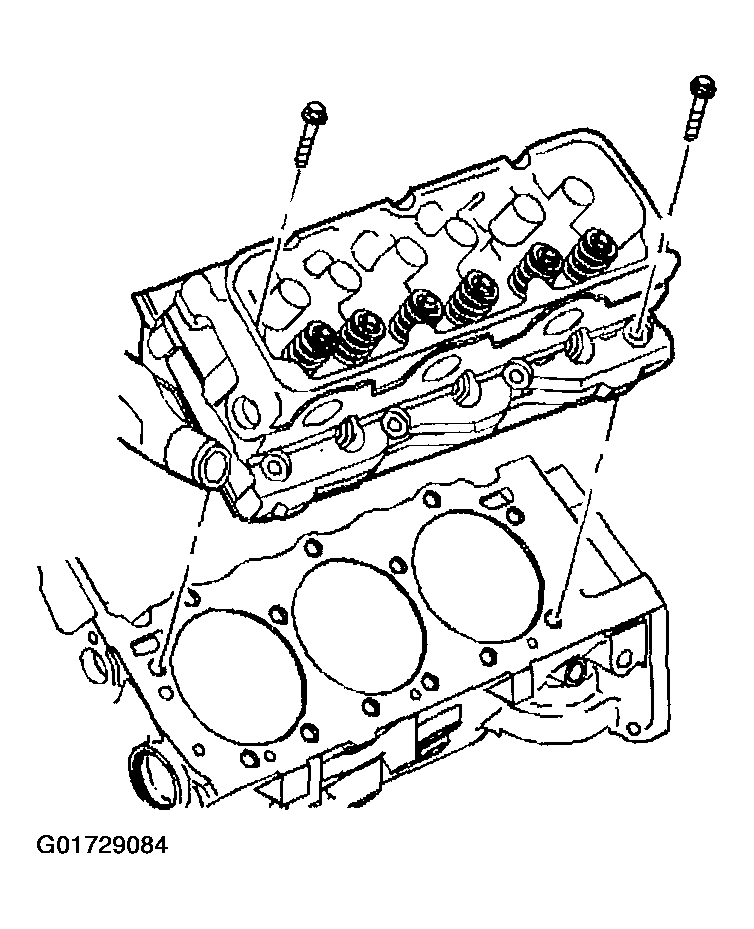

    Fig 1: Removing Cylinder Head
    G01729084Courtesy of GENERAL MOTORS CORP.
