A/C Pressure Zone "A" Diagnosis
WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Avoid contact with moving parts and hot surfaces while working around a running engine in order to prevent physical injury.
- Were you sent here from the A/C System Performance Test? If so, go to next step. If not, go to A/C SYSTEM PERFORMANCE TEST under PERFORMANCE TESTS.
- Refer to the air outlet temperatures recorded during the A/C system performance test. See Figure. Is there a 2-3 degree difference or more in the discharge air temperature between the right and left center I/P outlets? If so, go to step 7. If not, go to next step.
- Did the customer concern mention that the A/C system output temperatures are good at first, but then turn warm during extended drives? If so, go to next step. If not, go to step 5.
- Increase engine speed to 2000 RPM. During extended operation of the A/C system, does the low side pressure decrease, possibly accompanied by heavy frost on the liquid line between the orifice tube and the evaporator? If so, go to A/C PRESSURE ZONE "D" DIAGNOSIS . If not, go to next step.
- Refer to the pressures recorded during the A/C system performance test. See A/C SYSTEM PERFORMANCE TEST under PERFORMANCE TESTS. Inspect for the following conditions:

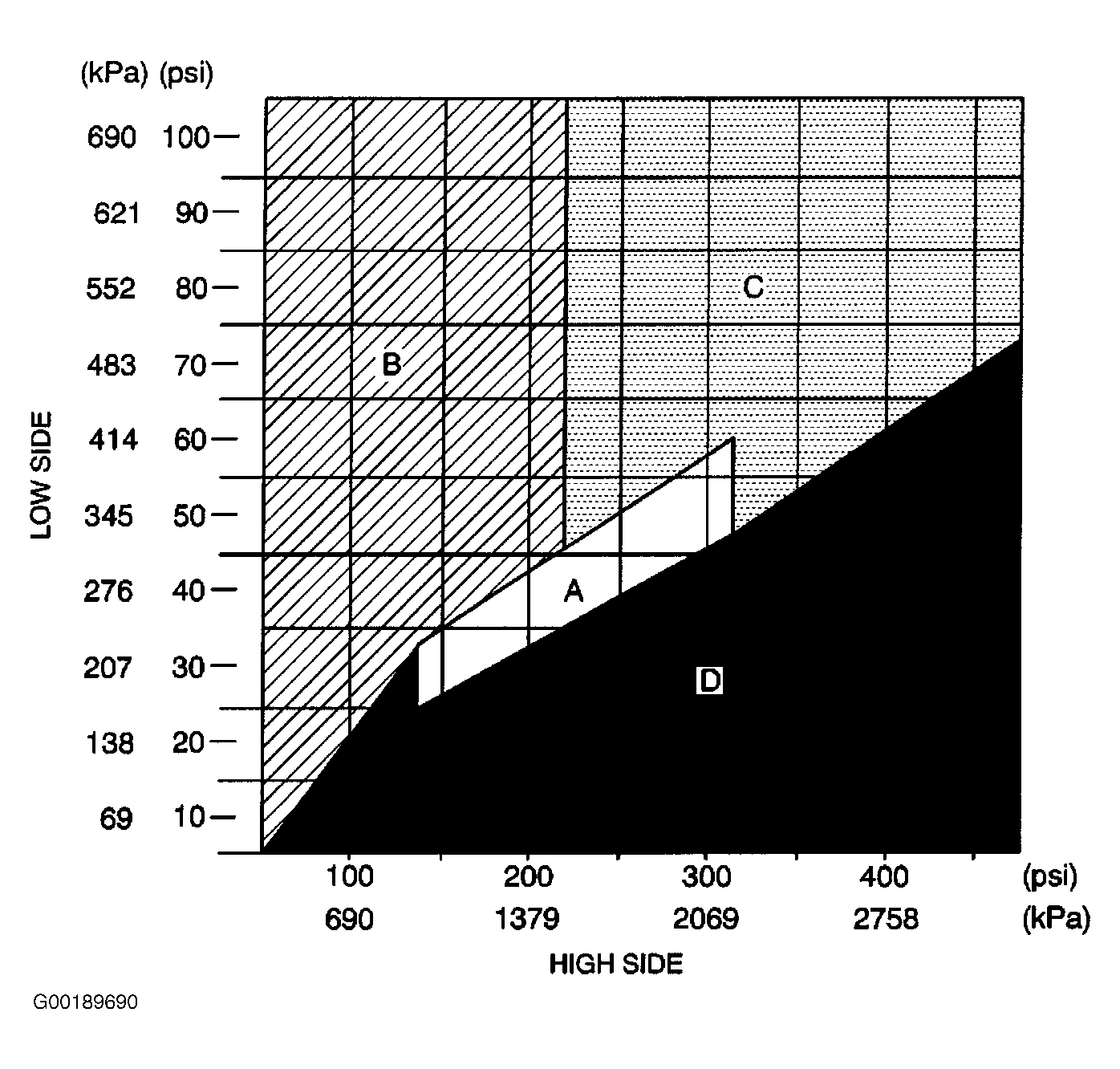

- The high side pressure slightly above the specified pressure ranges but still within zone A on the A/C Pressure-Zone Classification Chart. See Fig 1.
- The discharge line is hot.
- The suction line is cool.
- Refer to the pressures recorded during the A/C system performance test. See A/C SYSTEM PERFORMANCE TEST under PERFORMANCE TESTS. Inspect for the following conditions:
- The low side pressure slightly lower than the specified pressure ranges but still within zone A on the A/C Pressure-Zone Classification Chart. See Fig 1.
- The discharge line is warm-to-hot.
- The suction line is cool-to-warm.
- The A/C system may be undercharged. Leak test A/C system. See LEAK TESTING in GENERAL SERVICING PROCEDURES article in GENERAL SERVICING. Recharge the A/C system to specifications. See LEAK TESTING in GENERAL SERVICING PROCEDURES article in GENERAL SERVICING. After repairs are complete, go to step 14.
- The A/C system may be contaminated. View the ACR 2000 Air Conditioning Service Center information screen for detection of foreign gases in the A/C system. Do foreign gases exist? If so, go to next step. If not, go to step 10.
- Evacuate the A/C system to a scavenging tank. See LEAK TESTING in GENERAL SERVICING PROCEDURES article in GENERAL SERVICING. Recharge the A/C system to specifications. After repairs are complete, go to step 14.
- The A/C system may contain too much moisture or air. Evacuate and recharge the A/C system to specifications. See LEAK TESTING in GENERAL SERVICING PROCEDURES article in GENERAL SERVICING. Operate the A/C system and check the outlet air temperatures. Are the outlet temperatures within the specified ranges of the A/C Performance Test Table? See Figure. If so, go to step 15. If not, go to next step.
- The A/C system may contain too much refrigerant oil. Recover the refrigerant from the A/C system. See LEAK TESTING in GENERAL SERVICING PROCEDURES article in GENERAL SERVICING. Remove the accumulator. See ACCUMULATOR under REMOVAL & INSTALLATION. Drain and measure the refrigerant oil from the accumulator. Was there more than 5 ozs (148 ml) of refrigerant oil drained from the accumulator? If so, go to next step. If not, go to step 13.
- Reinstall the accumulator. See ACCUMULATOR under REMOVAL & INSTALLATION. Flush the A/C system. See FLUSHING PROCEDURES in GENERAL SERVICING PROCEDURES article in GENERAL SERVICING. Add the specified amount of refrigerant oil to the accumulator. See SPECIFICATIONS . Recharge the A/C system. See LEAK TESTING in GENERAL SERVICING PROCEDURES article in GENERAL SERVICING. After repairs are complete, go to step 14.
- Add the specified amount of refrigerant oil to the accumulator. See SPECIFICATIONS . Install the accumulator. See ACCUMULATOR under REMOVAL & INSTALLATION. Recharge the A/C system. See LEAK TESTING in GENERAL SERVICING PROCEDURES article in GENERAL SERVICING. After repairs are complete, go to step 14.
- Record the low and high side pressures and the I/P outlet air temperature. Compare the outlet temperatures to those listed in the A/C System Performance Chart. See Fig 1. Are the high and low side pressures and outlet temperatures within specifications? If so, go to next step. If not, go to A/C SYSTEM PERFORMANCE TEST under PERFORMANCE TESTS.
- Operate the system in order to verify the repair. Did you correct the condition? If so, system is okay. If not, go to SYMPTOM DIAGNOSIS under TROUBLE SHOOTING.
