Analog Instrument Panels: Description
WARNING:
Vehicles are equipped with air bag supplemental restraint system. Before attempting any repairs involving steering column, instrument panel or related components, see SERVICE PRECAUTIONS and DISABLING & ACTIVATING AIR BAG SYSTEM in appropriate AIR BAG RESTRAINT SYSTEMS article.

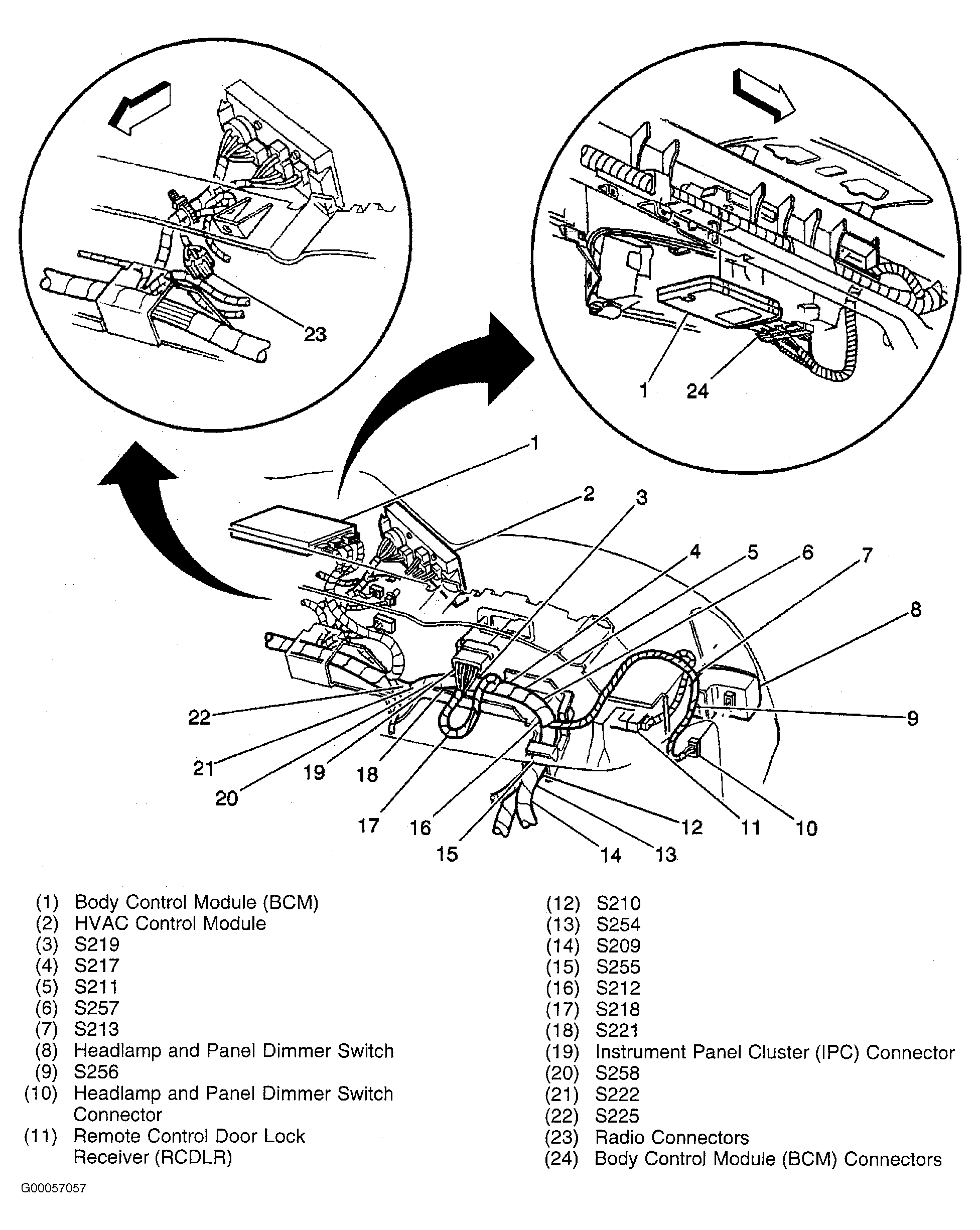

Instrument Panel Cluster (IPC) uses analog speedometer and gauges. See Fig 1 and Fig 2 . Indicator lights, plugged into back of cluster are serviceable, but no other components on cluster are serviceable. If any component on cluster is faulty, replace entire instrument panel cluster.
Driver information system consists of Driver Information Center (DIC) display module, ambient air temperature sensor and associated wiring. System displays outside air temperature, compass direction and trip information in overhead console.
