MULTIFUNCTION Alarm Module: Removal

Adjust right-side instrument panel insulator for access. See Fig 1 . Release retaining tab, and remove multifunction alarm module (2). See Fig 2 .

Fig 1: Removing Right Side Instrument Panel Insulator

Courtesy of GENERAL MOTORS CORP.

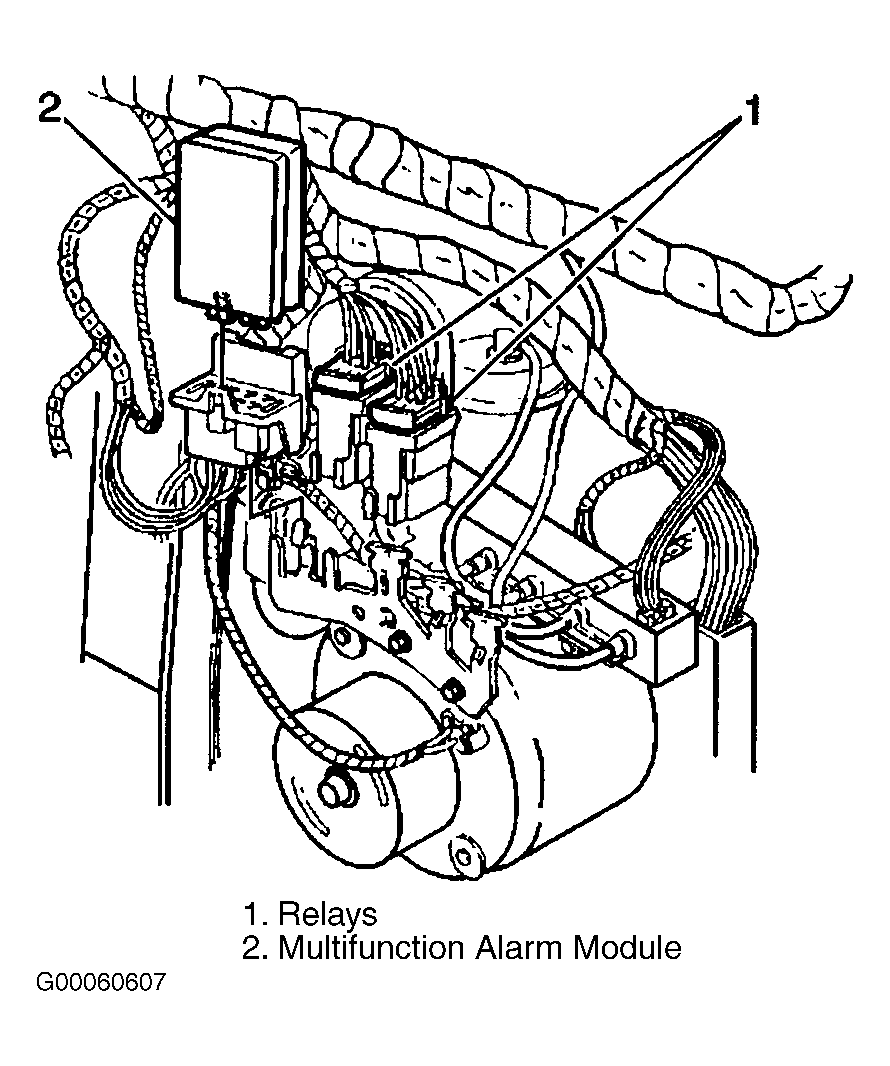

Fig 2: Removing Multifunction Alarm Module

Courtesy of GENERAL MOTORS CORP.
