Instrument Cluster: Installation

  1. Connect electrical connector and instrument cluster wiring harness retaining clips to instrument panel cluster.

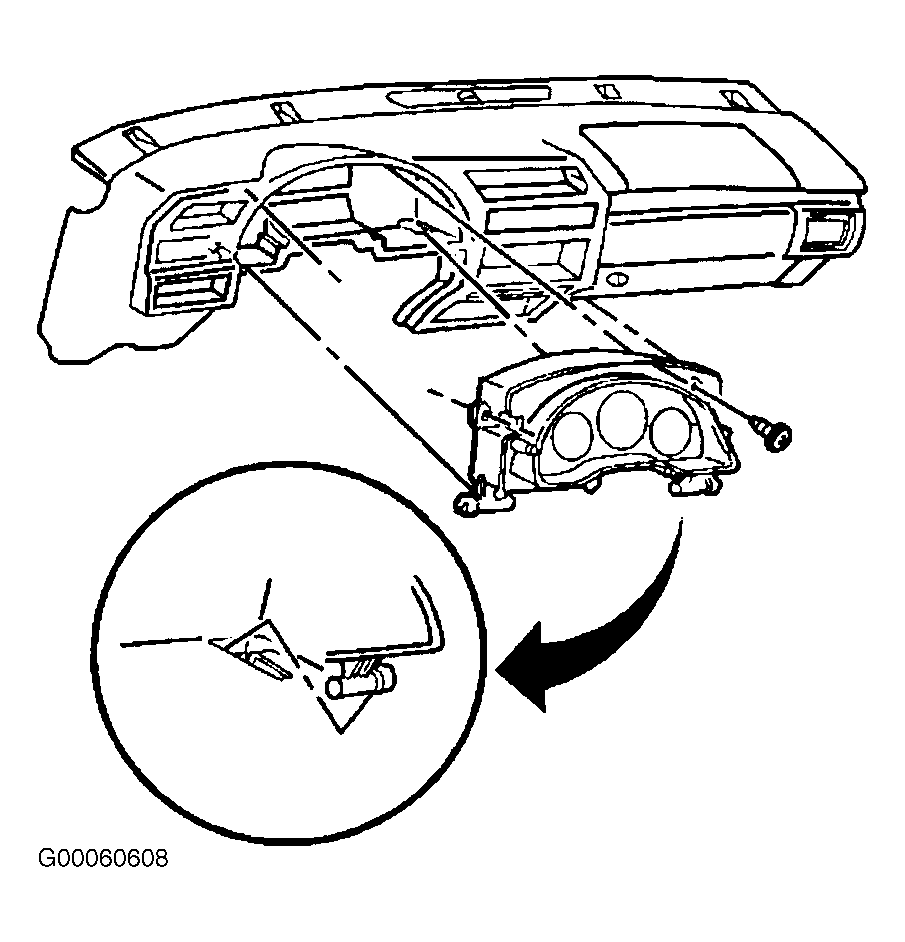

  2. Install instrument panel cluster to instrument panel opening, rotating top of instrument panel cluster rearward, then inserting instrument panel cluster locating pins into retainers and rotating top of instrument panel cluster forward. See Figure .
  3. Install screws to instrument panel cluster. Tighten instrument panel cluster screws to 18 INCH lbs. (2 N.m).
  4. Install instrument panel cluster trim plate. See INSTRUMENT CLUSTER TRIM PLATE  .
