Instrument Cluster & Panel Displays: Notes

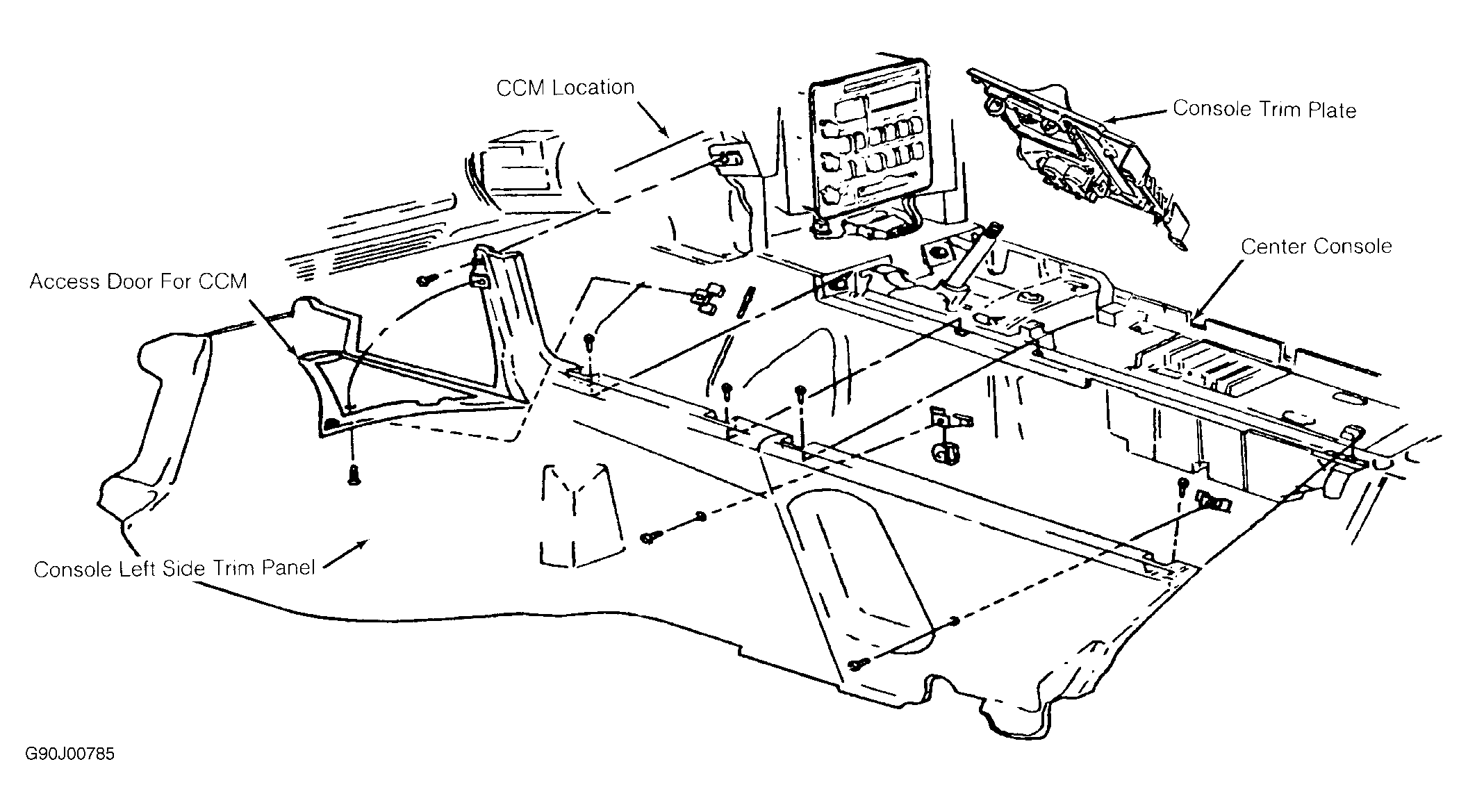

NOTE: Instrument cluster and instrument panel are 2 different components. Instrument cluster fits into instrument panel. Central Control Module (CCM) is located behind radio control head, in center of instrument panel. Access CCM wiring through door at front of center console left side trim panel. See Figure .
NOTE: To locate main fuse panel, open right vehicle door to reveal main fuse panel door on instrument panel end.
