Front Bumper Fascia Lower Stiffener Replacement

Courtesy of GENERAL MOTORS COMPANY

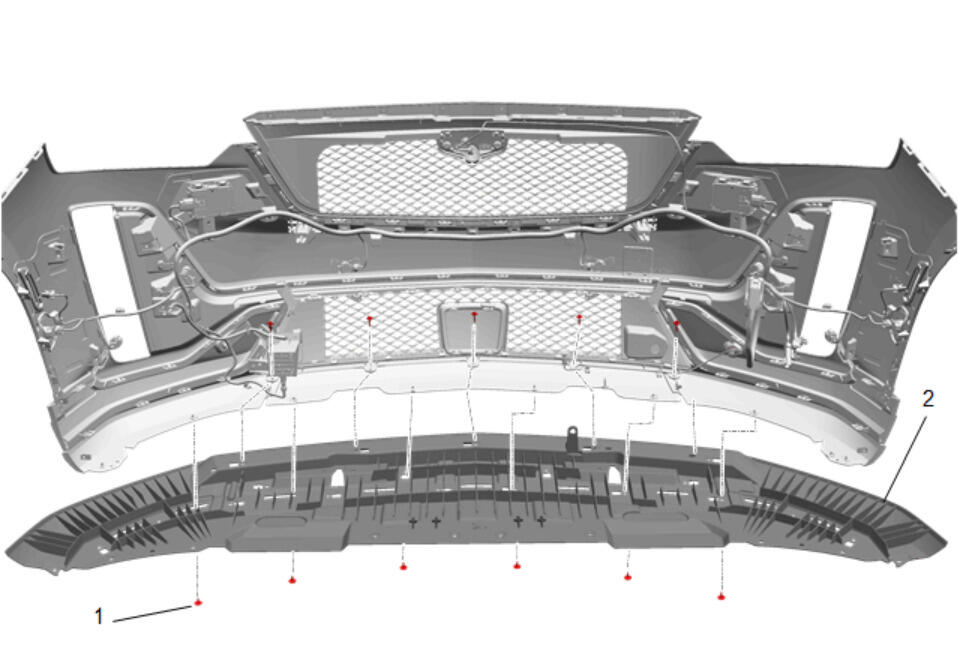

Callout	Component Name
Preliminary Procedures Front Bumper Fascia Center Air Deflector Replacement Front Bumper Fascia Removal and Installation
1	Front Bumper Fascia Lower Stiffener Bolt [ 11x ] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Bumper Fascia Lower Stiffener Procedure Reposition the wiring harness.

Callout

Component Name

Preliminary Procedures

Front Bumper Fascia Lower Stiffener Bolt [ 11x ]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Front Bumper Fascia Lower Stiffener
Procedure
Reposition the wiring harness.
