Front Bumper Fascia Center Air Deflector Replacement

Courtesy of GENERAL MOTORS COMPANY

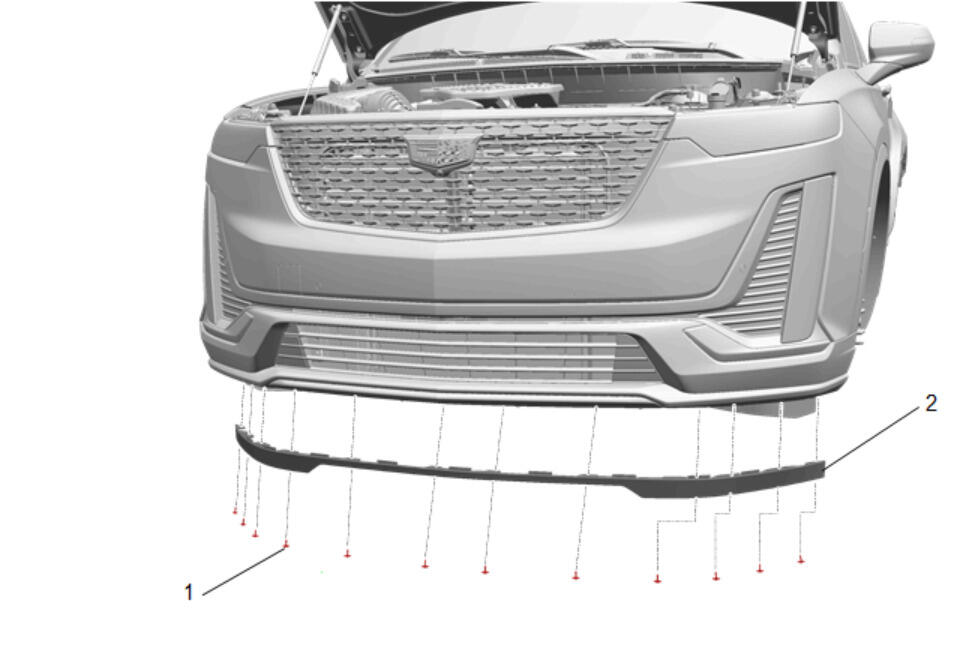

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Lifting and Jacking the Vehicle
1	Front Bumper Fascia Center Air Deflector Bolt [ 12x ] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Bumper Fascia Center Air Deflector Procedure Pull the air deflector outward and down from the front bumper fascia. Lower the vehicle.

Callout

Component Name

Preliminary Procedure
Raise and support the vehicle. Lifting and Jacking the Vehicle

Front Bumper Fascia Center Air Deflector Bolt [ 12x ]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Front Bumper Fascia Center Air Deflector

Procedure
