Fastener Specifications
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Callouts in the following chart represent components shown in graphic above.

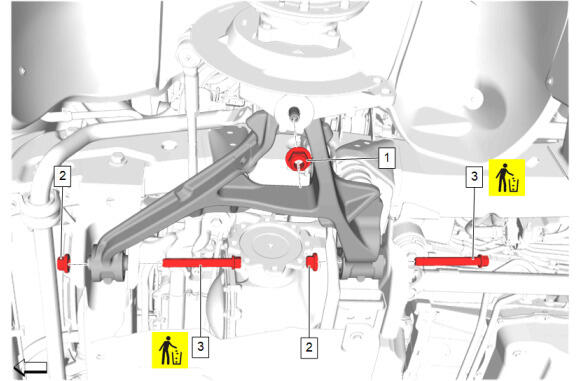

Front Lower Control Arm
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Lower Control Arm Ball Stud Nut | - | - | First Pass: 50 N.m (37 lb ft) Final Pass: 90 - 100 degrees |
Front Lower Control Arm Replacement (2WD) , or Front Lower Control Arm Replacement (4WD without DZW) , or Front Lower Control Arm Replacement (4WD with DZW) |
| 2 | Front Lower Control Arm Nut [2x] | - | - | First Pass: 180 N.m (133 lb ft) Final Pass: 45 - 75 degrees |
Front Lower Control Arm Replacement (2WD) , or Front Lower Control Arm Replacement (4WD without DZW) , or Front Lower Control Arm Replacement (4WD with DZW) |
| 3 | Front Lower Control Arm Bolt [2x] | Yes | - | - | Front Lower Control Arm Replacement (2WD) , or Front Lower Control Arm Replacement (4WD without DZW) , or Front Lower Control Arm Replacement (4WD with DZW) |
NOTE:
Callouts in the following chart represent components shown in graphic above.

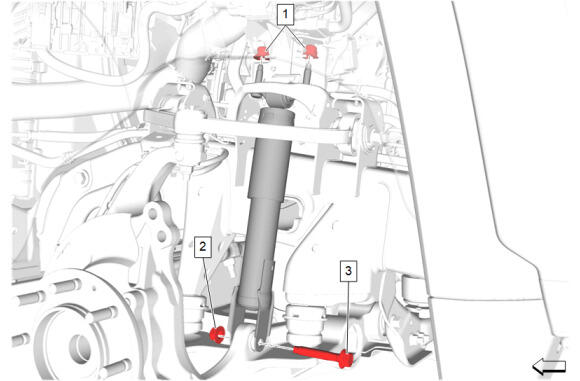

Front Shock Absorber
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Shock Absorber Nut [2x] | - | - | 65 N.m (48 lb ft) | Front Shock Absorber Replacement |
| 2 | Front Shock Absorber Nut | - | - | - | Front Shock Absorber Replacement |
| 3 | Front Shock Absorber Bolt | - | - | 160 N.m (118 lb ft) | Front Shock Absorber Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

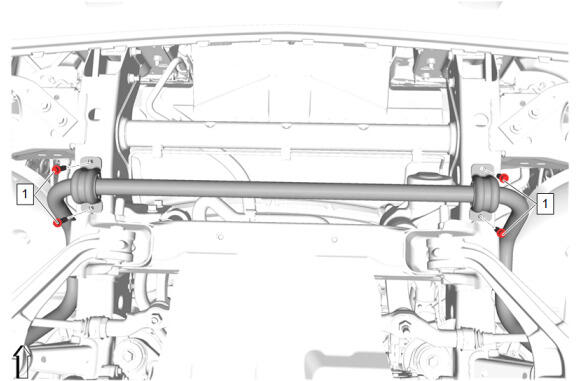

Front Stabilizer Shaft
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Stabilizer Shaft Bolt [4x] | - | - | 50 N.m (37 lb ft) | Front Stabilizer Shaft Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Front Stabilizer Shaft Link
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Stabilizer Shaft Link Nut [2x] | - | - | 100 N.m (74 lb ft) | Front Stabilizer Shaft Link Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

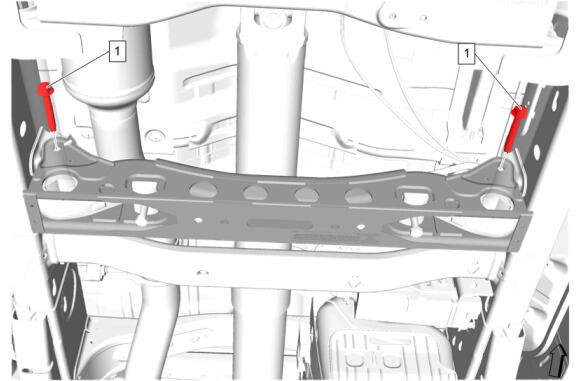

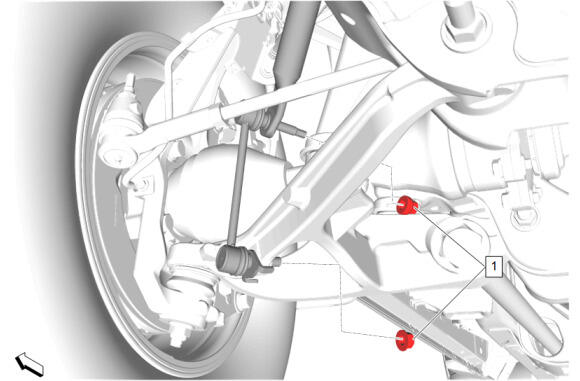

Front Torsion Bar Support Bracket
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Torsion Bar Support Bolt [2x] | - | - | 125 N.m (92 lb ft) | Torsion Bar Support Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

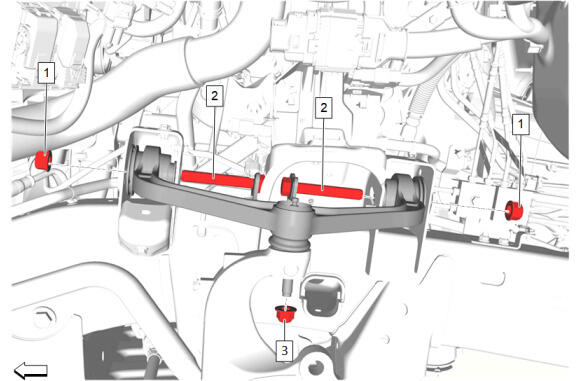

Front Upper Control Arm
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Upper Control Arm Nut [2x] | - | - | Torque to be applied during alignment. | Front Caster and Camber Adjustment |
| 2 | Front Upper Control Arm Bolt [2x] | - | - | - | Front Upper Control Arm Replacement |
| 3 | Front Upper Control Arm Ball Stud Nut | - | - | First Pass: 50 N.m (37 lb ft) Final Pass: 90 - 110 Degrees |
Front Upper Control Arm Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

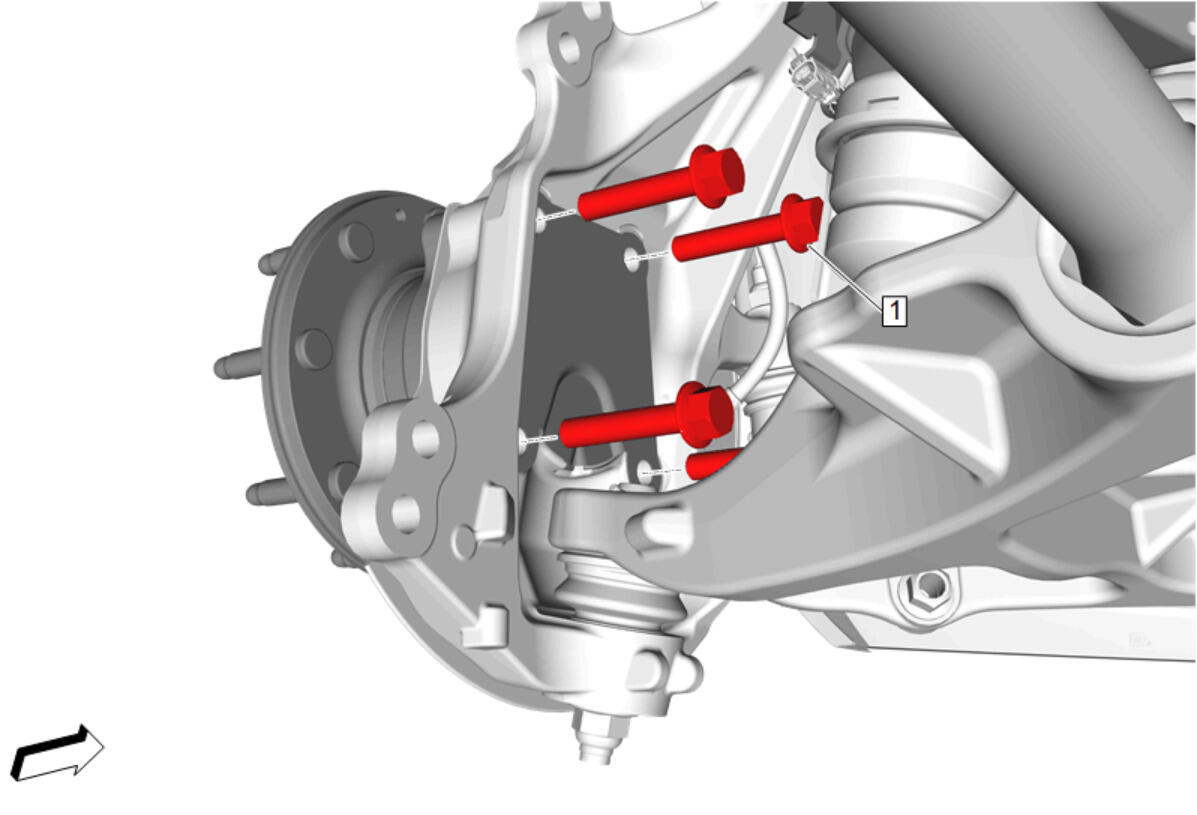

Front Wheel Hub (2WD)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Wheel Hub Bolt [4x] | - | - | 180 N.m (133 lb ft) | Front Wheel Bearing and Hub Replacement (2WD, SRW) , or Front Wheel Bearing and Hub Replacement (2WD, DZW) |
NOTE:
Callouts in the following chart represent components shown in graphic above.

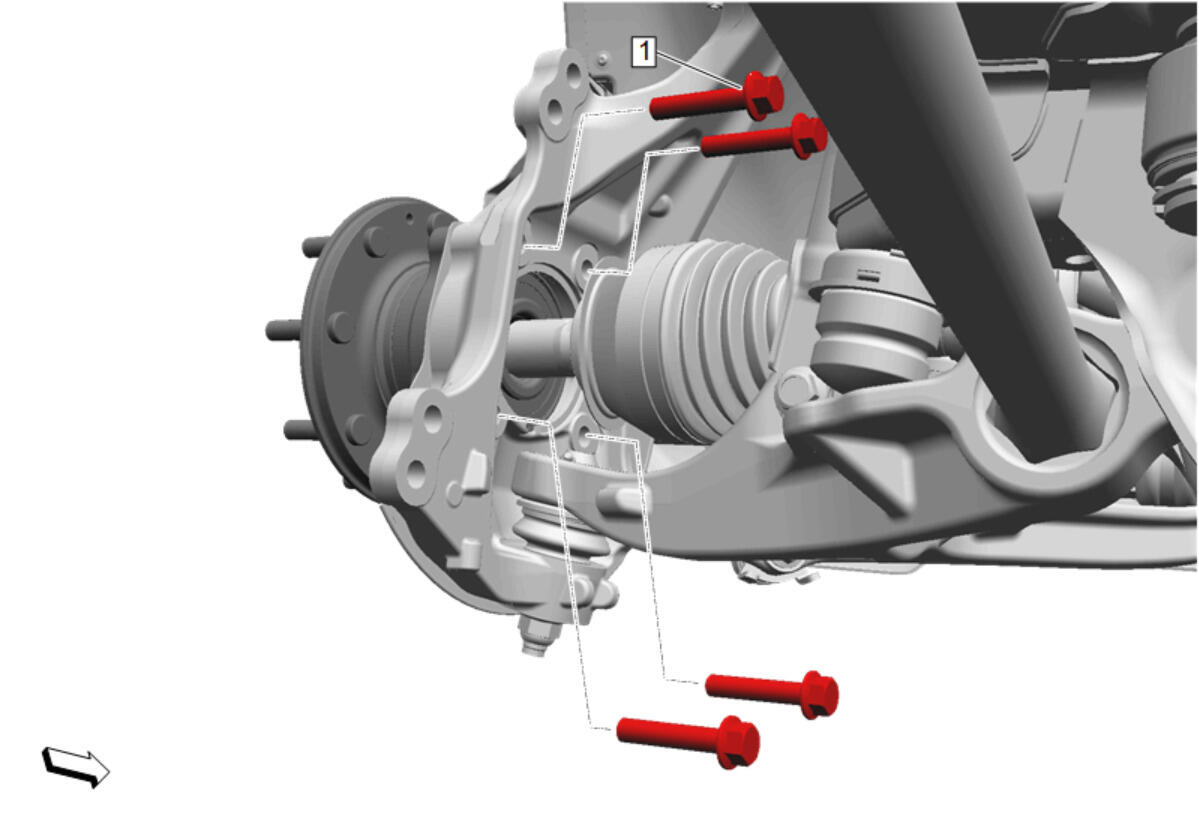

Front Wheel Hub (4WD)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Wheel Hub Bolt [4x] | - | - | 180 N.m (133 lb ft) | Front Wheel Bearing and Hub Replacement (4WD, SRW) , or Front Wheel Bearing and Hub Replacement (4WD, DZW) |
NOTE:
Callouts in the following chart represent components shown in graphic above.

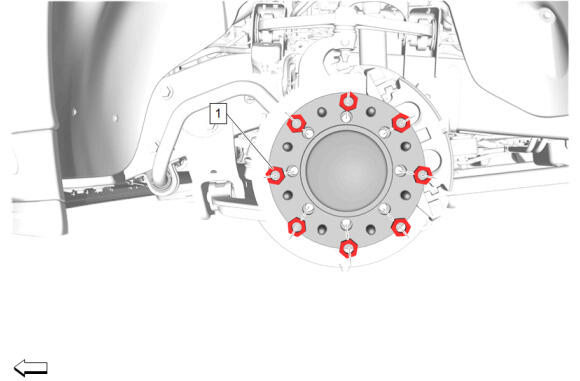

Front Wheel Hub Extension
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Wheel Hub Extension Nut [8x] | - | - | 130 N.m (96 lb ft) | Front Wheel Hub Extension Replacement |
