Rear Seat Heater Control Module Replacement

WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

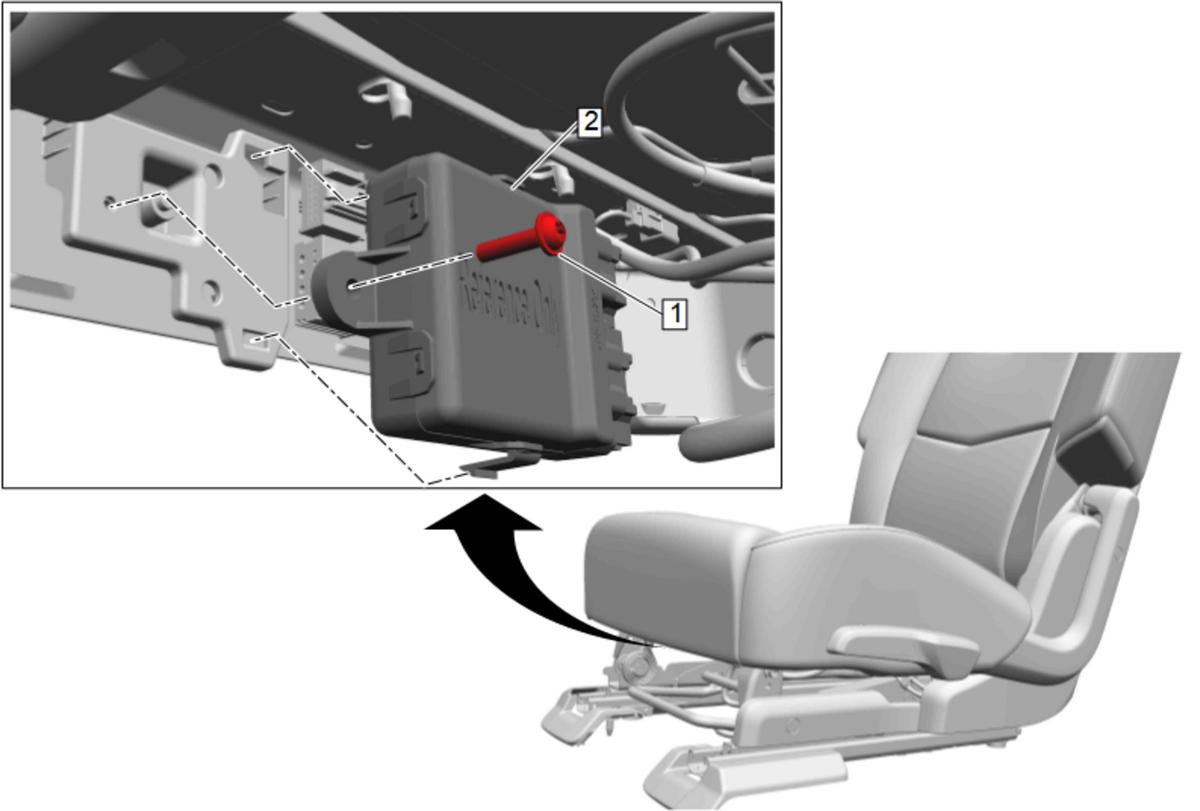

Callout	Component Name
Preliminary Procedure Rear Seat Removal and Installation (40 Percent Seat)Rear Seat Removal and Installation (60 Percent Seat)Rear Seat Removal and Installation (Bucket Seat)
1	Rear Seat Heater Control Module Fastener CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Rear Seat Heater Control Module Procedure Disconnect the electrical connectors. Release the retaining tabs.

Callout

Component Name

Preliminary Procedure
Rear Seat Removal and Installation (40 Percent Seat)Rear Seat Removal and Installation (60 Percent Seat)Rear Seat Removal and Installation (Bucket Seat)

Rear Seat Heater Control Module Fastener

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Rear Seat Heater Control Module

Procedure

Disconnect the electrical connectors.
Release the retaining tabs.
