Front Floor Panel Carpet Replacement - Right Side

WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

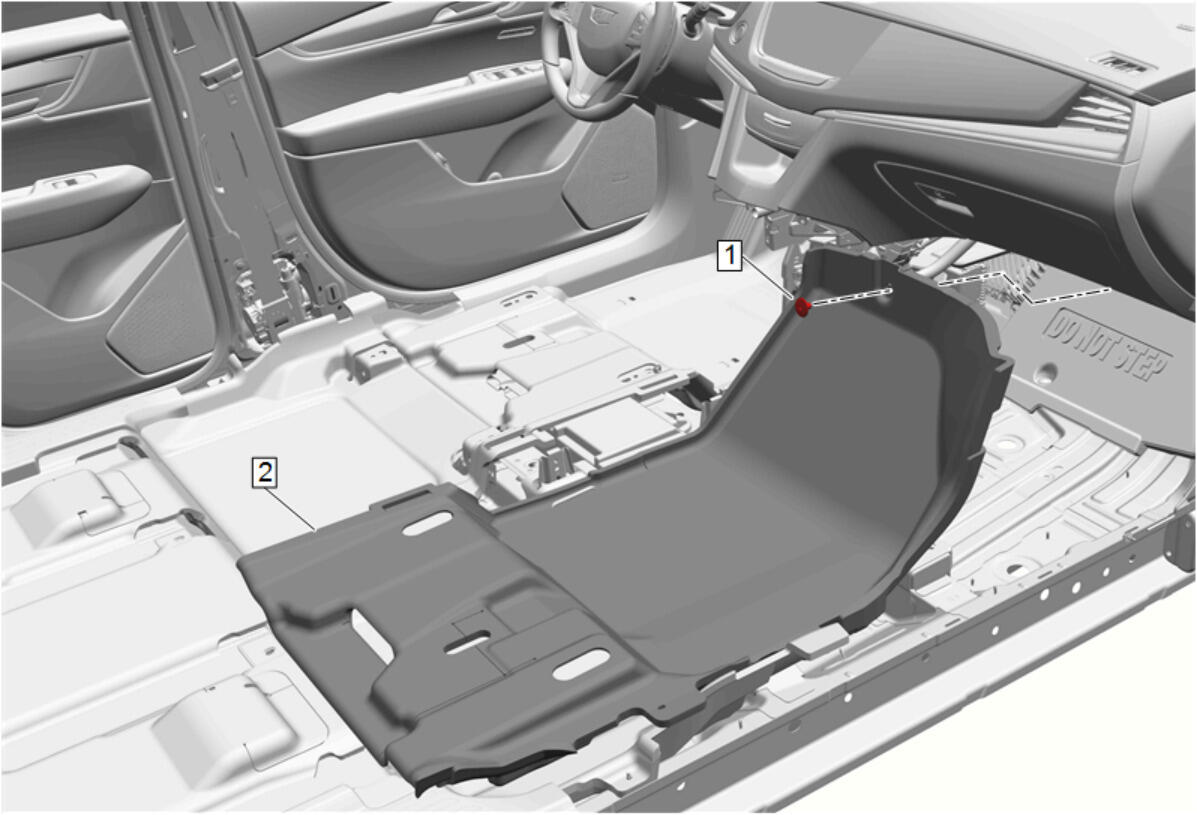

Callout	Component Name
Preliminary Procedures Front Seat Removal and Installation Center Pillar Lower Trim Panel Replacement Front Floor Console Replacement
1	Floor Carpet Retainer Procedure Use a plastic flat-bladed tool to aid in the removal of the push-in retainer.
2	Front Floor Panel Carpet

Callout

Component Name

Preliminary Procedures

Front Seat Removal and Installation
Center Pillar Lower Trim Panel Replacement
Front Floor Console Replacement

Floor Carpet Retainer
Procedure
Use a plastic flat-bladed tool to aid in the removal of the push-in retainer.

Front Floor Panel Carpet
