Center Pillar Lower Trim Panel Replacement

WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Side Door Sill Garnish Molding Replacement Rear Side Door Sill Garnish Molding Replacement Center Pillar Upper Trim Panel Replacement

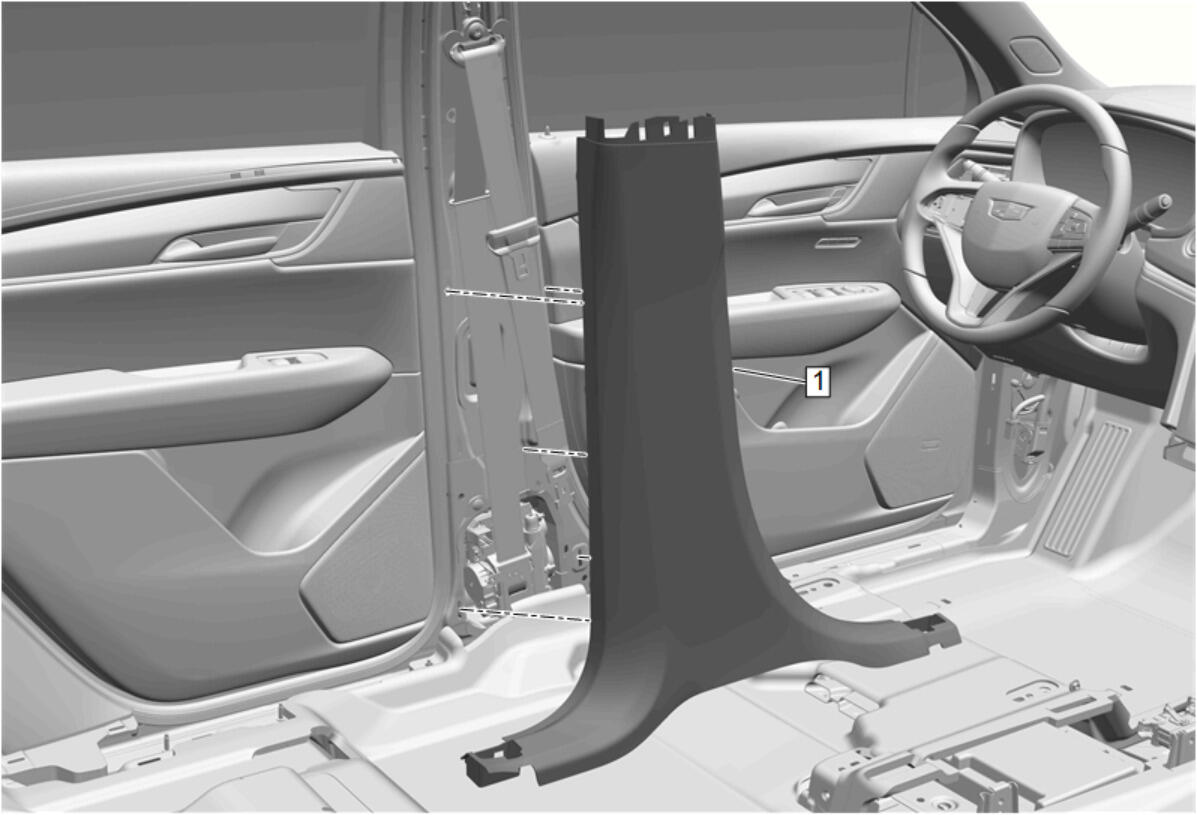

1	Center Pillar Lower Trim Panel Procedure Move the seat to the full forward position. Pull the center pillar lower trim panel inward and upward to disengage the retainers and to clear the front seat tensioner. Ensure the seat belt webbing does not become trapped during installation.

Callout

Component Name

Preliminary Procedures

Front Side Door Sill Garnish Molding Replacement
Rear Side Door Sill Garnish Molding Replacement
Center Pillar Upper Trim Panel Replacement

Center Pillar Lower Trim Panel

Procedure

Move the seat to the full forward position.
Pull the center pillar lower trim panel inward and upward to disengage the retainers and to clear the front seat tensioner.
Ensure the seat belt webbing does not become trapped during installation.
