Front Bumper Fascia Center Support Replacement

WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

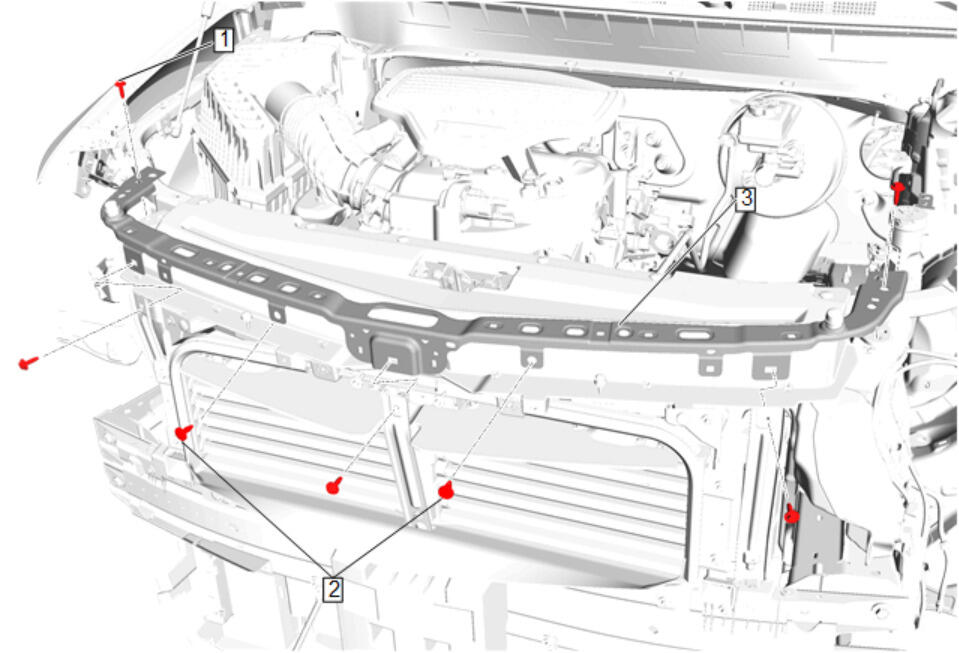

Callout	Component Name
Preliminary Procedures Front Headlamp Replacement Only remove the bolts attaching the latch to the support and position aside. Hood Secondary Latch Release Cable Replacement Remove the 2 left and right side radiator air side upper baffle bolts: Radiator Air Side Upper Baffle Replacement - Left Side (LGX)Radiator Air Side Upper Baffle Replacement - Left Side (LSY) Radiator Air Side Upper Baffle Replacement - Right Side (LGX)Radiator Air Side Upper Baffle Replacement - Right Side (LSY)
1	Front Bumper Fascia Center Support Bolt [ 5x ] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Front Bumper Fascia Center Support Retainer [ 2x ]
3	Front Bumper Fascia Center Support
