Center Pillar Upper Trim Panel Replacement

WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.

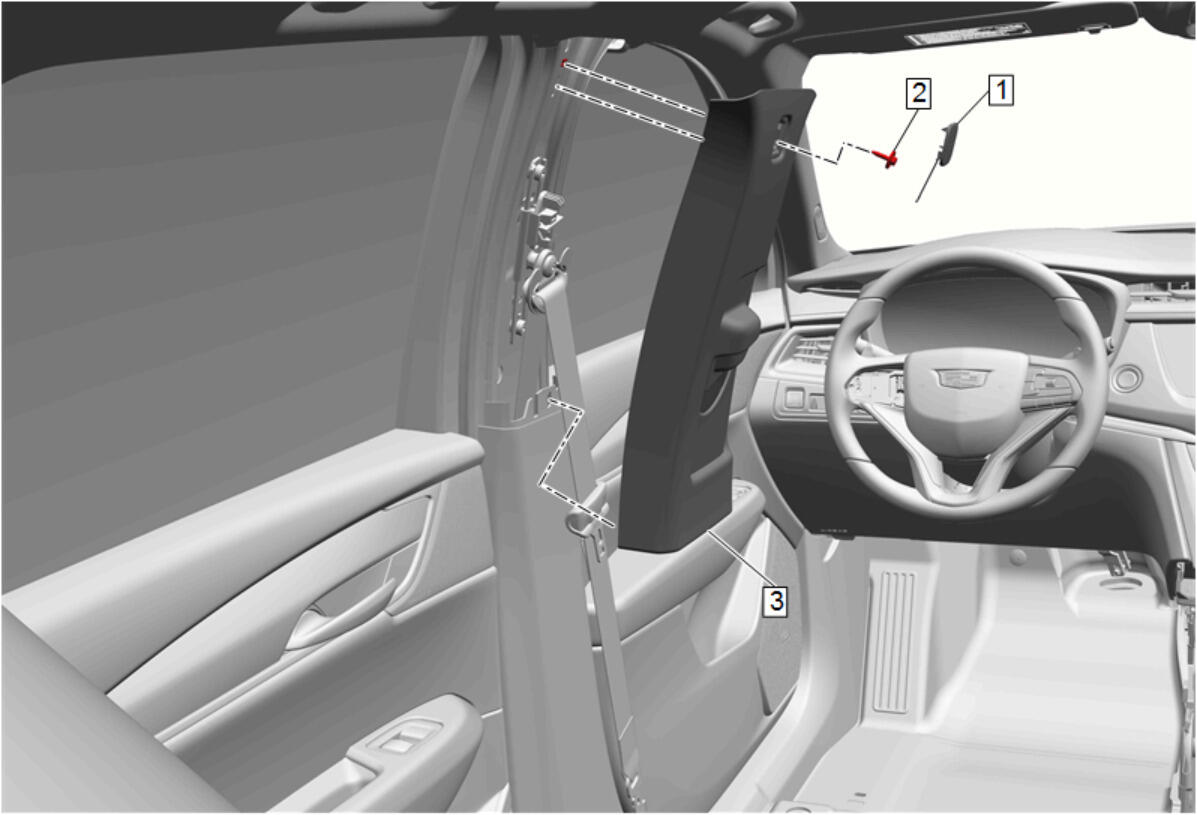

GM5222616Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
CAUTION:

Use care when working around the head curtain inflator module. Sharp tools may puncture the curtain airbag. If the head curtain inflator module is damaged in any way, it must be replaced.

Preliminary Procedures

  1. Disable the SIR system. SIR Disabling and Enabling
  2. Remove the driver or passenger seat belt anchor plate tensioner cover and bolt. Front Seat Belt Retractor Replacement
1 Center Pillar Upper Trim Panel Bolt Cap
2 Center Pillar Upper Garnish Molding Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
3 Center Pillar Upper Trim Panel

Procedure

  1. Pull the trim panel toward the inside of the vehicle to disengage the retainers.
  2. When replacing the center pillar upper trim panel, feed the seat belt through the panel.
  3. Enable the SIR System. SIR Disabling and Enabling
