Intake Air Splash Shield Replacement
WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.

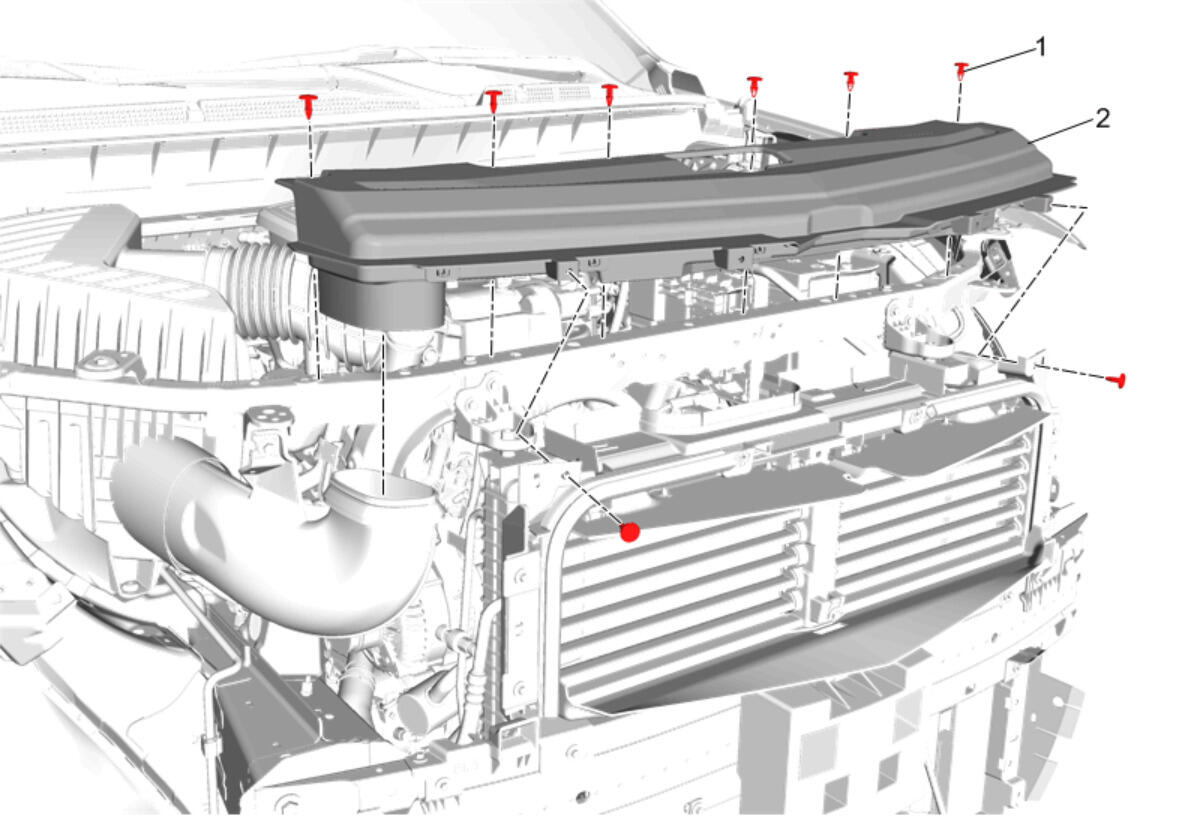

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Bumper Fascia Center Support Replacement |
|
| 1 | Intake Air Splash Shield Retainer [8x]
CAUTION:
Refer to Fastener Caution . |
| 2 | Intake Air Splash Shield |
