Front Floor Console Extension Panel Replacement

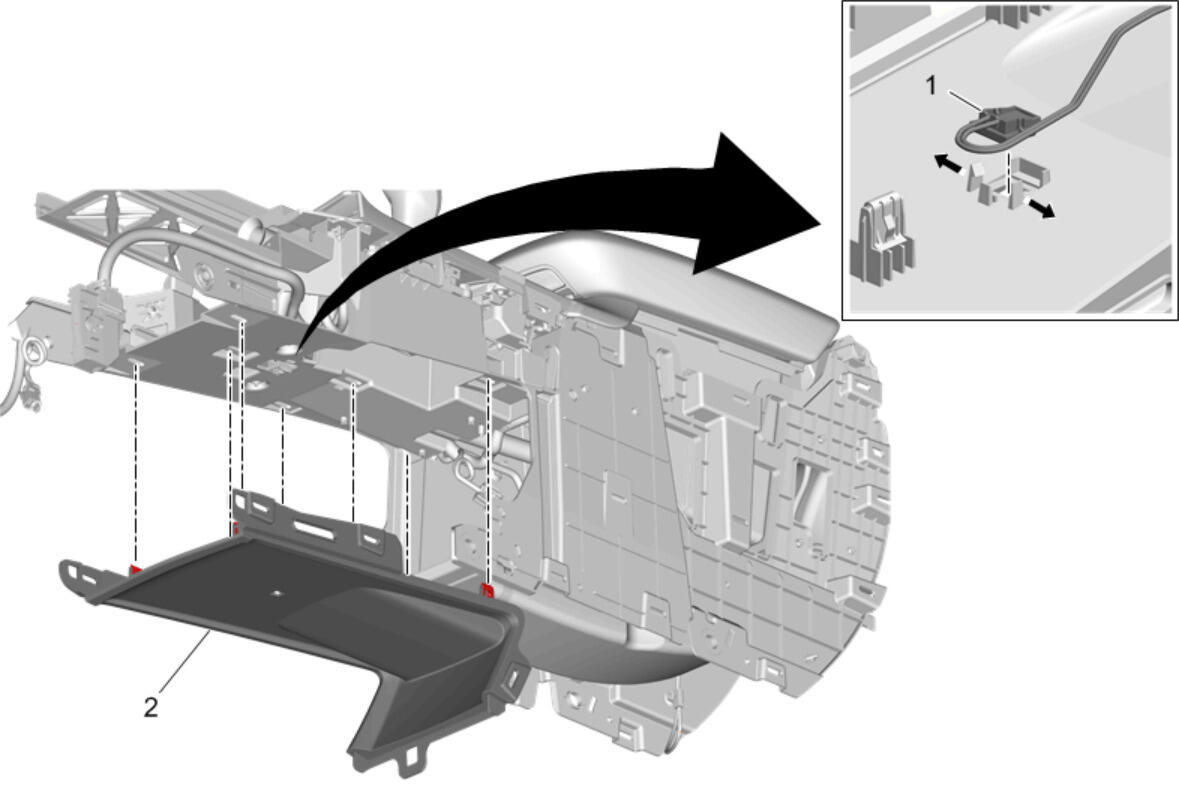

GM4293082
Callout Component Name

Preliminary Procedures

  1. Front Floor Console Replacement
  2. Front Floor Rear Console Side Trim Panel Replacement - Left Side
  3. Front Floor Rear Console Side Trim Panel Replacement - Right Side
1 Front Floor Console Bin Lamp
Procedure
Release the plastic retaining tabs.
2 Front Floor Console Extension Panel

Procedure

  1. Release the clips with a suitable tool.
  2. Transfer components as necessary.
