Front Floor Rear Console Side Trim Panel Replacement - Left Side

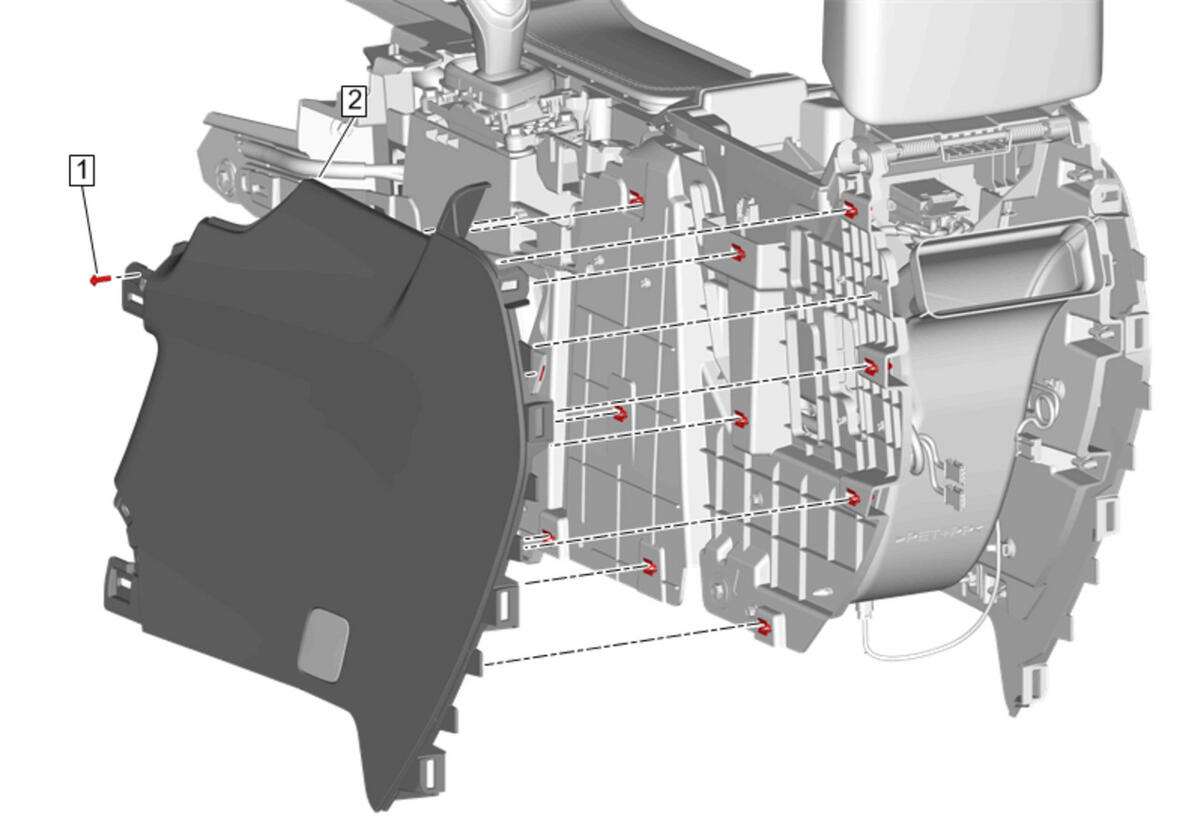

Callout	Component Name
Preliminary Procedure Front Floor Console Replacement Front Floor Console Trim Plate Replacement Front Floor Console Rear Trim Panel Replacement
1	Front Floor Console Bracket Bolt CAUTION: Refer to Fastener Caution . Tighten 1 N.m (9 lb in)
2	Front Floor Rear Console Side Trim Panel - Left Side Procedure Release the clips with a suitable tool.

Callout

Component Name

Preliminary Procedure

Front Floor Console Bracket Bolt

CAUTION:

Tighten
1 N.m (9 lb in)

Front Floor Rear Console Side Trim Panel - Left Side
Procedure
Release the clips with a suitable tool.
