Removal Procedure

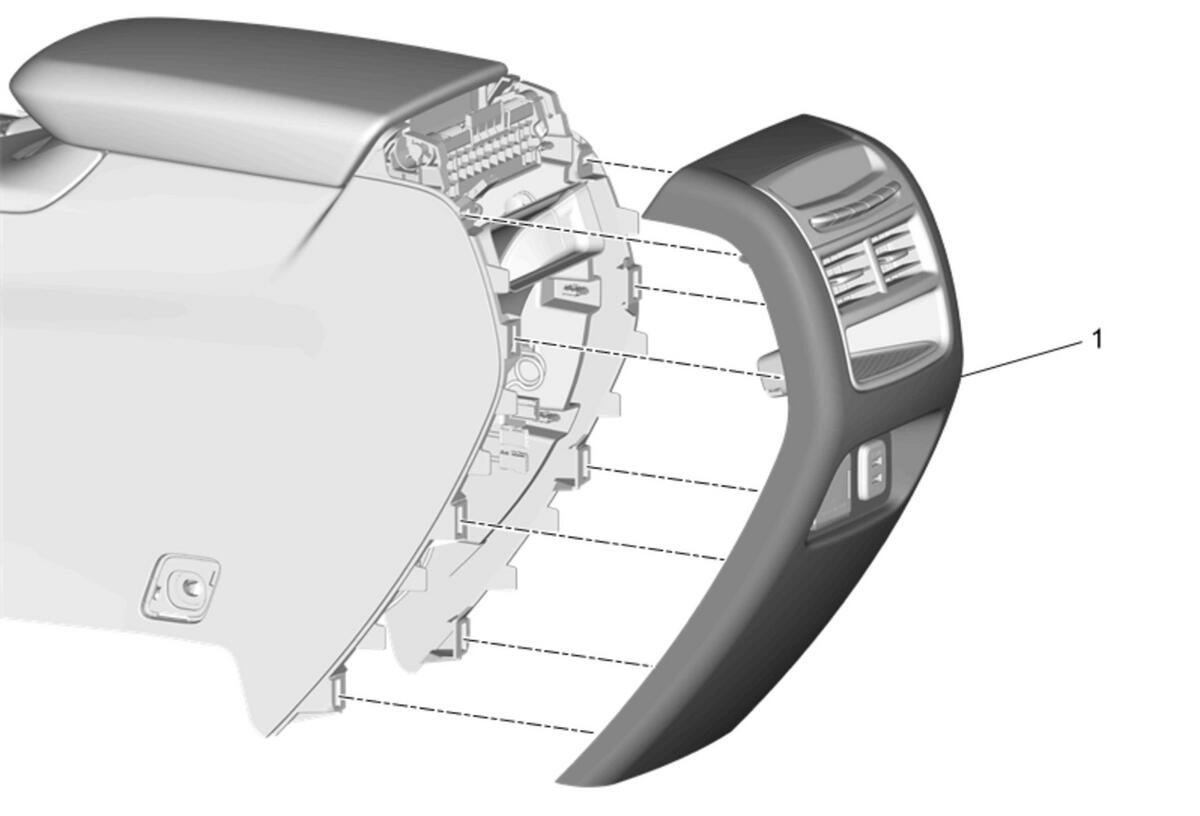

  1. GM4285231

    Front Floor Console Rear Trim Panel (1) - Remove - Front Floor Console Rear Trim Panel Replacement

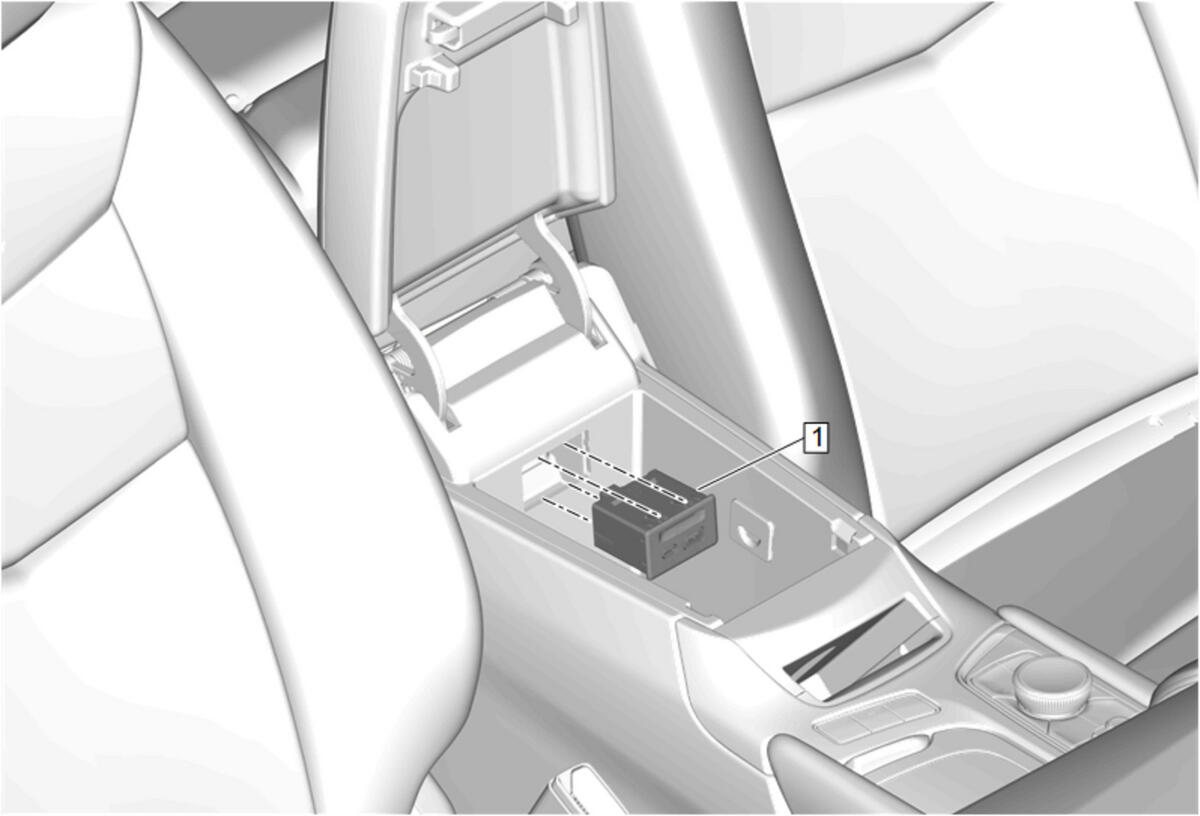

  2. GM5168577

    Audio Disc Player and USB Receptacle (1) - Remove - Audio Player and USB Receptacle Replacement

  3. GM4288920

    Theft Deterrent Module (2) - Remove - Theft Deterrent Module Replacement

  4. GM5164866

    Front Floor Console Trim Plate (1) - Remove - Front Floor Console Trim Plate Replacement

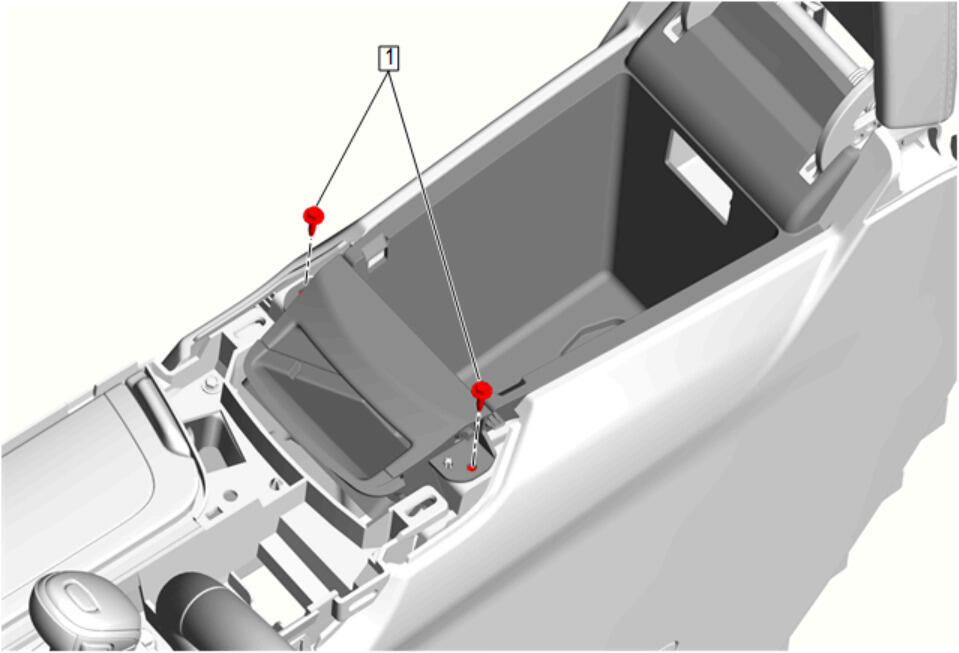

  5. GM5169145

    Front Floor Console Compartment Bolt (1) - Remove [ 2x ]

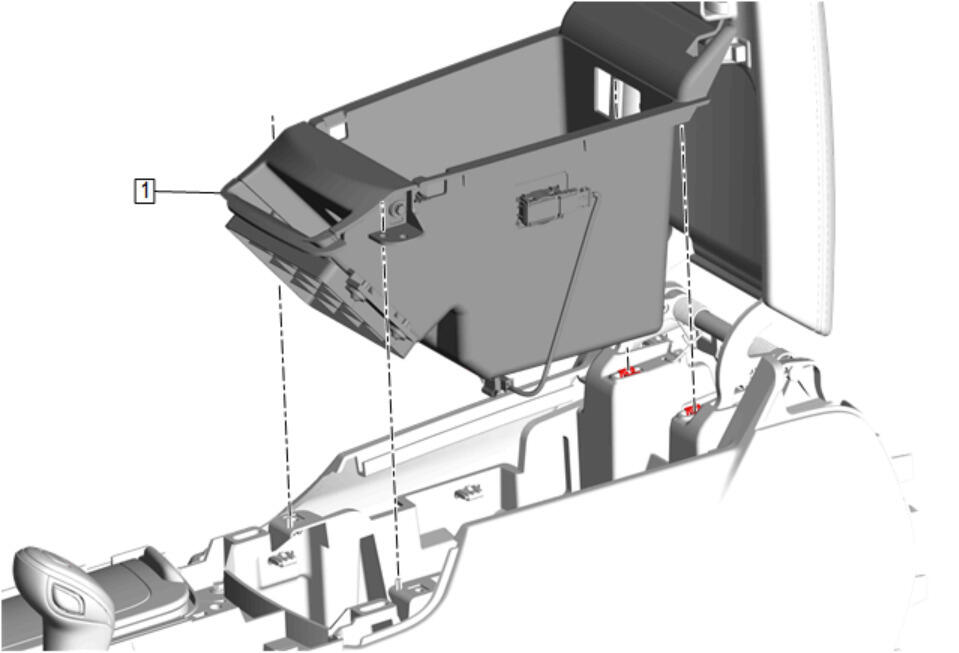

  6. GM5169147

    Use a flat bladed plastic tool to remove.

  7. Front Floor Console Compartment (1) - Remove
  8. Disconnect the electrical connector.
  9. Transfer components as necessary.
