Audio Player and USB Receptacle Replacement

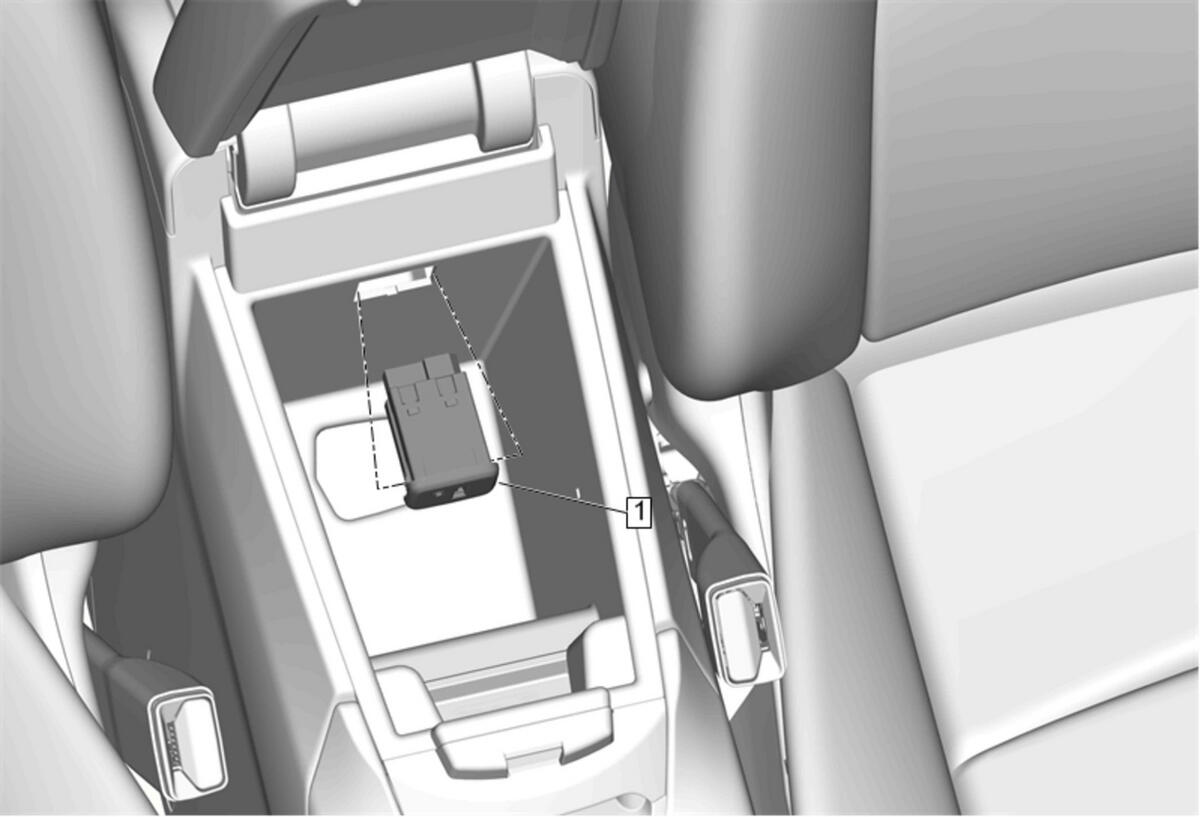

GM4279662
Callout Component Name
Preliminary Procedure
Front Floor Console Armrest - Open
1 Audio Disc Player and USB Receptacle

Procedure

  1. Use a flat bladed plastic tool to remove.
  2. Disconnect the electrical connector.
