Center Pillar Lower Trim Panel Replacement

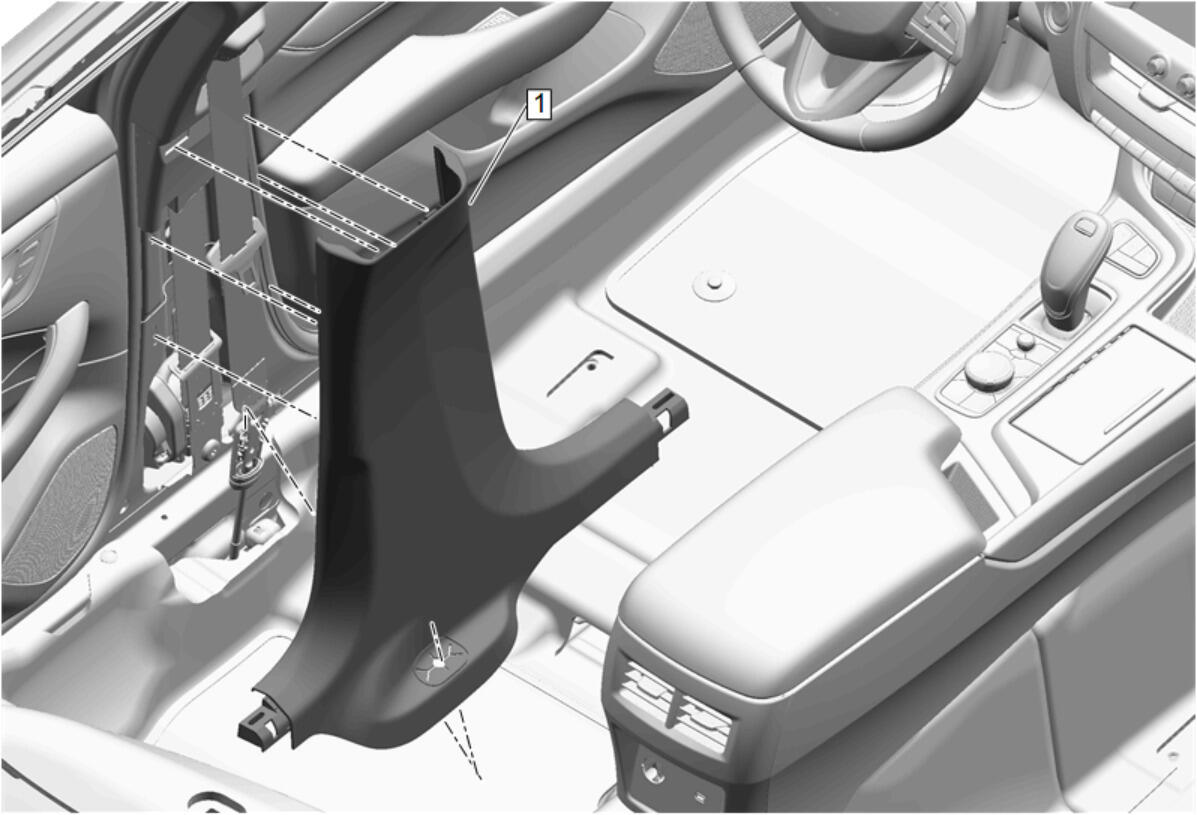

GM5331576Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Front Side Door Sill Garnish Molding Replacement
  2. Rear Side Door Sill Garnish Molding Replacement
  3. Remove the driver or passenger seat belt anchor plate tensioner cover and bolt. Front Seat Belt Anchor Plate Tensioner Replacement
1 Center Pillar Lower Trim Panel

Procedure

  1. Move the seat to the full forward position.
  2. Pull the center pillar lower trim panel inward and upward to disengage the retainers and to clear the front seat tensioner.
  3. Ensure the seat belt webbing does not become trapped during installation.
