Front Side Door Sill Garnish Molding Replacement

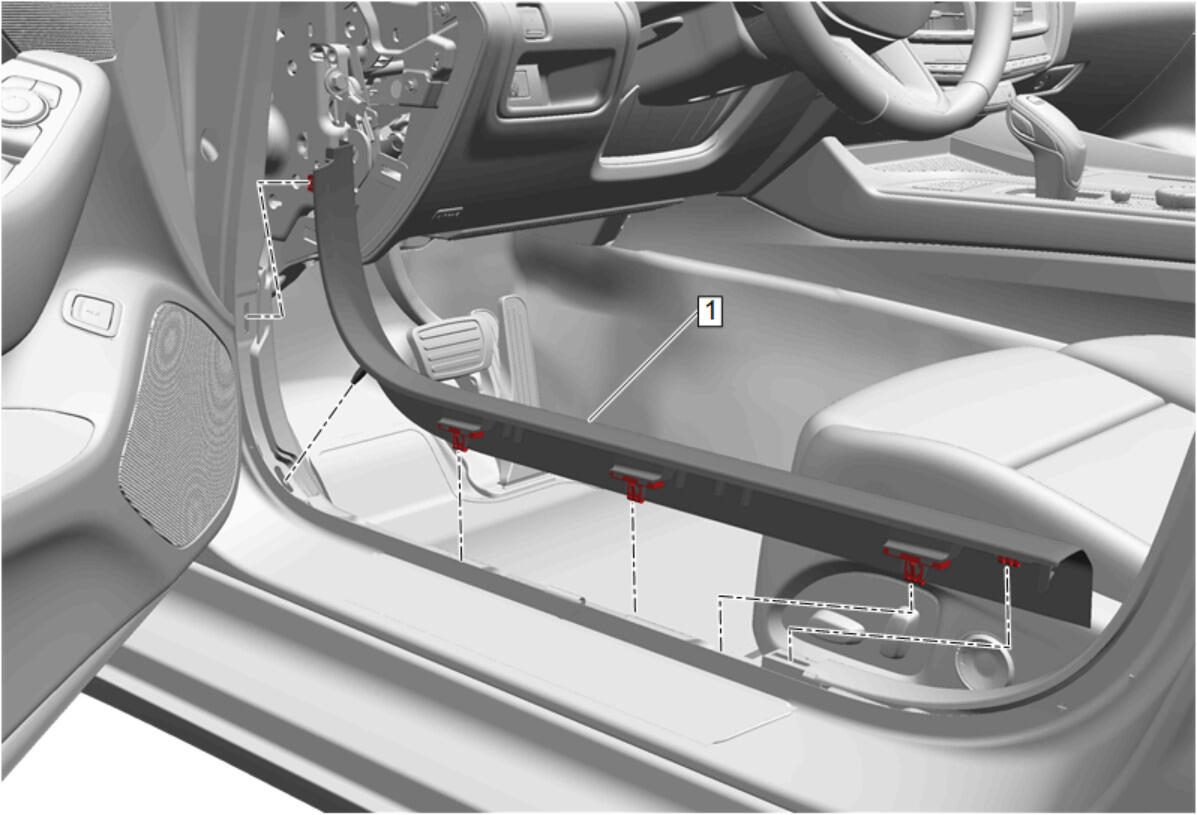

GM5294656

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Instrument Panel Outer Trim Cover Replacement

1

Front Side Door Sill Garnish Molding

Procedure

Starting at the rear of the garnish molding, pull upward at the B-Pillar joint to disengage garnish molding.
Work your way forward disengaging all of the garnish molding clips then pull rearward to disengage the clip on the forward vertical wall.
Reposition the front floor panel carpet as needed.
