Hood Hinge Replacement

Courtesy of GENERAL MOTORS COMPANY

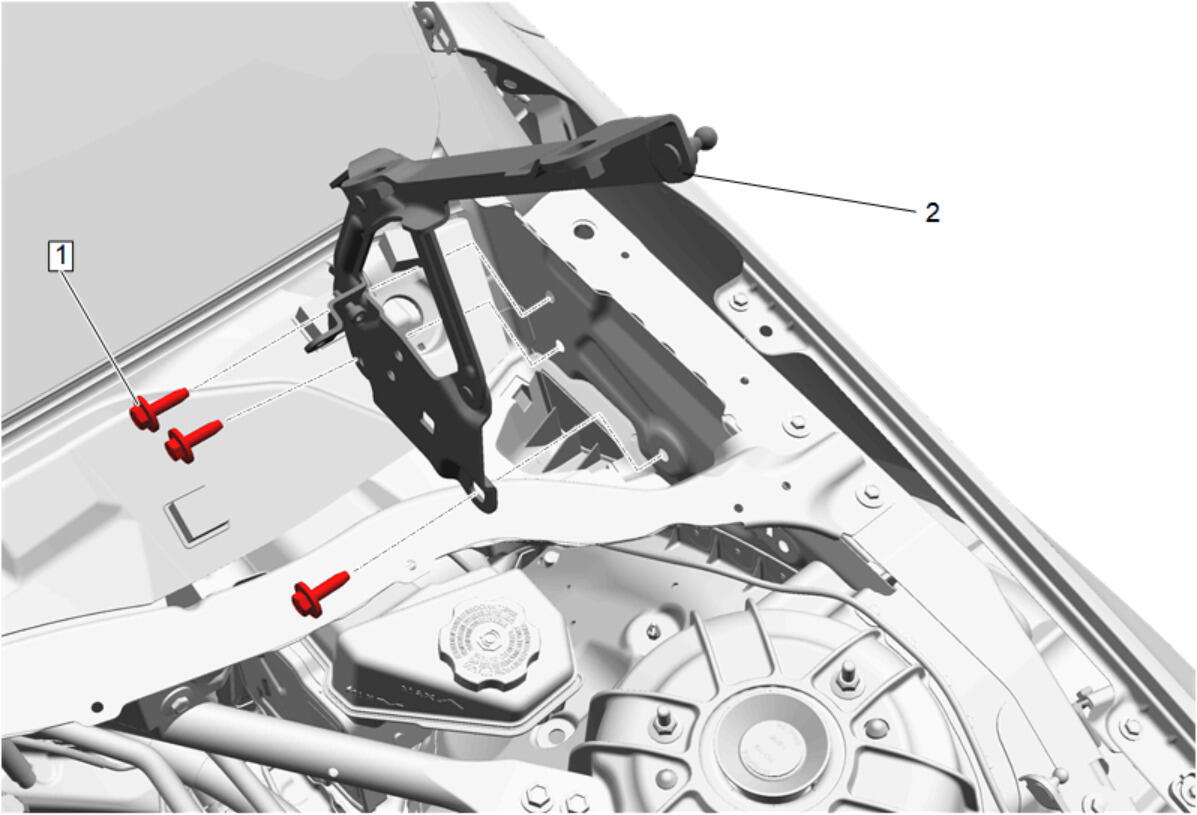

Callout	Component Name
Preliminary Procedures Hood Replacement Air Inlet Grille Panel Replacement Front Compartment Side Sight Shield Replacement
1	Hood Hinge Bolt [ 3x ] CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Hood Hinge

Callout

Component Name

Preliminary Procedures

Hood Hinge Bolt [ 3x ]

CAUTION:

Tighten
22 N.m (16 lb ft)

Hood Hinge
