Installation Procedure

  1. GM5318224Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Front Panel (1) - Install

  2. GM5318217Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Install and tighten the 3 left side upper front compartment front bolts (1). 22 N.m (16 lb ft)

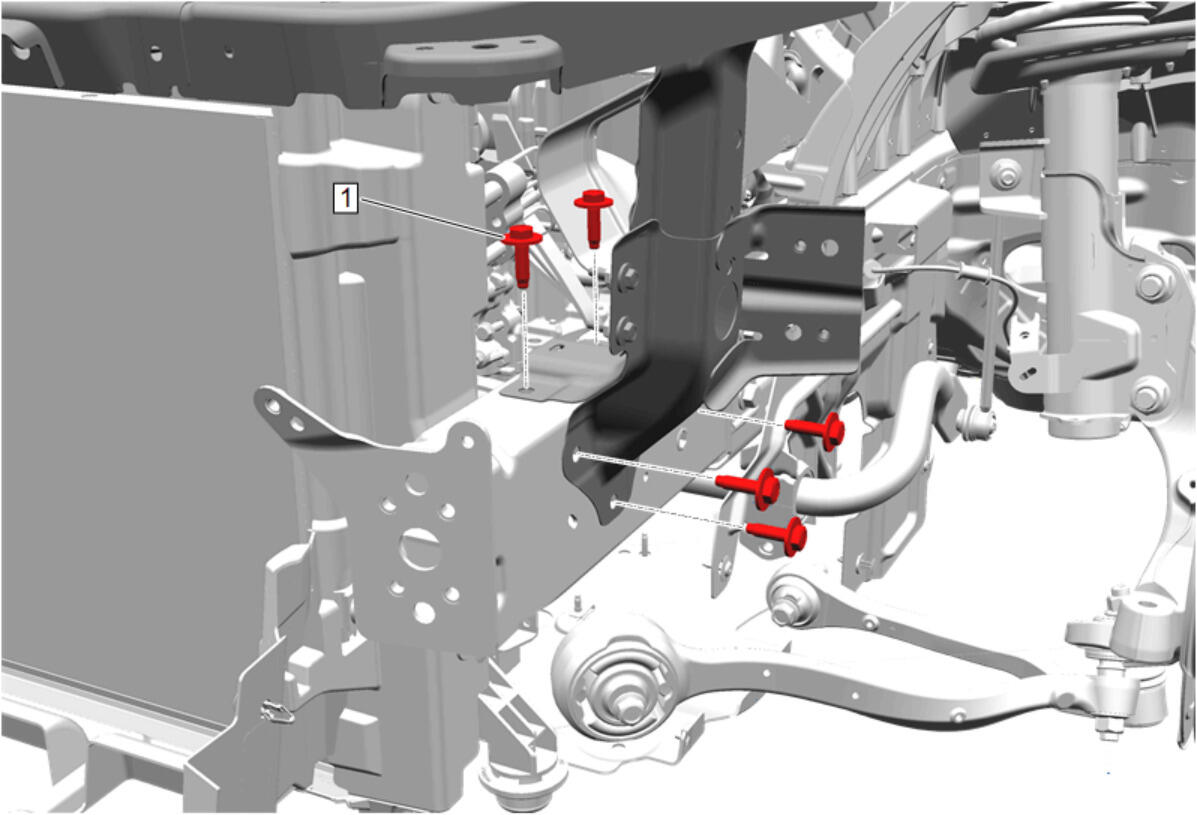

  3. GM5318219Courtesy of GENERAL MOTORS COMPANY

    Install and tighten the 5 left side lower front compartment front bolts (1). 22 N.m (16 lb ft)

  4. GM5318222Courtesy of GENERAL MOTORS COMPANY

    Install and tighten the right 3 side upper front compartment front bolts (1). 22 N.m (16 lb ft)

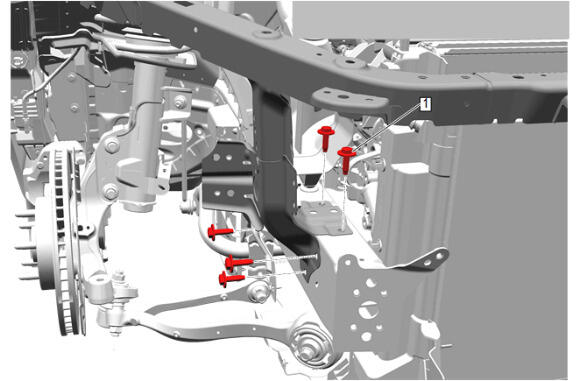

  5. GM5318223Courtesy of GENERAL MOTORS COMPANY

    Install and tighten the 5 right side lower front compartment front bolts (1). 22 N.m (16 lb ft)

  6. Position the wiring harness.
  7. Engine Wiring Harness Fuse Block Bracket - Install - Engine Wiring Harness Fuse Block Bracket Replacement

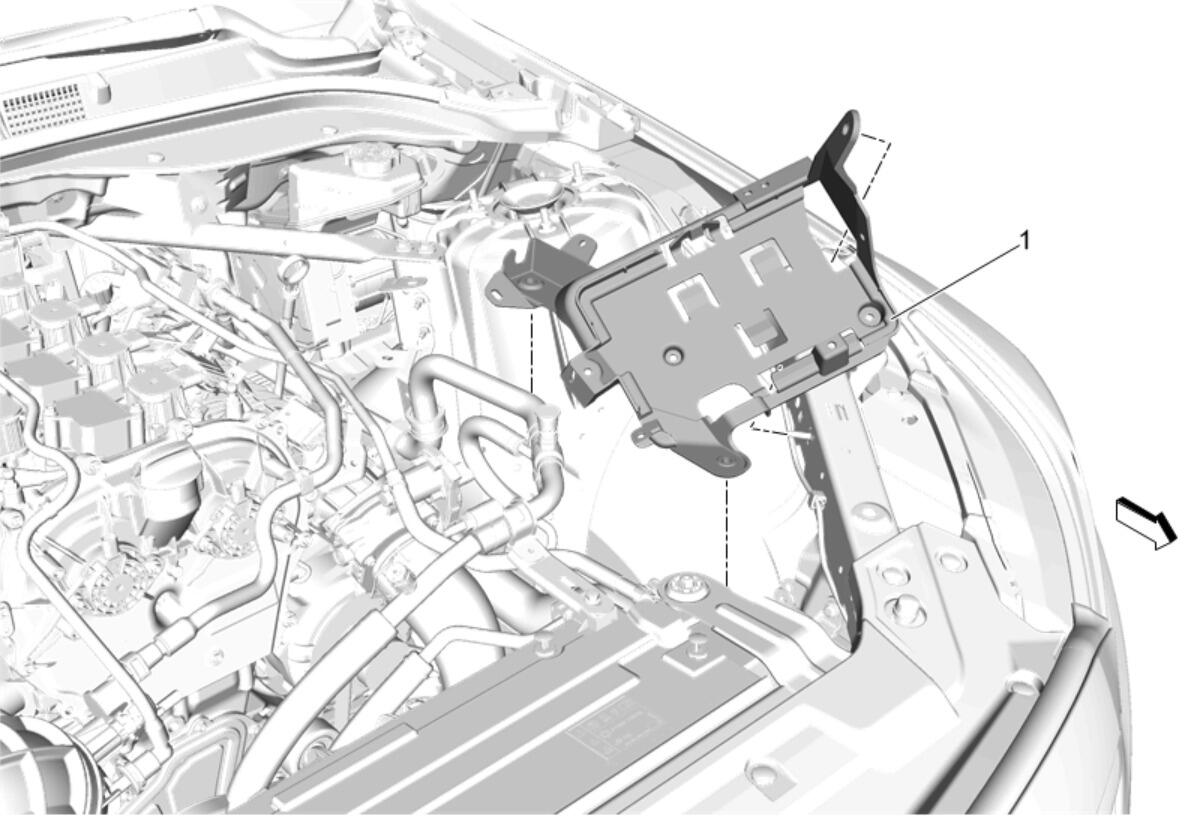

  8. GM5310572Courtesy of GENERAL MOTORS COMPANY

    Engine Control Module Bracket (1) - Install - Engine Control Module Bracket Replacement

  9. GM5300279Courtesy of GENERAL MOTORS COMPANY

    Hood Primary Latch Release Cable (1) - Install - Hood Primary Latch Release Cable Replacement

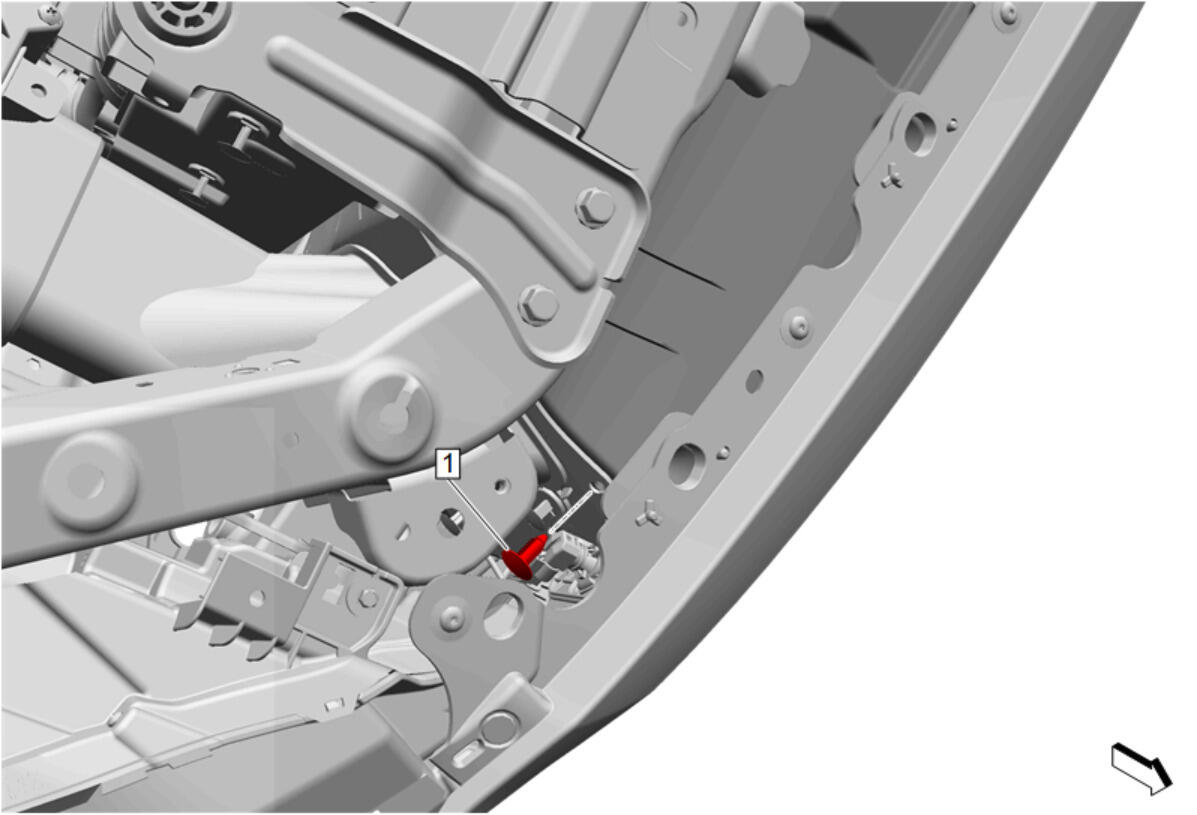

  10. GM5314549Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Front Upper Baffle (1) - Install - Radiator Air Front Upper Baffle Replacement (LGY)

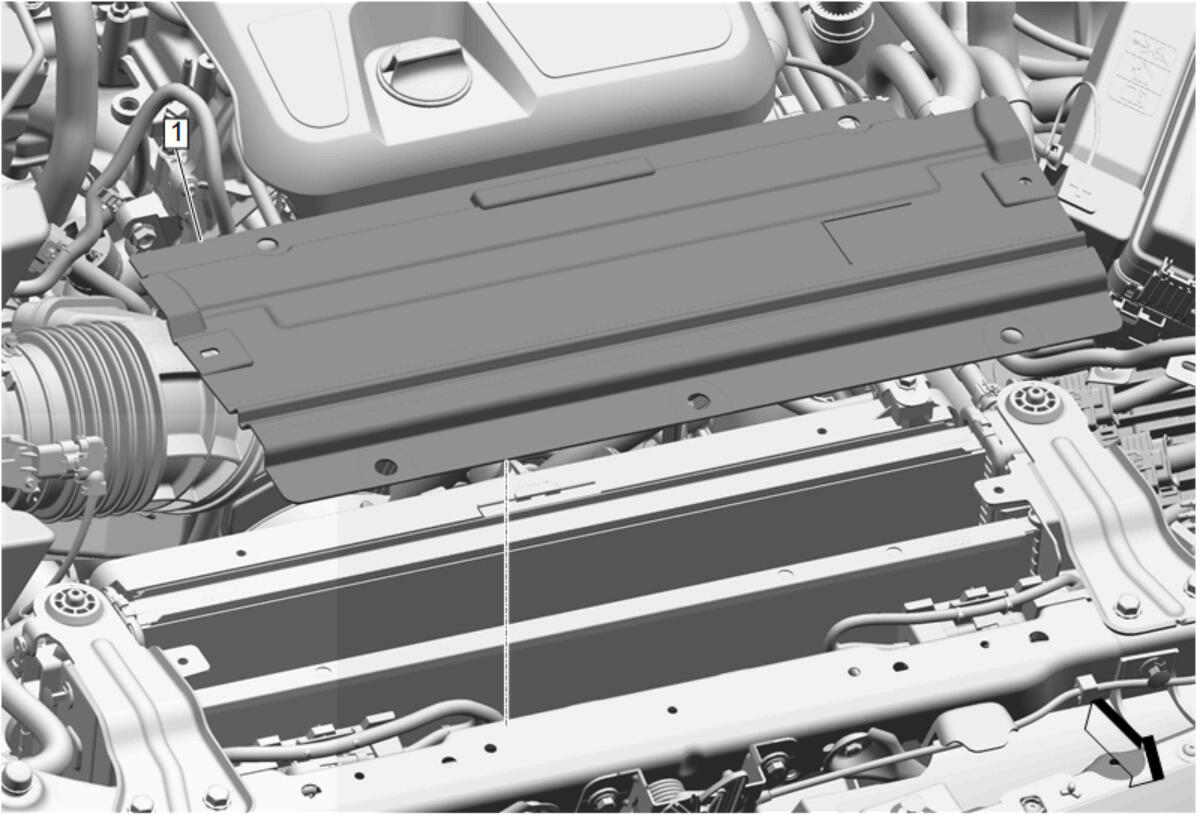

  11. GM5313359Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Upper Baffle (1) - Install - Radiator Air Upper Baffle Replacement (LGY)

  12. GM5313403Courtesy of GENERAL MOTORS COMPANY

    Radiator Upper Bracket - Left Side (2) - Install - Radiator Upper Bracket Replacement - Left Side

  13. GM5313404Courtesy of GENERAL MOTORS COMPANY

    Radiator Upper Bracket - Right Side (3) - Install - Radiator Upper Bracket Replacement - Right Side

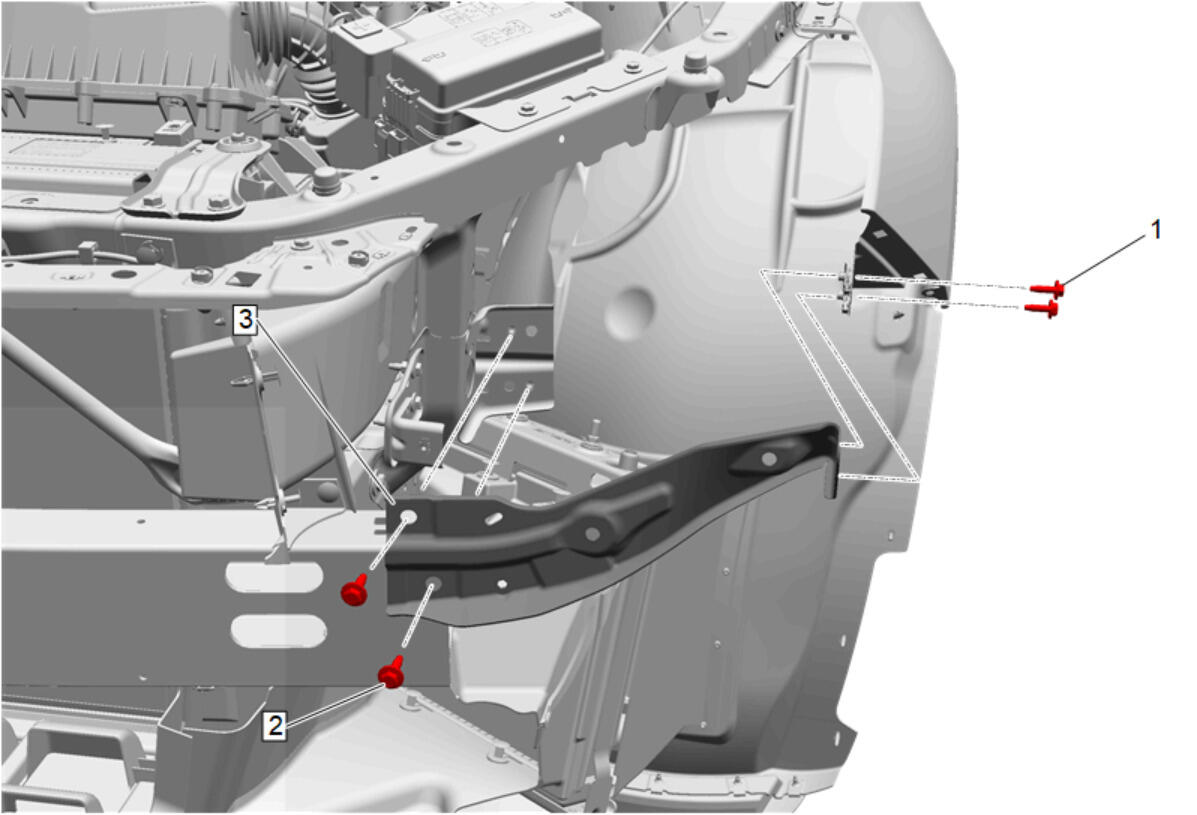

  14. GM5299866Courtesy of GENERAL MOTORS COMPANY

    Front Fender Front Brace (3) - Install - Front Fender Front Brace Replacement

  15. Intake Air Duct - Install - Intake Air Duct Replacement
  16. Install both front headlamps. Front Headlamp Replacement (With T87) , or Front Headlamp Replacement (Without T87)

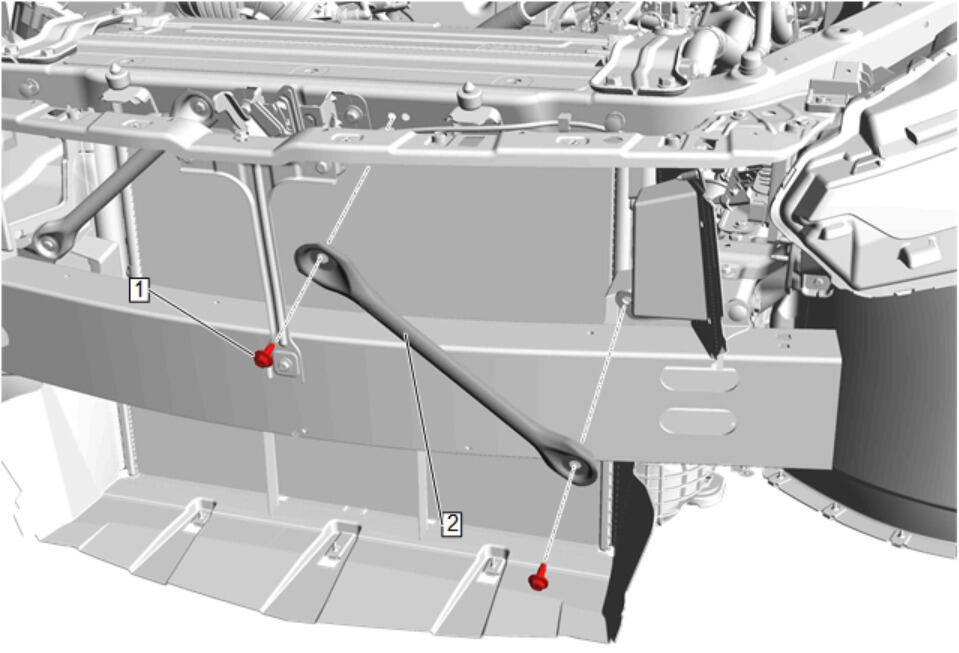

  17. GM5299630Courtesy of GENERAL MOTORS COMPANY

    Install the front end sheet metal cross brace at the plenum. Front End Sheet Metal Cross Brace Replacement (Impact Bar Bracket) , or Front End Sheet Metal Cross Brace Replacement (Plenum)

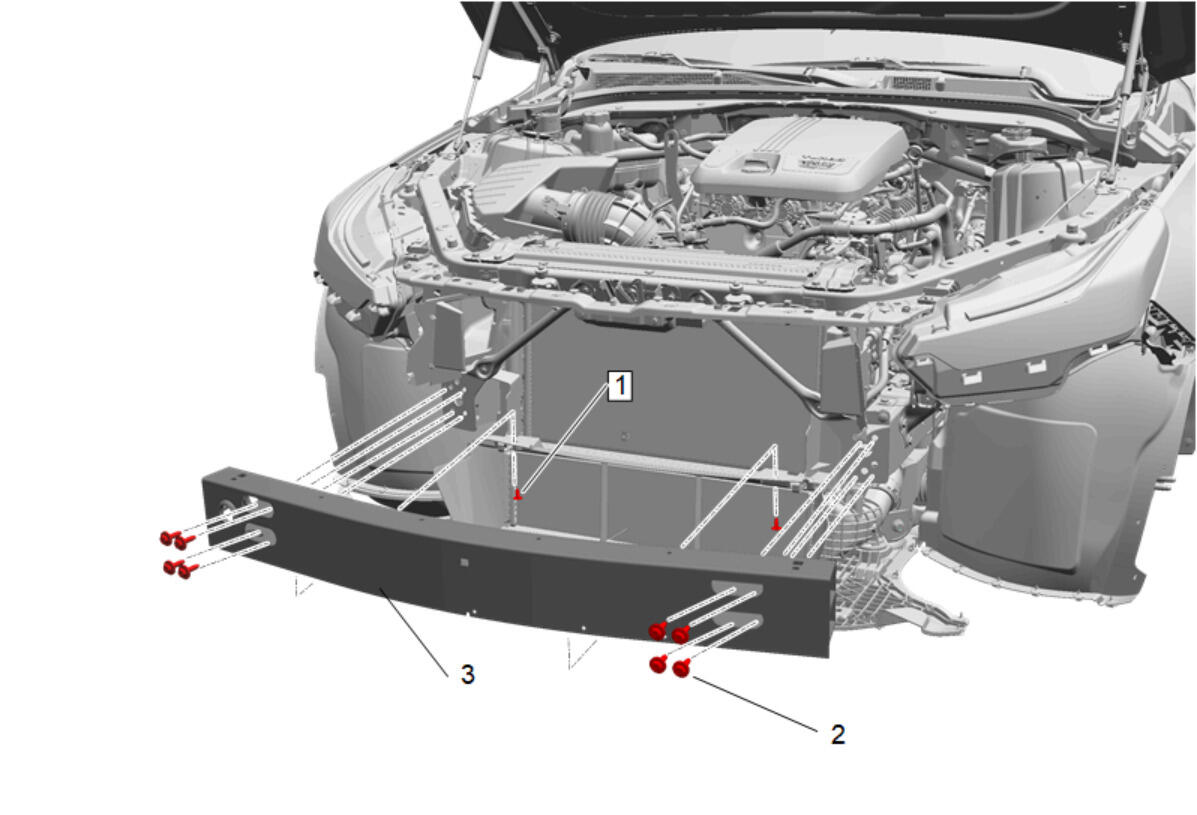

  18. GM5287230Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Impact Bar (3) - Install - Front Bumper Impact Bar Replacement (LGY)

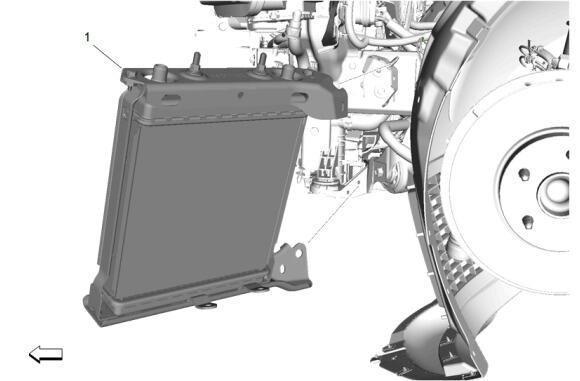

  19. GM5549625Courtesy of GENERAL MOTORS COMPANY

    Charge Air Cooler- Left Side (1) - Install - Charge Air Cooler Replacement - Left Side (LGY)

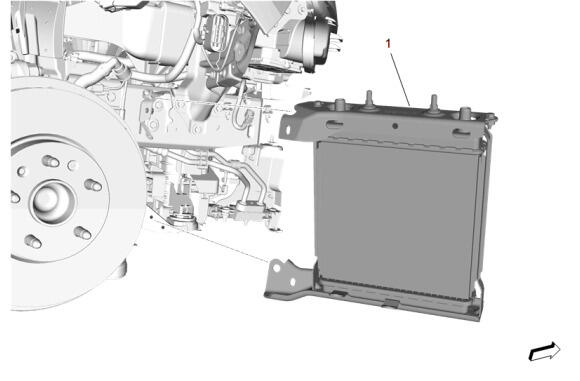

  20. GM5541460Courtesy of GENERAL MOTORS COMPANY

    Charge Air Cooler- Right Side (1) - Install - Charge Air Cooler Replacement - Right Side (LGY)

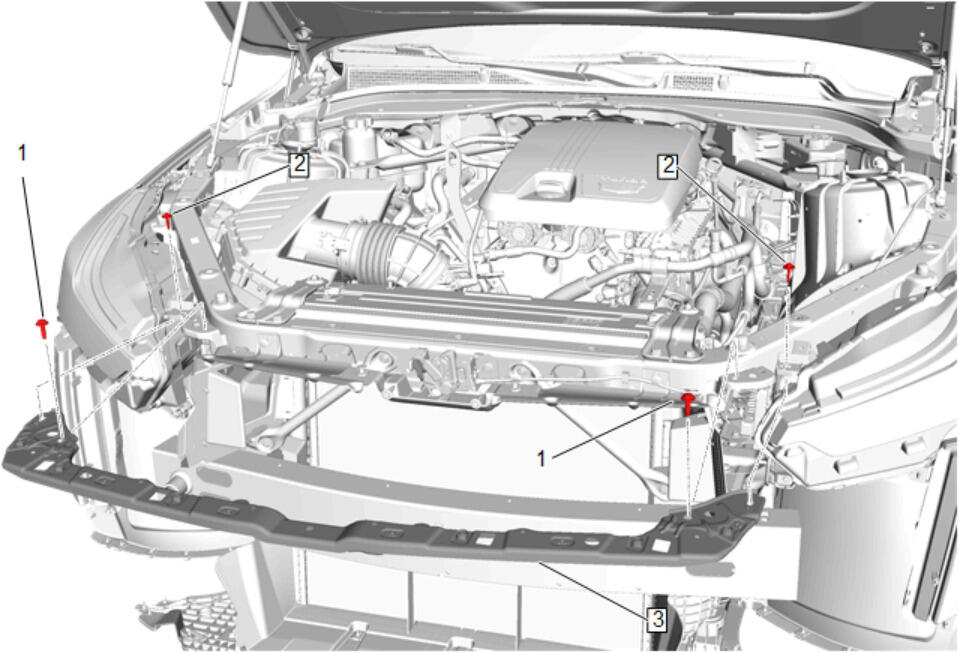

  21. GM5286315Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia Center Support (3) - Install - Front Bumper Fascia Center Support Replacement

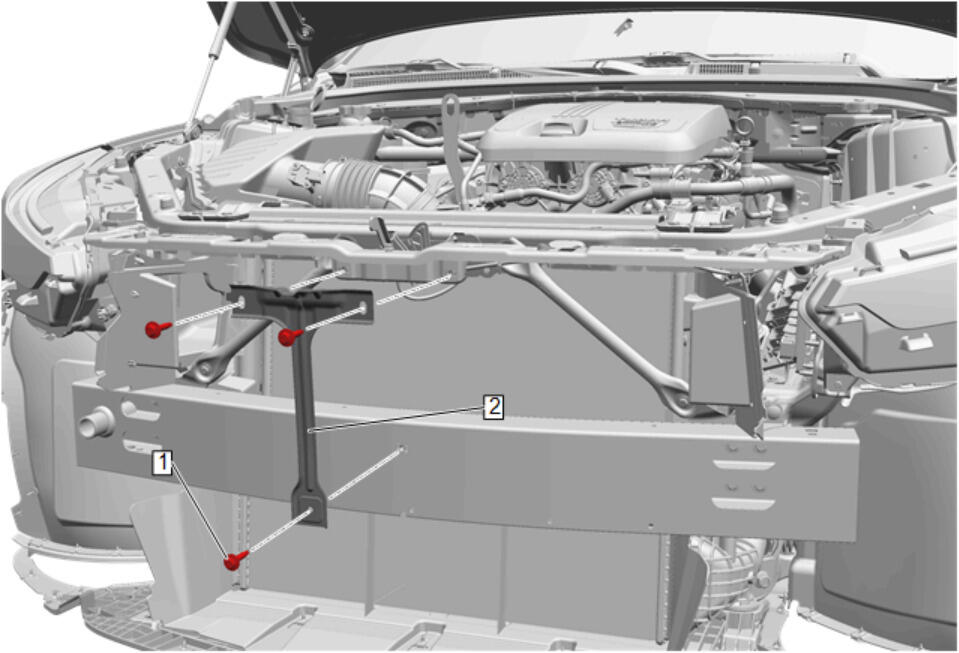

  22. GM5285908Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia Support Brace (2) - Install - Front Bumper Fascia Support Brace Replacement (Without Radar) , or Front Bumper Fascia Support Brace Replacement (With Radar)

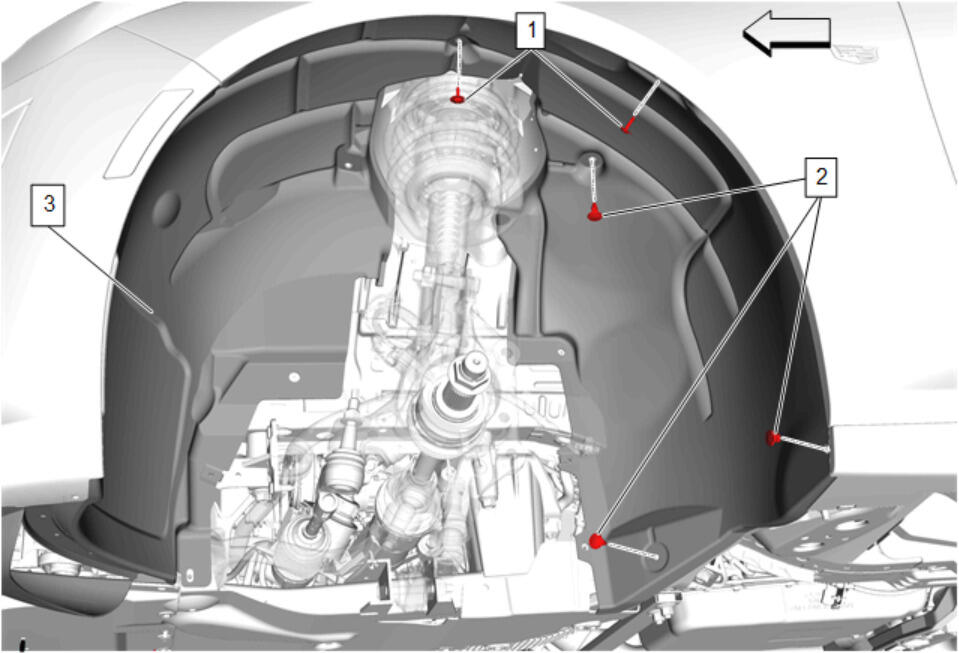

  23. GM5312788Courtesy of GENERAL MOTORS COMPANY

    Install the left and right side front wheelhouse panels (3). Front Wheelhouse Liner Replacement

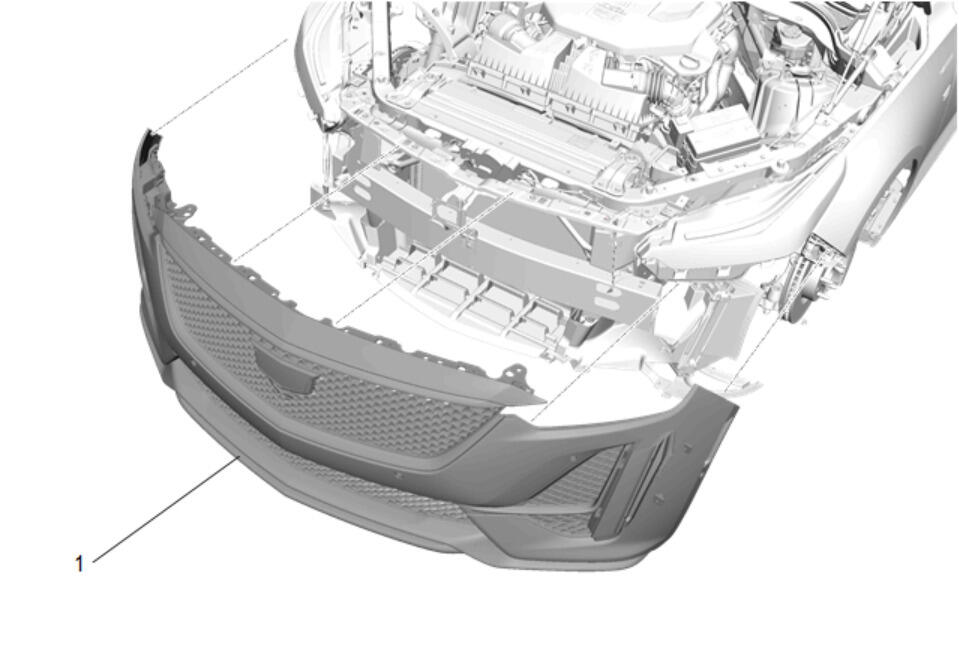

  24. GM5285217Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia (1) - Install - Front Bumper Fascia Replacement

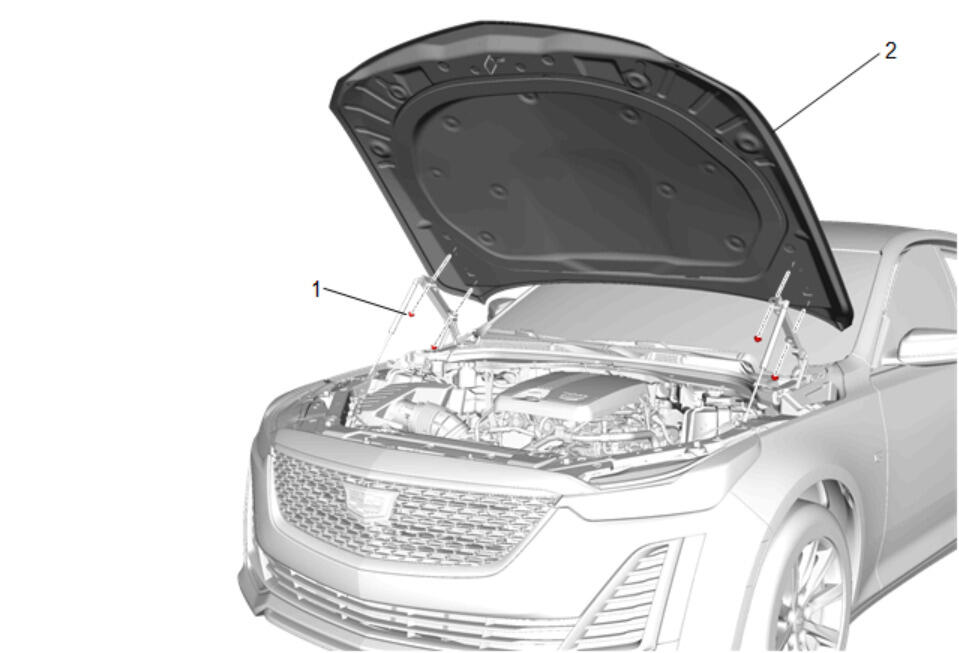

  25. GM5300389Courtesy of GENERAL MOTORS COMPANY

    Hood (2) - Install - Hood Replacement
