Front Bumper Fascia Support Brace Replacement (With Radar)

Courtesy of GENERAL MOTORS COMPANY

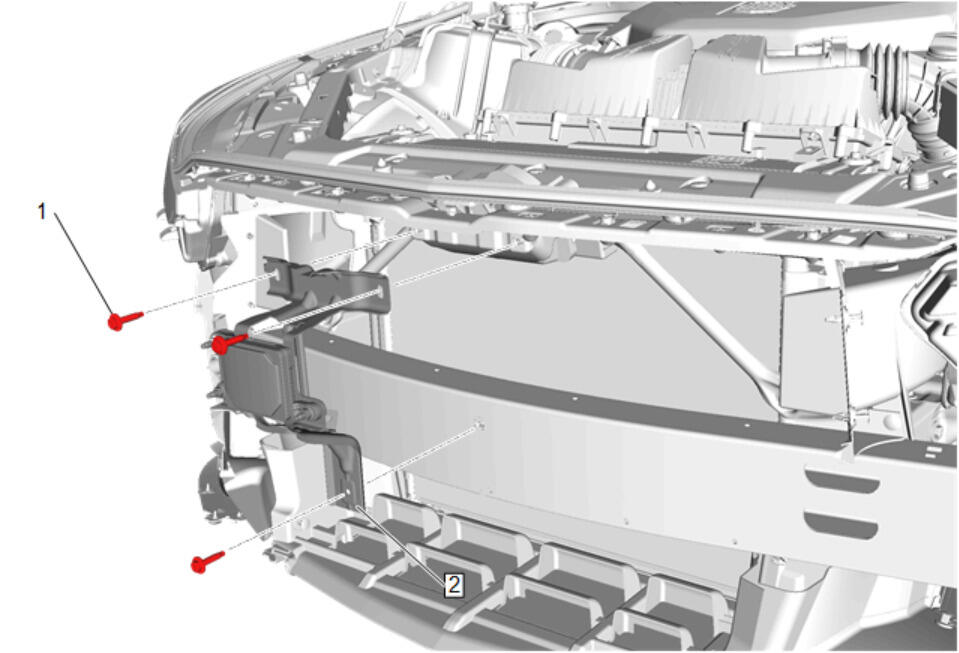

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Replacement
1	Front Bumper Fascia Support Brace Bolt [3x] CAUTION: Fastener Caution Tighten 9 N.m (80 lb in)
2	Front Bumper Fascia Support Brace Procedure Disconnect the electrical connector. Transfer components as necessary.

Callout

Component Name

Front Bumper Fascia Support Brace Bolt [3x]

CAUTION:

Tighten
9 N.m (80 lb in)

Front Bumper Fascia Support Brace

Procedure
