Hood Rear Outer Air Inlet Seal Replacement

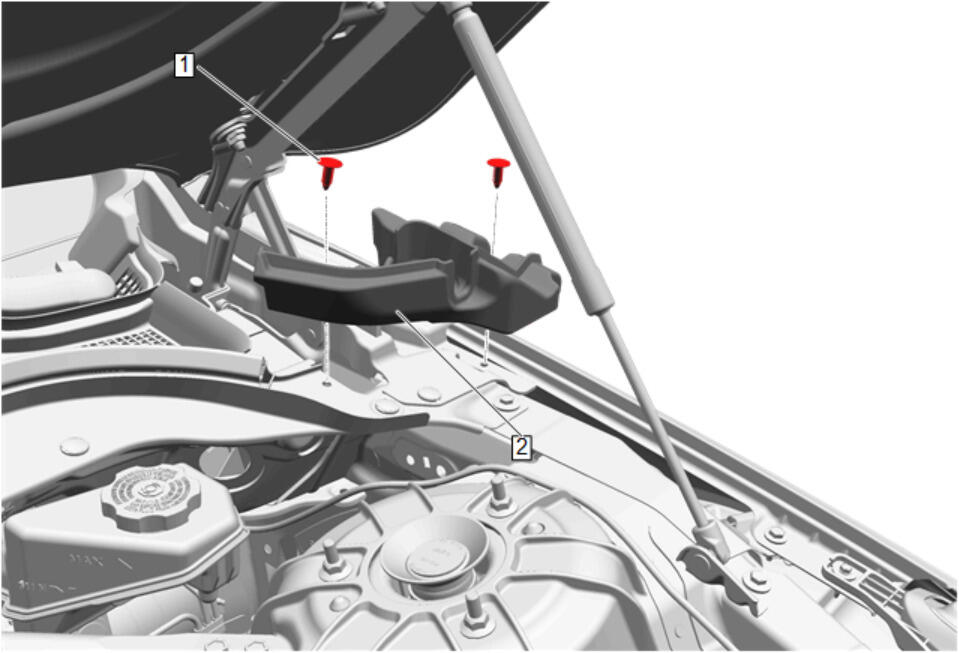

GM5300574Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Hood Rear Outer Air Inlet Seal Retainer [ 2x ]
2 Hood Rear Outer Air Inlet Seal
Procedure
Using a trim type tool, release the retainer and gentle pull up on the seal to remove.
