Crankshaft Position Sensor Replacement

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

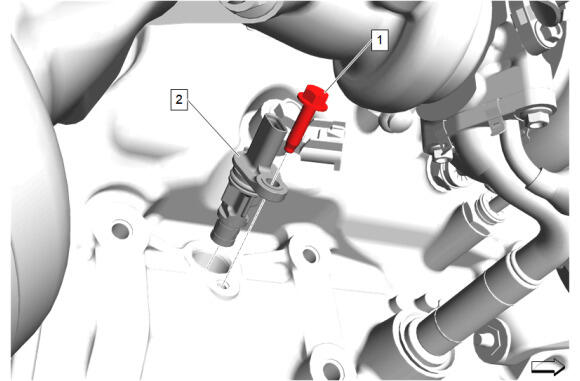

Callout	Component Name
Preliminary Procedure Engine Mount Bracket Replacement - Right Side (AWD) , or Engine Mount Bracket Replacement - Right Side (RWD)
1	Crankshaft Position Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb/in)
2	Crankshaft Position Sensor Procedure Disconnect the electrical connector. Lubricate the O-ring seal with clean engine oil. Perform the crankshaft position variation learn. Crankshaft Position Variation Learn

Callout

Component Name

Crankshaft Position Sensor Bolt

CAUTION:

Tighten
10 N.m (89 lb/in)

Crankshaft Position Sensor

Procedure

Disconnect the electrical connector.
Lubricate the O-ring seal with clean engine oil.
Perform the crankshaft position variation learn. Crankshaft Position Variation Learn
