Engine Mount Bracket Replacement - Right Side (AWD)
WARNING: This page is about a different variant/trim than selected.

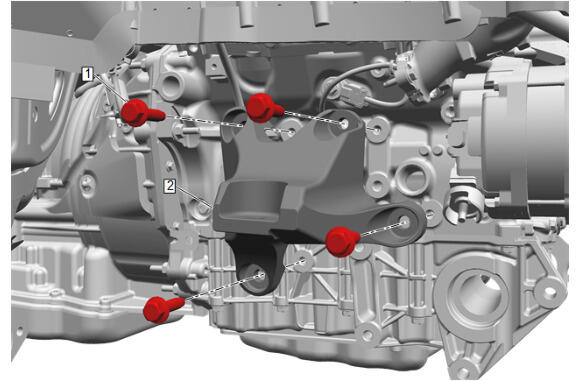

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Differential Carrier Assembly Replacement |
|
| 1 | Engine Mount Bracket Bolt [ 4x ]
CAUTION:
Refer to Torque-to-Yield Fastener Caution .
CAUTION:
Refer to Fastener Caution . Procedure Remove and DISCARD the bolts. Tighten
|
| 2 | Engine Mount Bracket
NOTE:
Engine mount brackets are magnesium. To prevent galvanic corrosion, the bracket includes pressed on spacers on the back side. Even though it is highly unlikely, the pressed on spacers may loosen and fall off during engine mount bracket removal. Ensure the spacers are in place before reinstalling an existing bracket. |
