Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. GM5522016Courtesy of GENERAL MOTORS COMPANY

    Engine Mount Bracket-Right Side (2) - Remove - Engine Mount Bracket Replacement - Right Side (AWD) , or Engine Mount Bracket Replacement - Right Side (RWD)

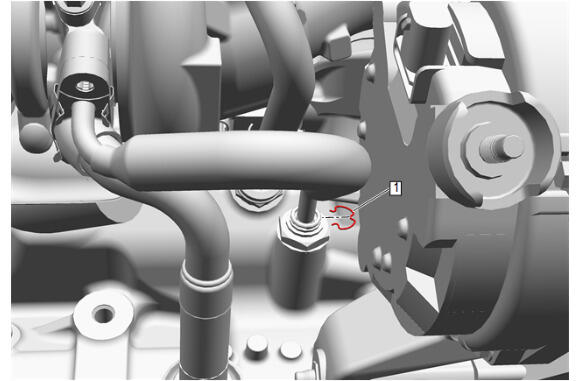

  2. GM5525923Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Oil Feed Pipe Fitting (1) - Remove

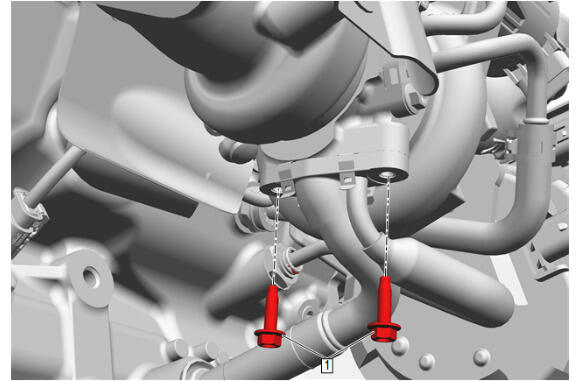

  3. GM5525922Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Oil Feed Pipe Bolt - Remove [ 2x ]

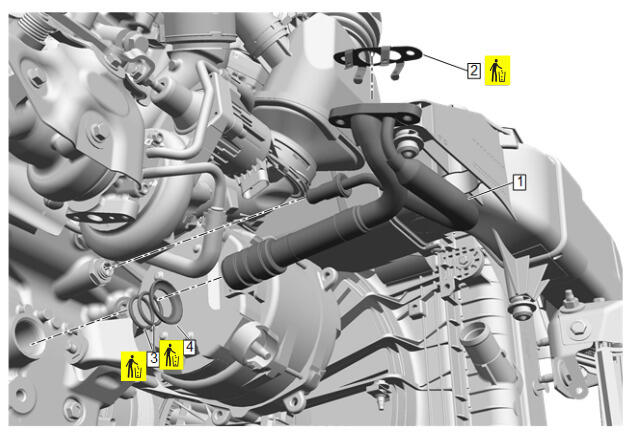

  4. GM5525925Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Oil Feed Pipe (1) - Remove

  5. Turbocharger Oil Feed Pipe Gasket (2) - Remove and DISCARD
  6. Turbocharger Oil Return Pipe Seal (3) - Remove and DISCARD [ 2x ]
  7. Turbocharger Tube Seal (4) - Remove and DISCARD
