Engine Oil Pressure Sensor Replacement

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Turbocharger Air Inlet Adapter Replacement - Bank 2 Disconnect electrical connector.

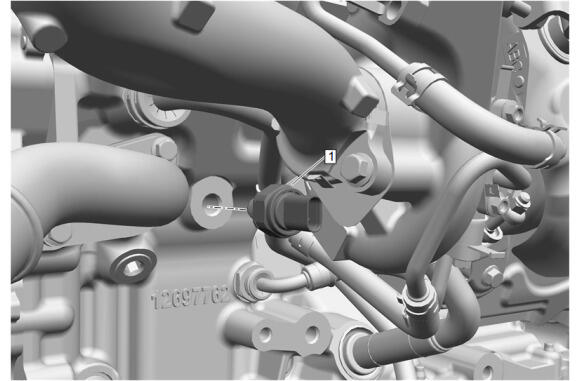

1	Engine Oil Pressure Sensor CAUTION: Refer to Component Fastener Tightening Caution . Tighten 20 N.m (15 lb-ft) Special Tools EN-41712 Oil Pressure Switch Socket Equivalent regional tools: Special Tools

Callout

Component Name

Preliminary Procedures

Engine Oil Pressure Sensor

CAUTION:

Tighten
20 N.m (15 lb-ft)
Special Tools
EN-41712 Oil Pressure Switch Socket
Equivalent regional tools: Special Tools
