Installation Procedure

WARNING: This page is about a different variant/trim than selected.

CAUTION:

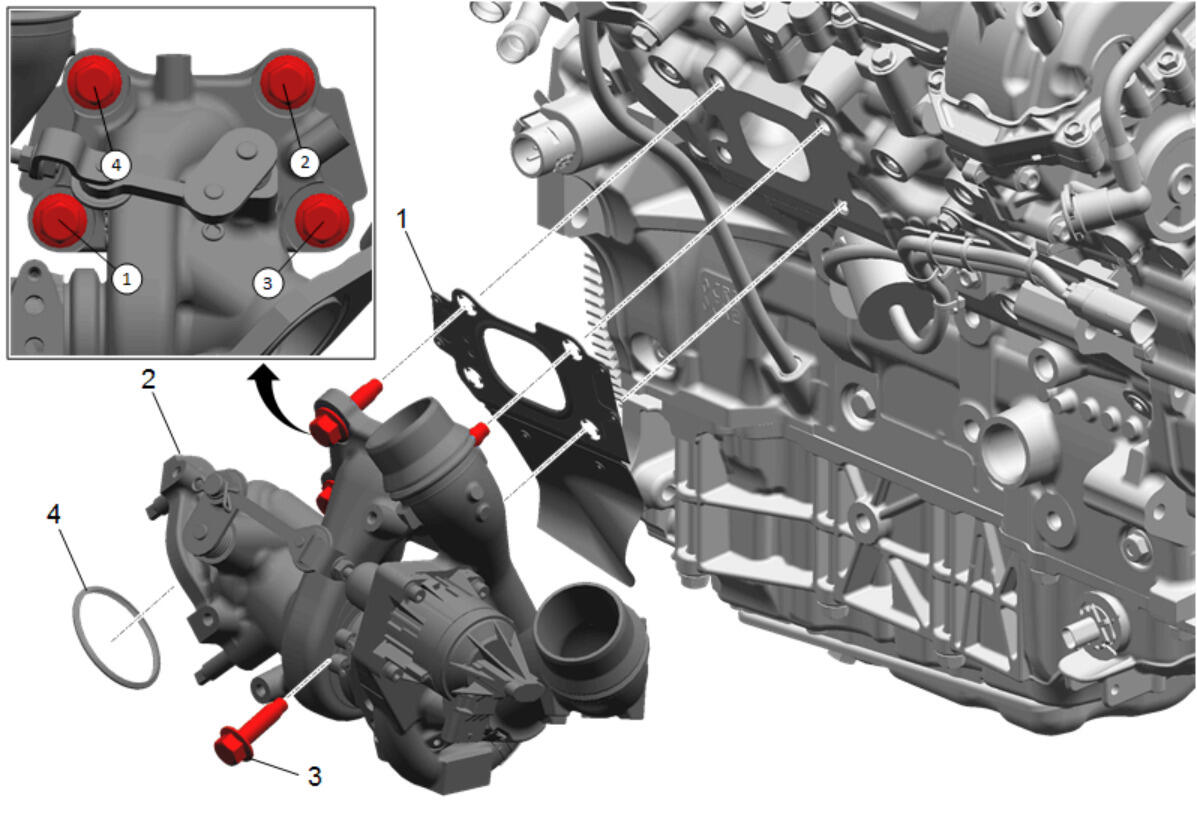

Turbocharger Bolt (3) - Install and tighten in sequence [ 4x ] 58 N.m (43 lb-ft)
Turbocharger Oil Feed Pipe - Right Side @ Turbocharger - Connect - Turbocharger Oil Feed Pipe Replacement - Right Side
Courtesy of GENERAL MOTORS COMPANY

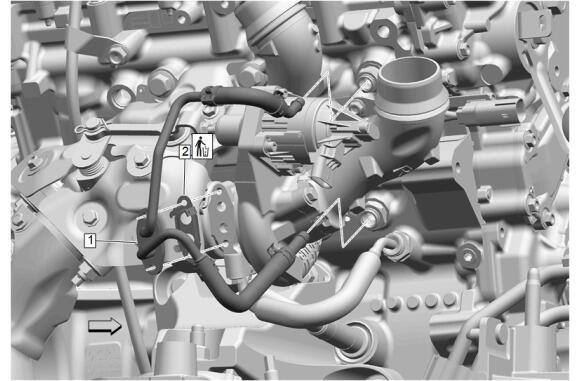

Turbocharger Coolant Feed and Return Pipe-Right Side (1) - Install - Turbocharger Coolant Feed and Return Pipe Replacement - Right Side (LGY)
Courtesy of GENERAL MOTORS COMPANY

Install the right side lower turbocharger heat shield (3). Turbocharger Heat Shield Replacement - Right Side Lower (LGY)
Courtesy of GENERAL MOTORS COMPANY

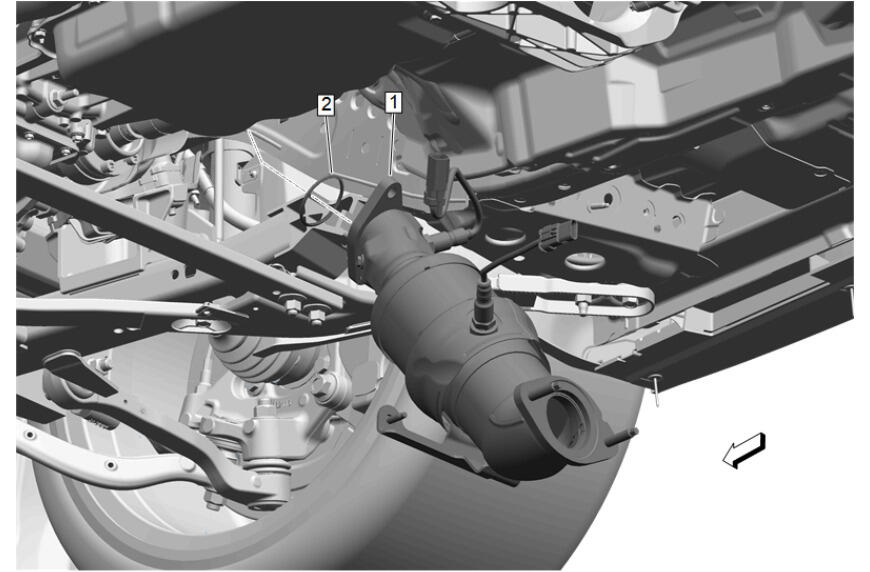

Warm Up Three-Way Catalytic Converter - Right Side (1) - Install - Warm Up Three-Way Catalytic Converter Replacement - Right Side
Courtesy of GENERAL MOTORS COMPANY

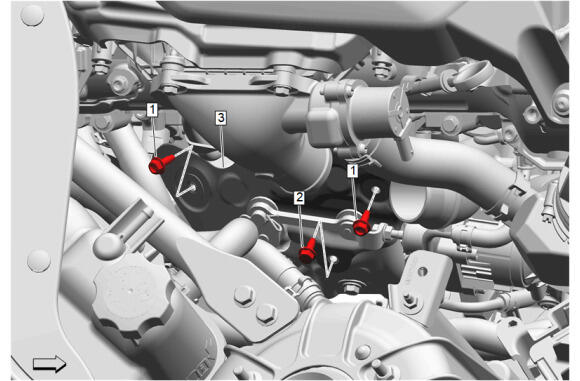

Engine Mount Bracket-Right Side (2) - Install - Engine Mount Bracket Replacement - Right Side (AWD) , or Engine Mount Bracket Replacement - Right Side (RWD)
Courtesy of GENERAL MOTORS COMPANY

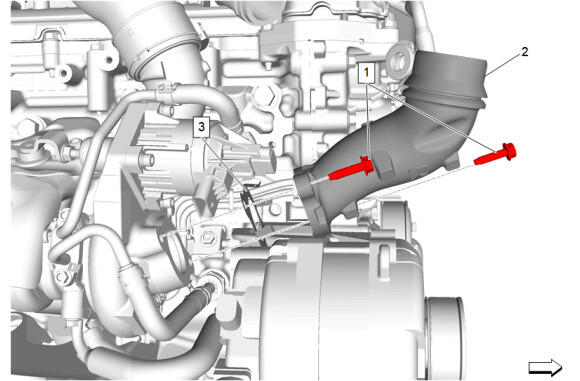

Turbocharger Air Inlet Adapter-Bank 1 (2) - Install - Turbocharger Air Inlet Adapter Replacement - Bank 1
