Installation Procedure

WARNING: This page is about a different variant/trim than selected.

CAUTION:

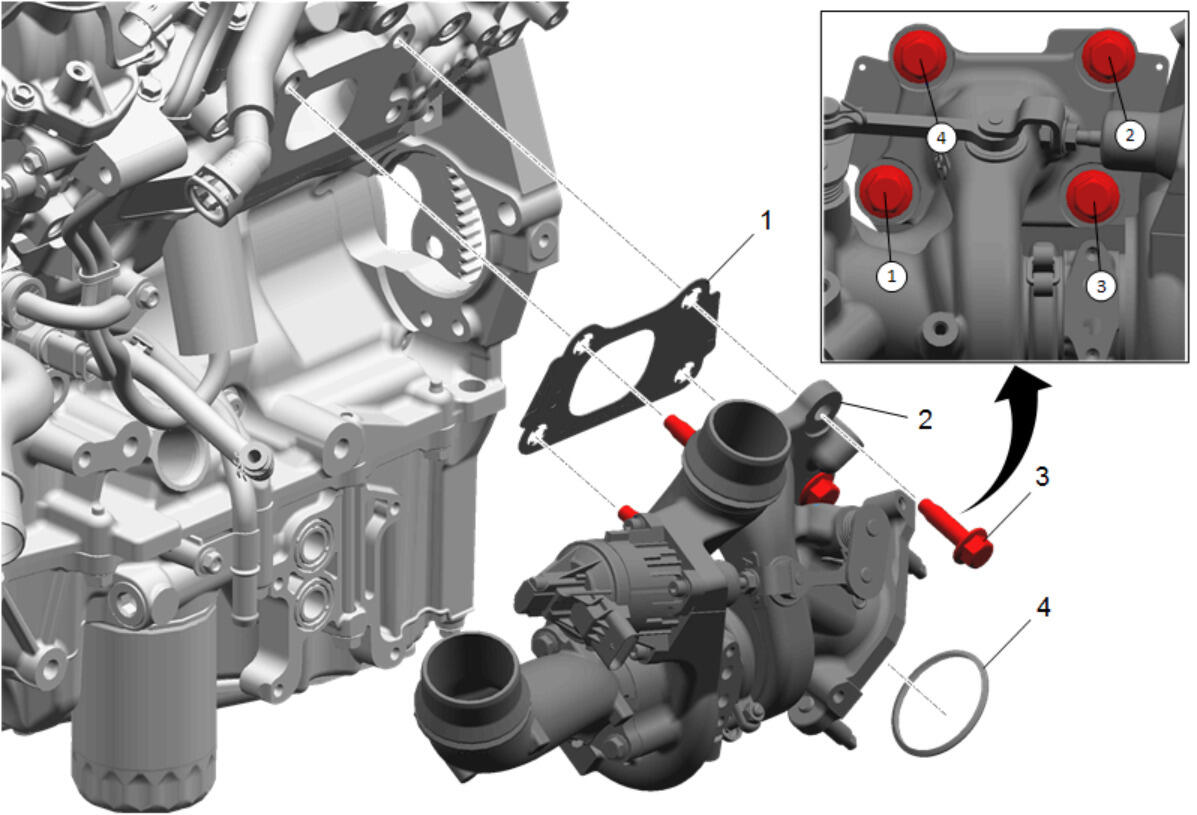

Turbocharger Bolt (3) - Install and tighten in sequence [ 4x ] 58 N.m (43 lb-ft)

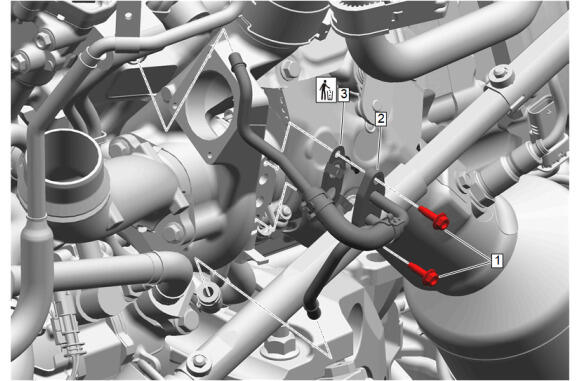

Turbocharger Oil Feed Pipe - Left Side @ Turbocharger - Connect - Turbocharger Oil Feed Pipe Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

Turbocharger Coolant Feed and Return Pipe-Left Side (2) - Install - Turbocharger Coolant Feed and Return Pipe Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

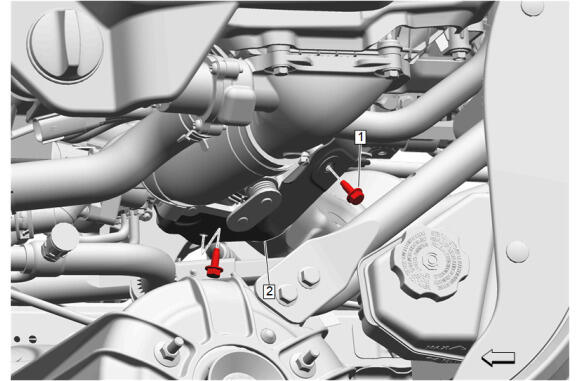

Install the left side lower turbocharger heat shield (2). Turbocharger Heat Shield Replacement - Left Side Lower (LGY)
Courtesy of GENERAL MOTORS COMPANY

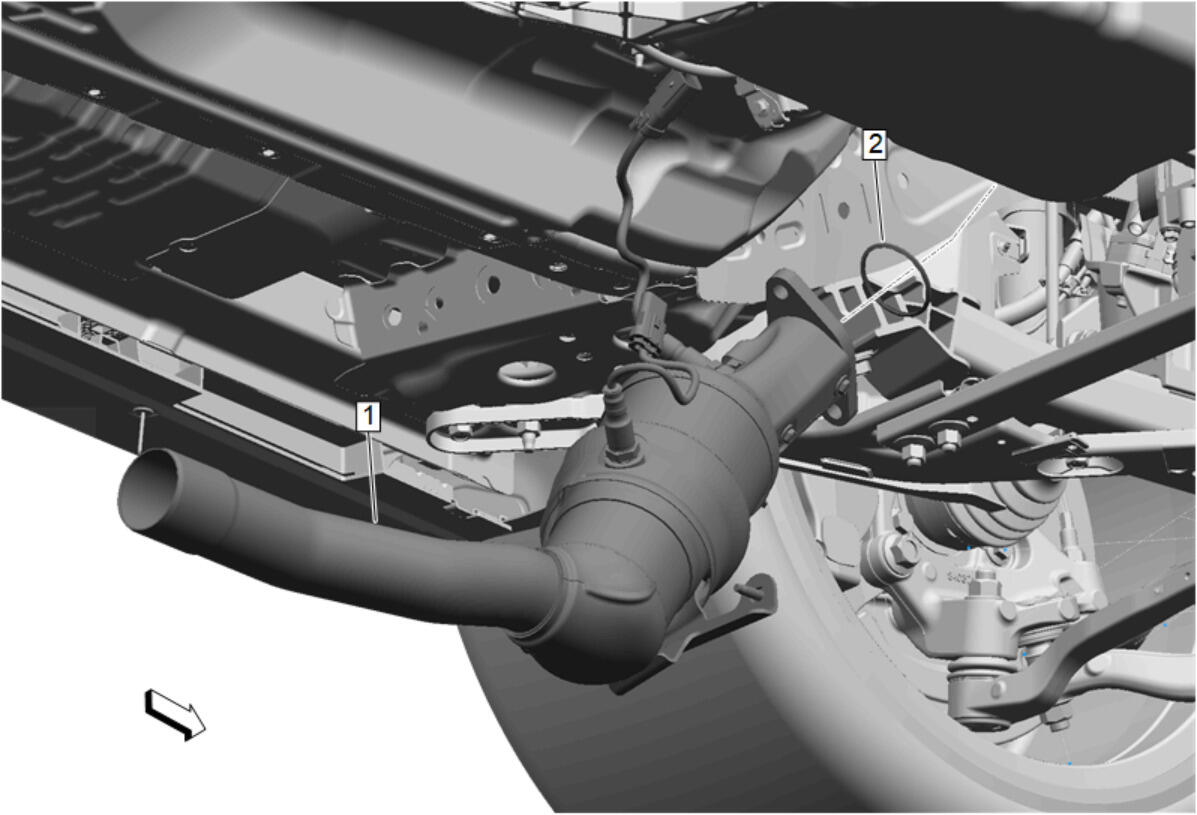

Warm Up Three-Way Catalytic Converter - Left Side (1) - Install - Warm Up Three-Way Catalytic Converter Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

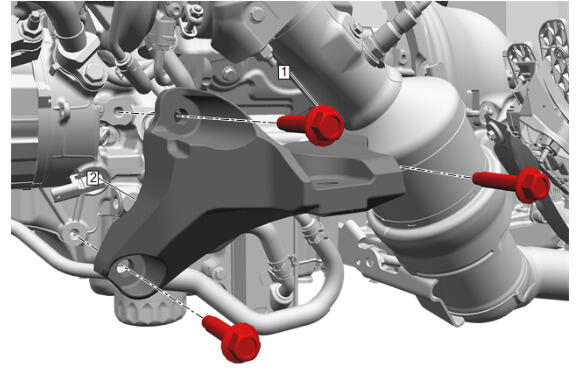

Engine Mount Bracket-Left Side (2) - Install - Engine Mount Bracket Replacement - Left Side (AWD) , or Engine Mount Bracket Replacement - Left Side (RWD)
Courtesy of GENERAL MOTORS COMPANY

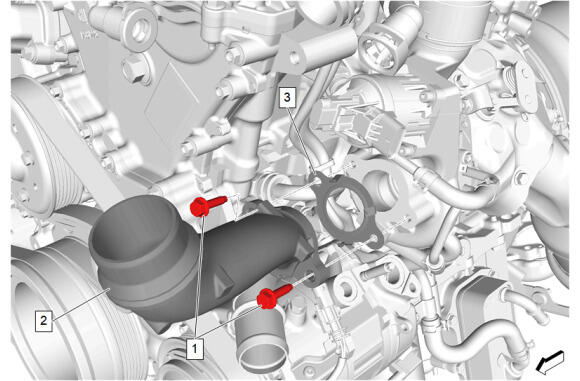

Turbocharger Air Inlet Adapter-Bank 2 (2) - Install - Turbocharger Air Inlet Adapter Replacement - Bank 2
