Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Support the transmission with a suitable jack.
  2. GM5536478Courtesy of GENERAL MOTORS COMPANY

    Remove the J-21366  strap (1) from the transmission bell housing.

  3. GM5522056Courtesy of GENERAL MOTORS COMPANY

    Install the transmission. (1)

  4. GM5522047Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Transmission Bolt (1) - Install and tighten [3x] - Fastener Specifications

  5. Transmission Stud (1) - Install and tighten [2x] - Fastener Specifications
  6. GM5523009Courtesy of GENERAL MOTORS COMPANY

    Transmission Stud (1) - Install and tighten - Fastener Specifications

  7. GM5522052Courtesy of GENERAL MOTORS COMPANY

    Transmission Bolt (1) - Install and tighten [3x] - Fastener Specifications

  8. Transmission Stud (1) - Install and tighten [2x] - Fastener Specifications
  9. Connect the transmission vent hose from the engine.
  10. GM5522054Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector. (1)

  11. Install the 5 retainers (2).
  12. GM5342773Courtesy of GENERAL MOTORS COMPANY

    Prepare the transmission torque converter bolts (1) for installation as follows:

    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
    13. NOTE:

    For proper alignment of all torque converter bolts, install the first torque converted bolt in the oval shaped hole.

    NOTE:

    Rotate the harmonic balancer center bolt clockwise ONLY, to align the torque converter bolt with the starter opening.

  13. Transmission Torque Converter Bolt (1) - Install and tighten [6x] - Fastener Specifications
  14. GM5417288Courtesy of GENERAL MOTORS COMPANY

    Auxiliary Generator Battery Jumper Cable (2) - Install

  15. Battery Positive Cable Nut (1) @ Starter Solenoid - Install and tighten - Fastener Specifications
  16. Electrical Connector (4) - Connect
  17. Starter (3) - Install
  18. GM5417249Courtesy of GENERAL MOTORS COMPANY

    Starter Bolt (2) - Install and tighten [2x] - Fastener Specifications

  19. Starter Stud (1) - Install and tighten - Fastener Specifications
  20. GM5417233Courtesy of GENERAL MOTORS COMPANY

    Auxiliary Generator Battery Jumper Cable - Install

  21. Auxiliary Generator Battery Jumper Cable Terminal Nut (1) - Install and tighten - Fastener Specifications
  22. Retainer (3) - Engage
  23. GM5396466Courtesy of GENERAL MOTORS COMPANY

    Engine Oil Cooler Seal (2) - Install NEW [2x]

  24. Engine Oil Cooler (1) - Install
  25. GM5396459Courtesy of GENERAL MOTORS COMPANY

    Engine Oil Cooler Bolt (1) - Install and tighten [4x] - Fastener Specifications

  26. GM5396452Courtesy of GENERAL MOTORS COMPANY

    Engine Oil Cooler Coolant Inlet Hose (3) @ Engine Oil Cooler - Install

  27. Engine Oil Cooler Coolant Outlet Hose (2) @ Engine Oil Cooler - Install
  28. Hose Clamp (1) - Engage [2x] - Hose Clamp Replacement Guidelines - Spring Type
  29. GM5334765Courtesy of GENERAL MOTORS COMPANY

    Apply a thin layer of grease to the transmission output shaft splines (1). Adhesives, Fluids, Lubricants, and Sealers

  30. Loosely install a NEW propeller shaft hub clamp (3) to the propeller shaft joint boot.
  31. Support and secure the propeller shaft (2) to a suitable hydraulic jack stand.
  32. Propeller Shaft (2) - Install
  33. GM5317838Courtesy of GENERAL MOTORS COMPANY

    Prepare the 2 propeller shaft bearing support bolts (1) for installation as follows:

    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
  34. Propeller Shaft Bearing Support Bolt (1) - Install and tighten [2x] - Fastener Specifications
  35. Remove the hydraulic jack stand supporting the propeller shaft.
  36. GM5317835Courtesy of GENERAL MOTORS COMPANY

    Prepare the 3 rear propeller shaft bolts (1) and nuts (3) for installation as follows:

    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
  37. Align the relationship marks (2) made on the propeller shaft and the rear differential flange.
  38. Rear Propeller Shaft Bolt (1) - Install [3x]
  39. Rear Propeller Shaft Nut (3) - Loosely install [3x]
  40. Rear Propeller Shaft Bolt (1) - Tighten [3x] - Fastener Specifications
  41. GM5317844Courtesy of GENERAL MOTORS COMPANY
  42. Ensure that the drive shaft boot is completely seated in the output shaft groove prior to crimping the propeller shaft hub clamp (2).
  43. Using the DT-35910  Drive Axle Seal Clamp Pliers (1), crimp the propeller shaft hub clamp (2) until the final crimped outer diameter (a) is 39 - 41 mm (1.54 - 1.61 in).

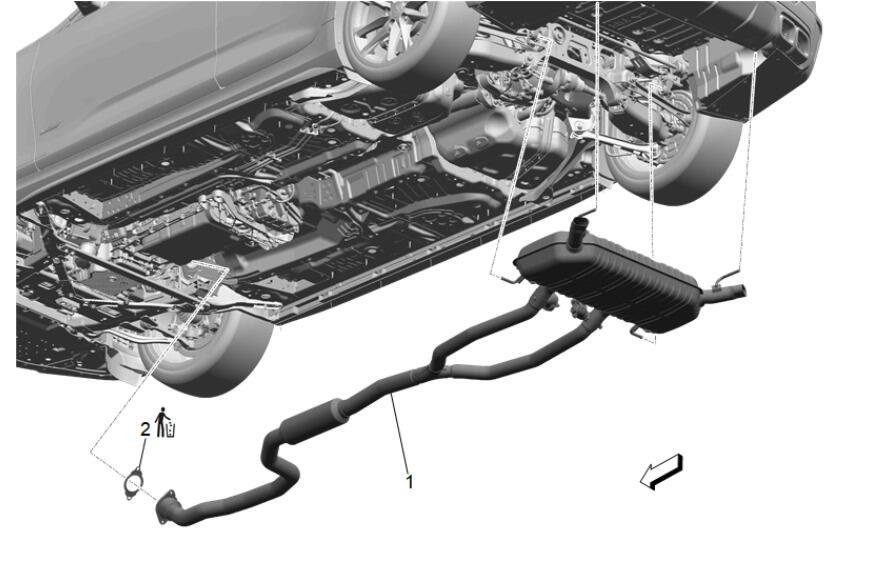

  44. GM5394598Courtesy of GENERAL MOTORS COMPANY

    Catalytic Converter Gasket (2) - Install NEW

  45. Exhaust Muffler (1) - Install
  46. GM5399464Courtesy of GENERAL MOTORS COMPANY

    { If equipped } Front Crossmember Brace (2) - Install

  47. { If equipped } Front Crossmember Brace Nut (1) - Install and tighten [4x] - Fastener Specifications
  48. GM5309211Courtesy of GENERAL MOTORS COMPANY

    Exhaust Muffler (1) @ Exhaust Rear Muffler Insulator-Right Side (3) - Install

  49. Exhaust Muffler (1) @ Exhaust Intermediate Pipe Insulator-Right Side (2) - Install
  50. GM5309202Courtesy of GENERAL MOTORS COMPANY

    Exhaust Muffler (1) @ Exhaust Rear Muffler Insulator-Left Side (3) - Install

  51. Exhaust Muffler (1) @ Exhaust Intermediate Pipe Insulator-Left Side (2) - Install

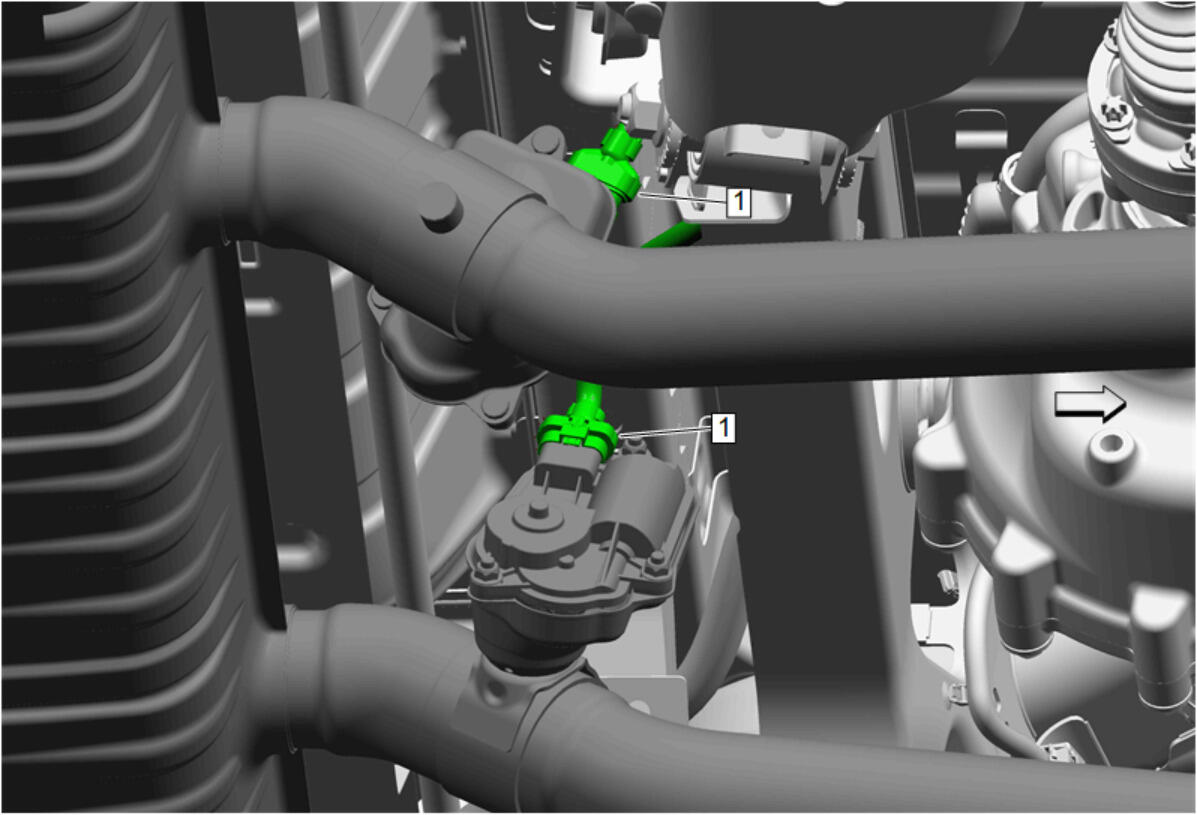

  52. GM5394596Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) @ Exhaust Control Valve Actuator - Connect [2x]

  53. GM5309188Courtesy of GENERAL MOTORS COMPANY

    Catalytic Converter Nut (1) - Install and tighten [2x] - Fastener Specifications

  54. GM5400756Courtesy of GENERAL MOTORS COMPANY

    Floor Panel Reinforcement (2) - Install

  55. Floor Panel Number 4 Cross Bar Reinforcement Bolt (1) - Install and tighten [6x] - Fastener Specifications
  56. GM5400642Courtesy of GENERAL MOTORS COMPANY

    Underbody Rear Air Deflector- Right Side (5) - Install

  57. Underbody Rear Air Deflector Plastic Nut (3) - Install and tighten [3x] - Fastener Specifications
  58. Underbody Rear Air Deflector Bolt (2) - Install and tighten [3x] - Fastener Specifications
  59. Underbody Rear Air Deflector Nut (4) - Install and tighten [2x] - Fastener Specifications
  60. Rear Wheelhouse Liner Bolt (1) - Install and tighten - Fastener Specifications

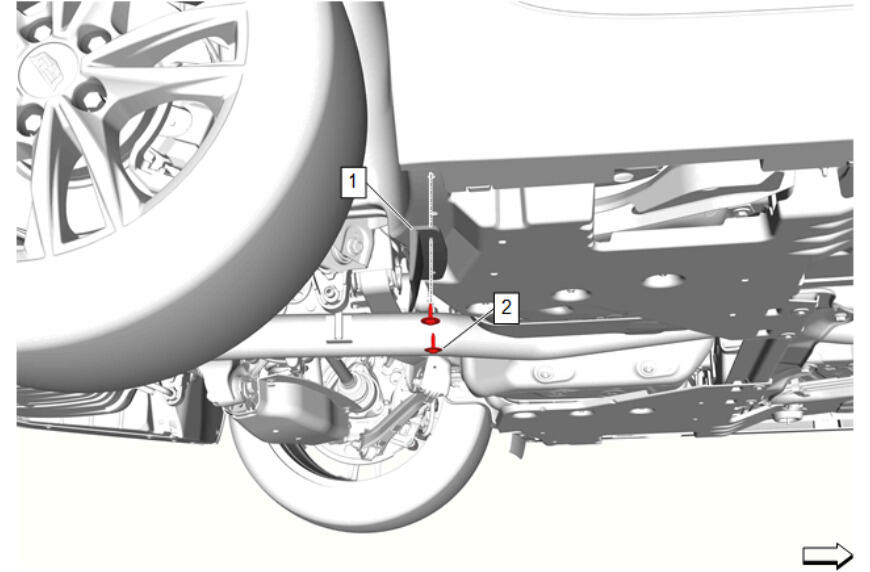

  61. GM5471237Courtesy of GENERAL MOTORS COMPANY

    Rear Tire Front Air Deflector- Right Side (1) - Install

  62. Rear Tire Front Air Deflector Bolt (2) - Install and tighten [2x] - Fastener Specifications
  63. GM5400553Courtesy of GENERAL MOTORS COMPANY

    Underbody Rear Air Deflector- Left Side (5) - Install

  64. Underbody Rear Air Deflector Plastic Nut (2) - Install and tighten [3x] - Fastener Specifications
  65. Underbody Rear Air Deflector Bolt (3) - Install and tighten [3x] - Fastener Specifications
  66. Underbody Rear Air Deflector Nut (4) - Install and tighten [2x] - Fastener Specifications
  67. Rear Wheelhouse Liner Bolt (1) - Install and tighten - Fastener Specifications
  68. GM5395705Courtesy of GENERAL MOTORS COMPANY

    Rear Tire Front Air Deflector- Left Side (2) - Install

  69. Rear Tire Front Air Deflector Bolt (1) - Install and tighten [2x] - Fastener Specifications

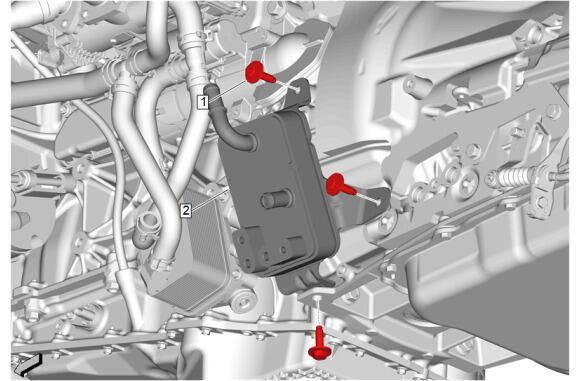

  70. GM5488460Courtesy of GENERAL MOTORS COMPANY

    Automatic Transmission Fluid Cooling Exchanger (2) - Install

  71. Automatic Transmission Fluid Cooling Exchanger Bolt (1) - Install and tighten [3x] - Fastener Specifications

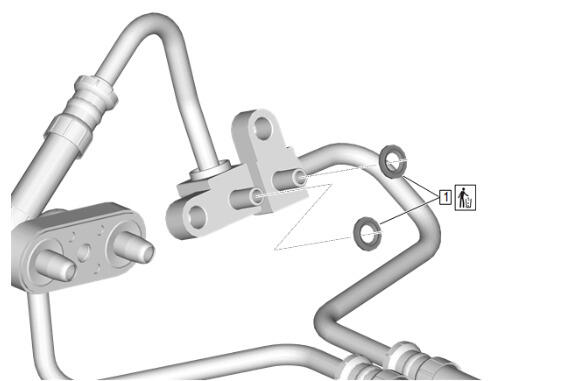

  72. GM5488459Courtesy of GENERAL MOTORS COMPANY

    Transmission Fluid Cooler Pipe Seal (1) - Install NEW [2x]

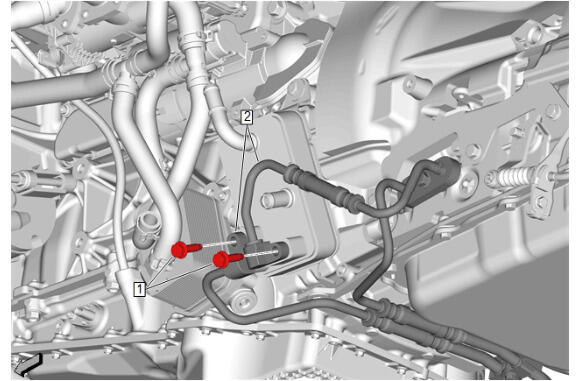

  73. GM5488458Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Remove the caps from the fittings and plugs from the holes before installing the transmission fluid cooler pipes.

    Transmission Fluid Cooler Inlet and Outlet Pipe (2) @ Automatic Transmission Fluid Cooling Exchanger - Install

  74. Transmission Fluid Cooler Pipe Connector Bolt (1) - Install and tighten [2x] - Fastener Specifications

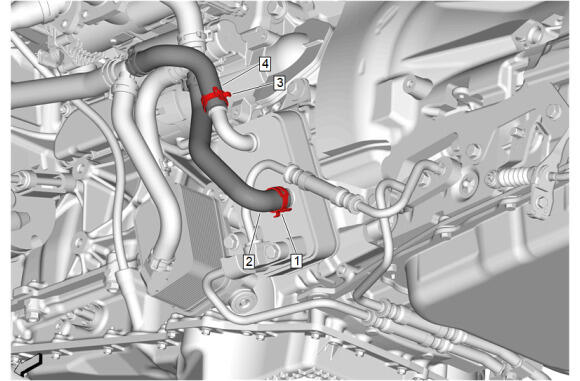

  75. GM5488457Courtesy of GENERAL MOTORS COMPANY

    Automatic Transmission Fluid Cooling Heat Exchanger Outlet Hose (4) @ Automatic Transmission Fluid Cooling Exchanger - Install

  76. Automatic Transmission Fluid Cooling Heat Exchanger Outlet Hose Clamp (3) - Engage - Hose Clamp Replacement Guidelines - Spring Type
  77. Automatic Transmission Fluid Cooling Heat Exchanger Inlet Hose (2) @ Automatic Transmission Fluid Cooling Exchanger - Install
  78. Automatic Transmission Fluid Cooling Heat Exchanger Inlet Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
  79. GM5414859Courtesy of GENERAL MOTORS COMPANY

    Transmission Fluid Cooler Thermal Bypass Valve Gasket (1) - Install NEW [2x]

  80. GM5414854Courtesy of GENERAL MOTORS COMPANY

    Transmission Fluid Cooler Seal (2) - Install NEW

  81. Transmission Fluid Cooler Pipe Seal (1) - Install NEW [2x]
  82. GM5414849Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Remove the caps from the fittings and plugs from the holes before installing the transmission fluid cooler pipes.

    Transmission Fluid Cooler Inlet and Outlet Pipe (2) - Install

  83. Transmission Fluid Cooler Pipe Nut (1) - Install and tighten - Fastener Specifications
  84. GM5414842Courtesy of GENERAL MOTORS COMPANY

    Transmission Fluid Cooler Pipe Clip Bolt (3) - Install and tighten - Fastener Specifications

  85. Transmission Fluid Cooler Pipe Bolt (2) - Install and tighten - Fastener Specifications
  86. Transmission Fluid Cooler Pipe Connector Bolt (1) - Install and tighten [2x] - Fastener Specifications
  87. Lower the vehicle. Lifting and Jacking the Vehicle
  88. Fill the engine oil to the proper level with NEW engine oil. Engine Oil and Oil Filter Replacement (RWD)
  89. Fill the cooling system. Cooling System Draining and Filling (LSY GE 47716) , or Cooling System Draining and Filling (LSY Static Fill) , or Cooling System Draining and Filling (LSY with V03 Static Fill) , or Cooling System Draining and Filling (L3B Static Fill) , or Cooling System Draining and Filling (L3B GE 47716) , or Cooling System Draining and Filling (LSY with V03 GE 47716) , or Cooling System Draining and Filling (LF4 Static Fill) , or Cooling System Draining and Filling (LF4 GE 47716)
  90. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
  91. Fill the transmission to the proper level with NEW transmission fluid. Transmission Fluid Fill Procedure
  92. Perform the solenoid valve characterization. Q77 Transmission Control Solenoid Valve Characterization Programming (8L45) , or Q77 Transmission Control Solenoid Valve Characterization Programming (10L60, 10L80)
  93. Inspect for transmission fluid leaks. Automatic Transmission Fluid Leaks
  94. Inspect the exhaust system for leaks.
