Fastener Specifications

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
GM5437903Courtesy of GENERAL MOTORS COMPANY
Left Front Side of Engine Compartment

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Engine Wiring Harness Junction Block Bolt - - 9 N.m (80 lb in) Engine Wiring Harness Junction Block Replacement
2 Battery Positive Cable Nut - - 15 N.m (11 lb ft) Auxiliary Generator Battery Jumper Cable Replacement (LSY) , or Auxiliary Generator Battery Jumper Cable Replacement (L3B)
3 Battery Negative Cable Ground Bolt - - 22 N.m (16 lb ft) Auxiliary Generator Battery Jumper Cable Replacement (LSY) , or Auxiliary Generator Battery Jumper Cable Replacement (L3B)
Fig 1: Identifying Left Side Of Engine Components (L3B)
GM5441083Courtesy of GENERAL MOTORS COMPANY
Left Side of Engine (L3B)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Generator Bolt [2x] - - 22 N.m (16 lb ft) Generator Replacement (LSY) , or Generator Replacement (L3B) , or Generator Replacement (LF4)
2 Battery Positive Cable Nut - - 15 N.m (11 lb ft) Generator Replacement (LSY) , or Generator Replacement (L3B) , or Generator Replacement (LF4)
3 Battery Positive Cable Nut - - 12.5 N.m (111 lb in) Starter Replacement (L3B) , or Starter Replacement (LSY) , or Starter Replacement (LF4)
4 Starter Bolt [2x] - - 58 N.m (43 lb ft) Starter Replacement (L3B) , or Starter Replacement (LSY) , or Starter Replacement (LF4)
5 Auxiliary Generator Battery Jumper Cable Terminal Nut - - 22 N.m (16 lb ft) Starter Replacement (L3B) , or Starter Replacement (LSY) , or Starter Replacement (LF4)
6 Starter Stud - - 58 N.m (43 lb ft) Starter Replacement (L3B) , or Starter Replacement (LSY) , or Starter Replacement (LF4)
7 Radiator Inlet Hose Bracket Bolt - - 9 N.m (80 lb in) Generator Replacement (LSY) , or Generator Replacement (L3B) , or Generator Replacement (LF4)
Fig 2: Identifying Left Side of Engine Components (LSY)
GM5437411Courtesy of GENERAL MOTORS COMPANY
Left Side of Engine (LSY)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Generator Bolt [2x] - - 22 N.m (16 lb ft) Generator Replacement (LSY) , or Generator Replacement (L3B) , or Generator Replacement (LF4)
2 Battery Positive Cable Nut - - 15 N.m (11 lb ft) Generator Replacement (LSY) , or Generator Replacement (L3B) , or Generator Replacement (LF4)
3 Battery Positive Cable Nut - - 12.5 N.m (111 lb in) Starter Replacement (L3B) , or Starter Replacement (LSY) , or Starter Replacement (LF4)
4 Starter Bolt [2x] - - 58 N.m (43 lb ft) Starter Replacement (L3B) , or Starter Replacement (LSY) , or Starter Replacement (LF4)
5 Auxiliary Generator Battery Jumper Cable Terminal Nut - - 22 N.m (16 lb ft) Starter Replacement (L3B) , or Starter Replacement (LSY) , or Starter Replacement (LF4)
6 Starter Stud - - 58 N.m (43 lb ft) Starter Replacement (L3B) , or Starter Replacement (LSY) , or Starter Replacement (LF4)
7 Radiator Inlet Hose Bracket Bolt - - 9 N.m (80 lb in) Generator Replacement (LSY) , or Generator Replacement (L3B) , or Generator Replacement (LF4)

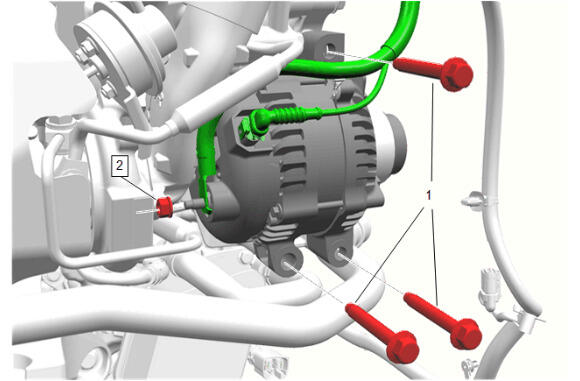

GM5912079Courtesy of GENERAL MOTORS COMPANY
Generator Replacement (LF4)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Generator Bolt [3x] - - 58 N.m (43 lb ft) Generator Replacement (LSY) , or Generator Replacement (L3B) , or Generator Replacement (LF4)
2 Engine Wiring Harness Generator Lead Nut - - 12.5 N.m (111 lb in) Generator Replacement (LSY) , or Generator Replacement (L3B) , or Generator Replacement (LF4)
Fig 3: Identifying Left Rear Compartment Area Components
GM5441749Courtesy of GENERAL MOTORS COMPANY
Left Rear Compartment Area

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Battery Negative Cable Bolt @ Rear Bumper Impact Bar Bracket - - 22 N.m (16 lb ft) Battery Negative Cable Replacement
2 Battery Negative Cable Nut - - 9 N.m (80 lb in) Battery Negative Cable Replacement
3 Battery Post Negative Cable Clamp Nut - - 4.5 N.m (40 lb in) Battery Monitor Module Replacement
4 Multifunction Power Supply Converter Bolt [2x] - - 9 N.m (80 lb in) Multifunction Power Supply Converter Replacement
5 Battery Hold Down Strap Bolt - - 9 N.m (80 lb in) Battery Replacement
6 Battery Hold Down Bolt - - 22 N.m (16 lb ft) Battery Replacement

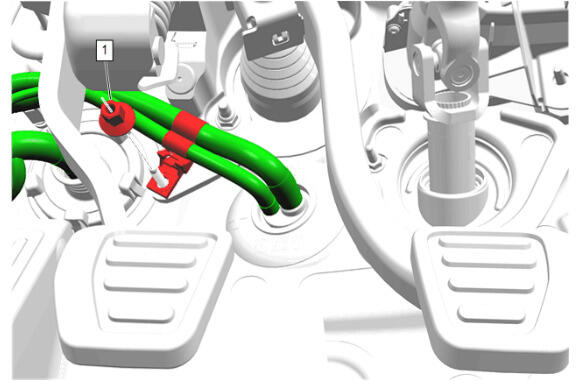

GM5911961Courtesy of GENERAL MOTORS COMPANY
Battery Positive Cable Nut- Under Driver's Side Dashboard (MG9)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Battery Positive Cable Nut - - 9 N.m (80 lb in) Battery Positive Cable Replacement (without Blackwing)

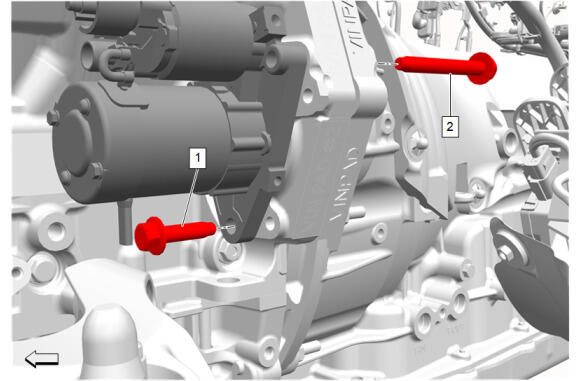

GM5950612Courtesy of GENERAL MOTORS COMPANY
Starter Bolts (LF4)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Starter Bolt - - 58 N.m (43 lb ft) Starter Replacement (L3B) , or Starter Replacement (LSY) , or Starter Replacement (LF4)
2 Starter Bolt - - 58 N.m (43 lb ft) Starter Replacement (L3B) , or Starter Replacement (LSY) , or Starter Replacement (LF4)

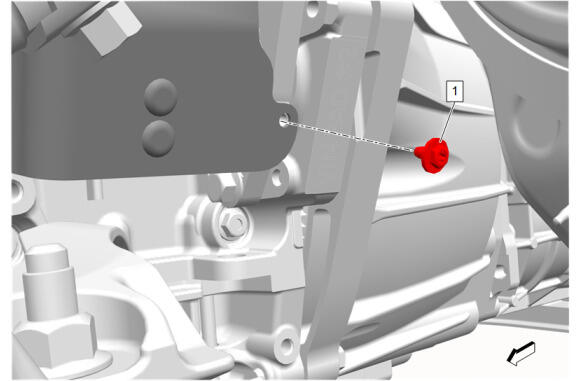

GM5949435Courtesy of GENERAL MOTORS COMPANY
Starter Shield Bolt (LF4)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Starter Shield Bolt - - 4.7 N.m (42 lb in) Starter Replacement (L3B) , or Starter Replacement (LSY) , or Starter Replacement (LF4)

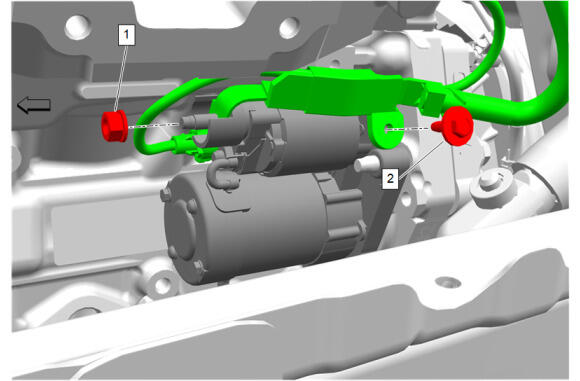

GM5950348Courtesy of GENERAL MOTORS COMPANY
Starter Solenoid Cable (LF4)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Starter Solenoid Cable Nut - - 12.5 N.m (111 lb in) Starter Replacement (L3B) , or Starter Replacement (LSY) , or Starter Replacement (LF4)
2 Starter Solenoid Cable Retainer - -   Starter Replacement (L3B) , or Starter Replacement (LSY) , or Starter Replacement (LF4)
