Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

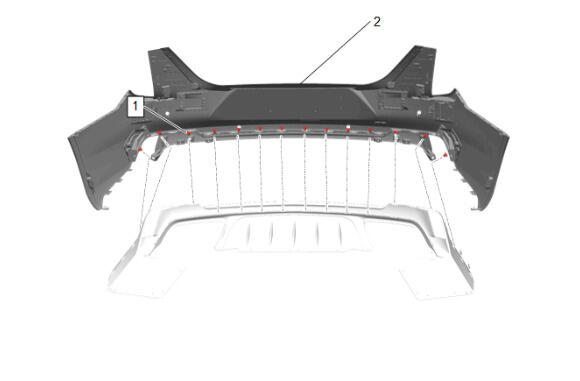

Install the rear bumper upper fascia (1) to the rear bumper lower fascia.
Rear Bumper Fascia Diffuser Retainer (1) - Install [14x]
Courtesy of GENERAL MOTORS COMPANY

Install the 4 parking assist alarm sensor (1) to the rear bumper upper fascia.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Right side shown, left side similar.

Side Object Sensing Alert Module- Left Side and Right Side (2) - Install [2x]

CAUTION:

Refer to Fastener Caution .

Side Object Sensing Alert Module Bolt- Left Side and Right Side (2) - Install and tighten [2x] Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Right side shown, left side similar.

Short Range Radar Sensor- Left Side and Right Side (2) - Install [2x]
Short Range Radar Sensor Bolt- Left Side and Right Side Install and tighten [2x] Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Right side shown, left side similar.

Rear Fascia Signal Lamp- Left Side and Right Side Install [2x]
Rear Fascia Lower Signal Lamp Bolt- Left Side and Right Side (1) Install and tighten [6x] Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Rear Bumper Fascia Extension- Left Side and Right Side (2) - Install [2x]
Rear Bumper Fascia Extension Rivet- Left Side and Right Side (1) - Install NEW [8x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Rear Bumper Fascia Energy Absorber (3) - Install
Rear Bumper Fascia Energy Absorber Bolt (2) - Install [2x] Fastener Specifications
Rear Bumper Fascia Energy Absorber Clip (1) - Install [4x]
Courtesy of GENERAL MOTORS COMPANY

Low Frequency Rear Bumper Antenna (2) - Install
Low Frequency Rear Bumper Antenna Rivets Install NEW rivets. (1) [2x]
Install the wiring harness and connect all electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

With the aid of an assistant, install the fascia. (1) Rear Bumper Fascia Removal and Installation (without Blackwing) , or Rear Bumper Fascia Removal and Installation (with Blackwing)
