Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Connect all electrical connectors.
With the aid of an assistant, install the fascia. (1)
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Install the 6 left and right side rear bumper fascia retainer clips (1) to the rear bumper fascia reinforcements.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Right side shown, left side similar.

Install the rear bumper fascia (1) to the left and right side rear fascia guides.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

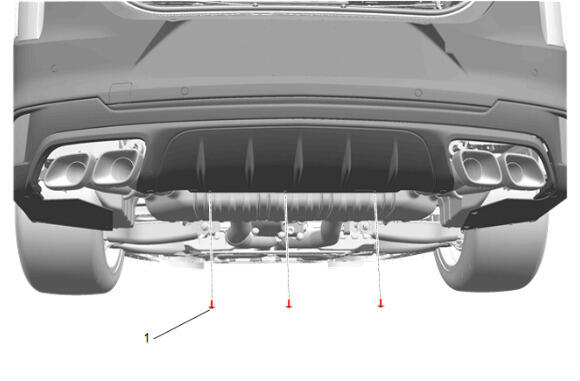

Rear Bumper Fascia Bolt (1) - Install and tighten [3x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Rear Bumper Fascia Bolt- Left Side and Right Side (1) Install and tighten [2x] Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Rear Bumper Fascia Bolt- Left Side and Right Side (1) Install and tighten [2x] Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Rear Bumper Fascia Bolt- Left Side and Right Side (1) Install and tighten [10x] Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Rear Wheelhouse Liner Bolt- Left Side and Right Side (1) Install and tighten [8x] Fastener Specifications
Lower the vehicle.
