Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Rear Bumper Energy Absorber (3) - Install
- Rear Bumper Fascia Energy Absorber Bolt (2) - Install [2x] Fastener Specifications
- Rear Bumper Fascia Energy Absorber Clip (1) - Install [4x]
- Install the wiring harness to the absorber.

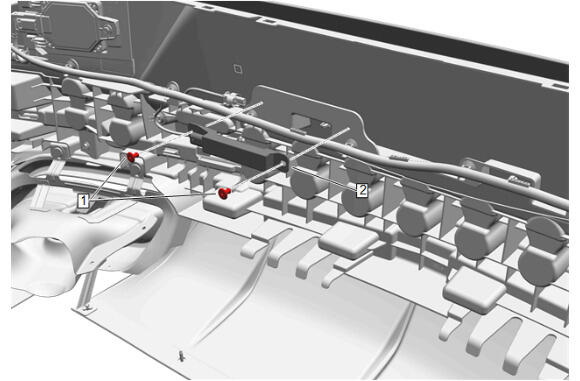

Low Frequency Rear Bumper Antenna (2) - Install
- Install NEW rivets. (1) [2x]
- Connect the electrical connector.
- Connect the rear parking sensor connectors.
Rear Bumper Fascia (1) - Install - Rear Bumper Fascia Removal and Installation (without Blackwing) , or Rear Bumper Fascia Removal and Installation (with Blackwing)
CAUTION:
Refer to Fastener Caution .
