Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

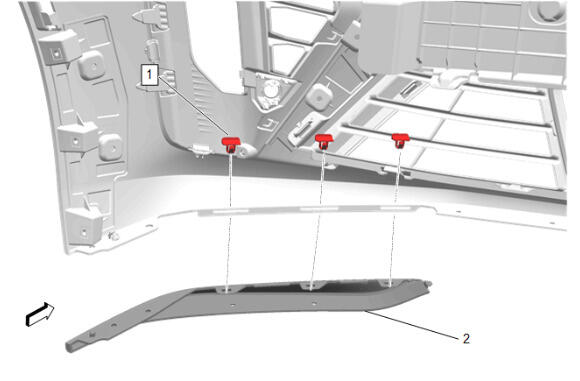

Front Bumper Lower Fascia (2) - Install
Front Bumper Fascia Retainer (1) - Install [3x]
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Front Bumper Fascia Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
The front bumper fascia will rest in place by guides on the center support upper structure.

With the aid of an assistant install the fascia. (1) - Front Bumper Fascia Removal and Installation (without Blackwing) , or Front Bumper Fascia Removal and Installation (with Blackwing) , or Front Bumper Fascia Removal and Installation (with Blackwing CFV, CFZ)
