Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

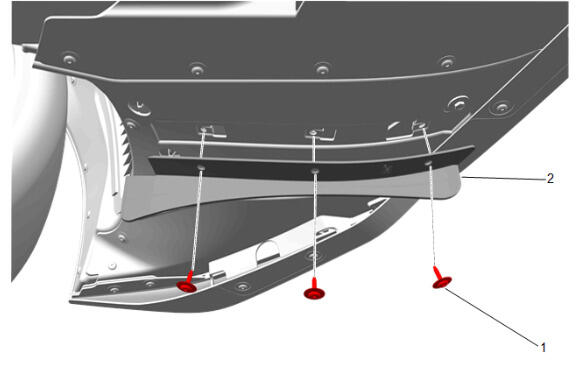

Front Bumper Fascia Lower Reinforcement (2) - Install

CAUTION:

Refer to Fastener Caution

Front Bumper Fascia Air Deflector Bolt (1) - Install and tighten [6x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia Air Deflector Bolt (3) - Install and tighten [4x] - Fastener Specifications
Front Bumper Fascia Lower Stiffener Bolt (2) - Install and tighten - Fastener Specifications
Front Bumper Fascia Bolt (1) - Install and tighten [6x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia Air Deflector- Outer (2) - Install - Front Bumper Fascia Air Deflector Replacement - Outer , or Front Bumper Fascia Air Deflector Replacement - Outer (Blackwing)
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia Air Deflector- Inner (2) - Install - Front Bumper Fascia Air Deflector Replacement - Inner (Blackwing)
