Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

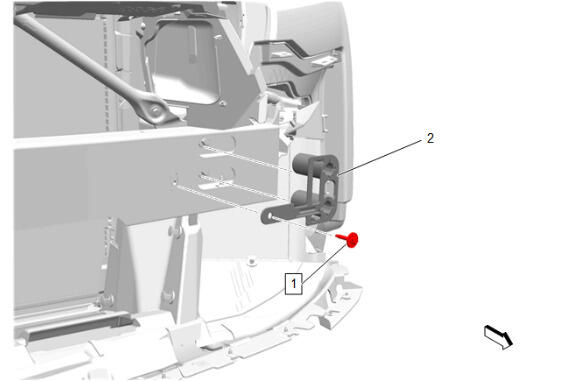

Front Bumper Fascia Energy Outer Absorber (2) - Install
- Front Bumper Impact Bar Bolt (1) - Install and tighten [2x] - Fastener Specifications
Front Bumper Fascia (1) - Install - Front Bumper Fascia Removal and Installation (without Blackwing) , or Front Bumper Fascia Removal and Installation (with Blackwing) , or Front Bumper Fascia Removal and Installation (with Blackwing CFV, CFZ)
CAUTION:
Refer to Fastener Caution .
