Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

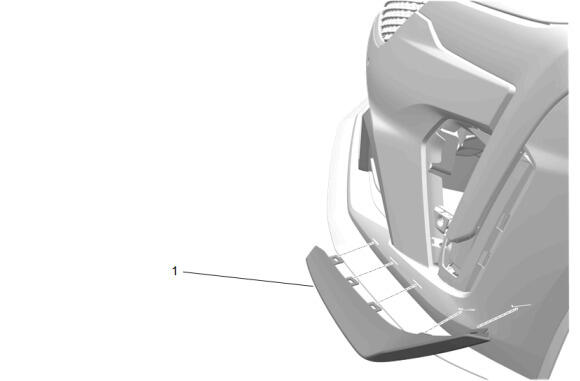

Front Bumper Fascia Air Deflector (1) - Install

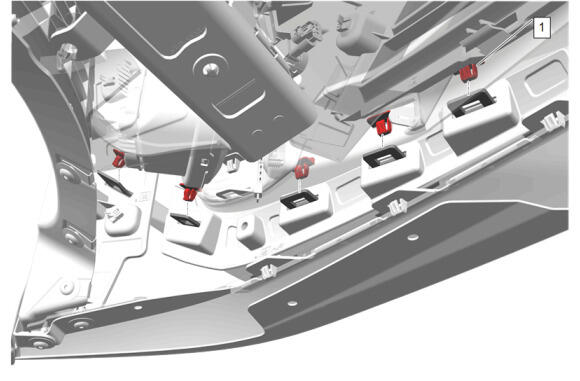

Front Bumper Fascia Retainer (1) - Install [5x]
Front Bumper Fascia Lower Reinforcement (2) - Install
- Front Bumper Fascia Air Deflector Bolt (1) - Install and tighten [5x] - Fastener Specifications
Front Bumper Fascia Air Deflector Bolt (3) - Install and tighten [4x] - Fastener Specifications
- Front Bumper Fascia Lower Stiffener Bolt (2) - Install and tighten - Fastener Specifications
- Front Bumper Fascia Bolt (1) - Install and tighten [6x] - Fastener Specifications
- Lower the vehicle.
CAUTION:
Refer to Fastener Caution
