Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Front Bumper Energy Absorber- Left Side (1) Install
Install the wiring harness retainers.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Front Compartment Front Panel Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Compartment Front Panel Bolt (1) - Install and tighten [3x] - Fastener Specifications
Front Bumper Fascia Energy Absorber Bolt (2) - Install and tighten [3x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia Energy Absorber Bolt (1) - Remove [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Right side shown, left side similar.

Charge Air Cooler Bracket Bolt (1) - Install [2x]
Charge Air Cooler Bracket (2) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Compartment Air Deflector Bolt (1) - Install and tighten [6x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Wheelhouse Liner Bolt (3) - Install and tighten - Fastener Specifications
Engine Front Splash Shield Retainer (2) - Install and tighten
Engine Front Splash Shield Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Quantity of retainers may vary based on option content.

Front Wheelhouse Liner Bolt (1) - Install and tighten - Fastener Specifications
Engine Front Splash Shield Retainer (2) - Install
Engine Front Splash Shield Bolt (3) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Install the transmission control module and connector (1) into the bracket.
Courtesy of GENERAL MOTORS COMPANY

Battery Negative Cable Ground (2) Install
Battery Negative Cable Ground Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

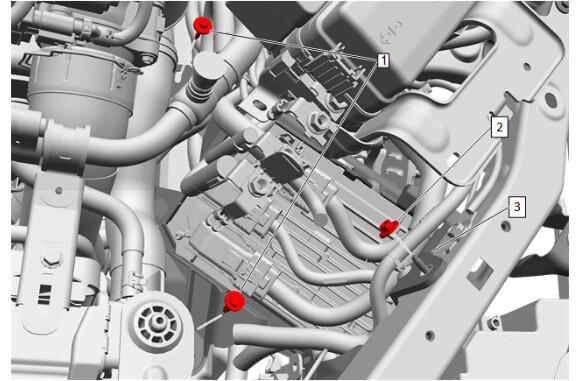

Engine Control Module Bracket (3) - Install
Engine Control Module Bracket Nut (2) - Install and tighten - Fastener Specifications
Engine Control Module Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
Air Conditioning Refrigerant Heat Exchanger Clip - Install
Courtesy of GENERAL MOTORS COMPANY

Body Wiring Harness Fuse Block Bracket (2) - Install
Body Wiring Harness Fuse Block Bracket Bolt (1) Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Install the engine auxiliary radiator assembly (1) to the vehicle.
Courtesy of GENERAL MOTORS COMPANY

Charge Air Cooler Bracket Bolt (2) - Install and tighten [3x] - Fastener Specifications
Charge Air Cooler Upper Bracket Nut (1) - Tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Auxiliary Radiator Front Duct (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Auxiliary Radiator Duct Retainer (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

Auxiliary Radiator Duct Retainer (1) - Install [3x]
Install the front bumper fascia. Front Bumper Fascia Removal and Installation (without Blackwing) , or Front Bumper Fascia Removal and Installation (with Blackwing) , or Front Bumper Fascia Removal and Installation (with Blackwing CFV, CFZ)
Courtesy of GENERAL MOTORS COMPANY

Auxiliary Radiator Rear Duct (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Auxiliary Radiator Duct Retainer (1) - Install [3x]
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Impact Bar (2) - Install
Front Bumper Impact Bar Bolt (1) - Install and tighten [8x] - Fastener Specifications
Install the wiring harness and baffle retainers.
Courtesy of GENERAL MOTORS COMPANY

Horn (2) - Install [2x]
Horn Bolt (1) - Install and tighten [2x] - Fastener Specifications
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

Front End Sheet Metal Cross Brace (2) - Install
Front End Sheet Metal Cross Brace Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Forward Range Radar Bracket (2) - Install
Front Bumper Fascia Support Brace Bolt (1) - Install [3x] - Fastener Specifications
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
The front bumper fascia will rest in place by guides on the center support upper structure.

With the aid of an assistant, install the fascia. (1)
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia Center Air Deflector Screw (1) - Install and tighten [6x] - Fastener Specifications
Front Bumper Fascia Center Air Deflector Bolt (2) - Install and tighten [5x] - Fastener Specifications
Front Bumper Fascia Center Air Deflector Retainer (3) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia Center Air Deflector Screw (1) - Install and tighten [3x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Install the left side of the front bumper fascia (1) to the front bumper fascia guide (2) and the front headlamp (3).
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

Install the right side of the front bumper fascia (1) to the front bumper fascia guide (2) and the front headlamp (3).
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia Bolt (1) - Install and tighten [6x] - Fastener Specifications
Raise and support the vehicle. Lifting and Jacking the Vehicle
Courtesy of GENERAL MOTORS COMPANY

Install and tighten the left side upper front bumper fascia bolt (2). Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Install and tighten the right side upper front bumper fascia bolt (2). Fastener Specifications
Front Wheelhouse Liner (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia Bolt- Right Side (3) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Wheelhouse Liner- Left Side (3) - Install
Front Wheelhouse Liner Retainer (2) - Install [4x]
Front Wheelhouse Liner Bolt (1) - Install and tighten [7x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia Air Deflector Bolt (1) - Install and tighten [3x] - Fastener Specifications
Front Bumper Fascia Bolt (2) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY
NOTE:
- Quantity of fasteners may vary based on option content.
- Components removed for graphic clarity.
Engine Front Splash Shield (3) - Install
Engine Front Splash Shield Retainer (2) - Install [2x]
Engine Front Splash Shield Bolt (1) - Install and tighten [5x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Quantity of fasteners may vary based on option content.

Front Tire Front Air Deflector (2) - Install
Front Tire Front Air Deflector Bolt (1) - Install and tighten [4x] - Fastener Specifications
Install the tire and wheel assembly. Tire and Wheel Removal and Installation
Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
