Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

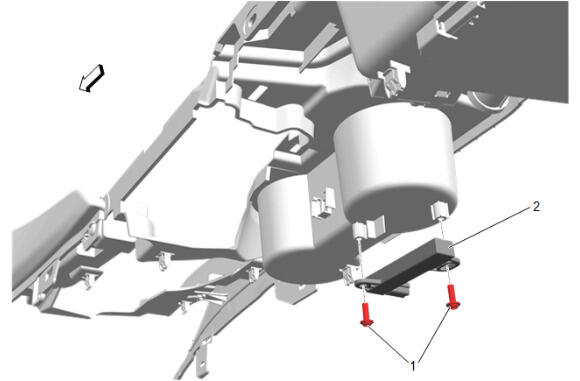

  1. GM5873549Courtesy of GENERAL MOTORS COMPANY

    Low Frequency Instrument Panel Antenna (2) - Install

  2. CAUTION:

    Refer to Fastener Caution .

  3. Theft Deterrent Module Bolt (1) - Install and tighten [2x] - Fastener Specifications
  4. GM5868346Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  5. Front Floor Console Cup Holder (1) - Install
  6. GM5868344Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Armrest Bolt (1) - Install and tighten [2x] - Fastener Specifications

  7. Front Floor Console Cup Holder Bolt (2) - Install and tighten [5x] - Fastener Specifications
  8. Install the lens of the front floor console bin lamp (3) to the front floor console cup holder.
  9. GM5868342Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Left Side (1) - Install

  10. GM5868340Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Cup Holder Bolt (1) - Install and tighten [6x] - Fastener Specifications

  11. GM5868339Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Right Side (1) - Install

  12. Return the seat to its original position.
  13. GM5867046Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  14. Front Floor Console Rear Trim Panel (1) - Install
  15. GM5868026Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  16. Front Floor Console Trim Plate (1) - Install
  17. GM5868061Courtesy of GENERAL MOTORS COMPANY

    If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:

    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
  18. Position the transmission control lever boot and knob assembly (1, 2) on the manual transmission control lever.
  19. Manual Transmission Control Lever Knob Bolt (3) - Install and tighten - Fastener Specifications .
  20. Install the manual transmission control lever boot (2) to the console.
