Fastener Specifications
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

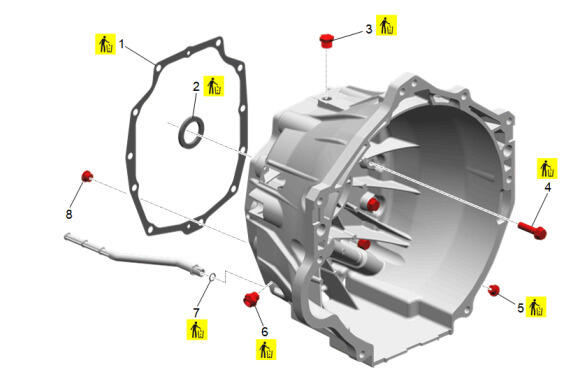

Clutch Housing
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Clutch Housing Gasket | Yes | - | - | Transmission Assemble |
| 2 | Input Shaft Seal | Yes | Yes | - | Transmission Assemble |
| 3 | Shift Shaft Detent Plug | Yes | Yes | 27 N.m (20 lb ft) | Transmission Assemble |
| 4 | Clutch Housing Adapter Bolt [11x] | Yes | Yes | 48 N.m (36 lb ft) | Transmission Assemble |
| 5 | Transmission Case Plug | Yes | Yes | 21 N.m (16 lb ft) | Transmission Case and Clutch Housing Assemble |
| 6 | Transmission Fluid Pump Outlet Pipe Fitting | Yes | Yes | 27 N.m (20 lb ft) | Transmission Case and Clutch Housing Assemble |
| 7 | Transmission Fluid Pump Inlet Pipe Seal | Yes | - | - | Transmission Assemble |
| 8 | Transmission Adapter Plug | - | - | 27 N.m (20 lb ft) | Transmission Case and Clutch Housing Assemble |

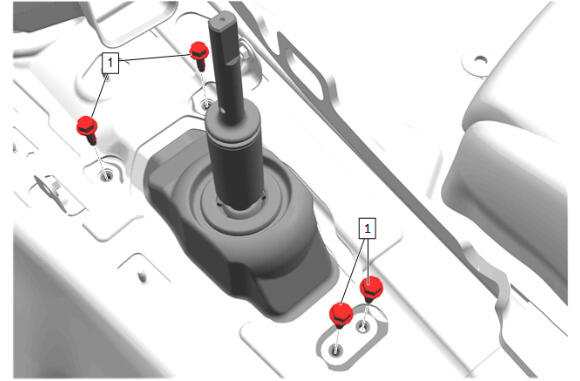

Manual Transmission Control Bracket Bolt
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Manual Transmission Control Bracket Bolt [4x] | - | - | 9 N.m (80 lb in) | Manual Transmission Control Replacement |

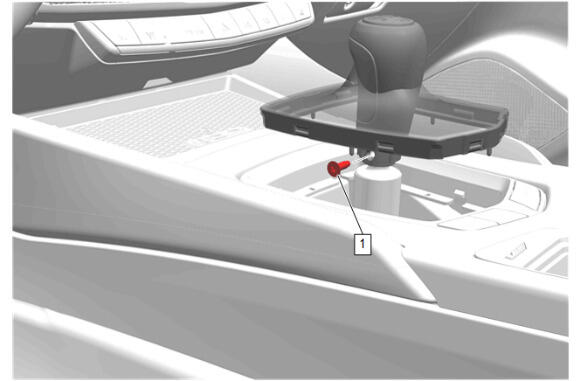

Manual Transmission Control Lever Knob Bolt
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Manual Transmission Control Lever Knob Bolt | - | Yes | 9 N.m (80 lb in) | Manual Transmission Control Lever Knob Replacement |

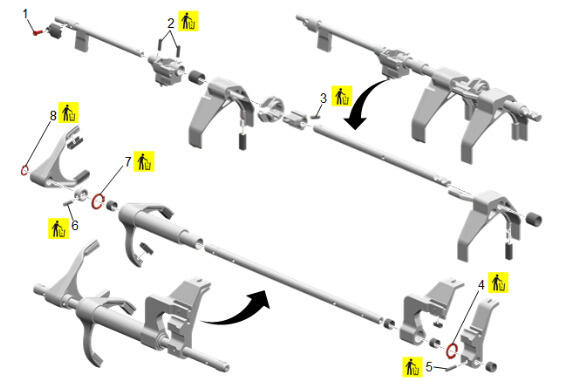

Shift Shafts
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Shift Shaft Detent Lever Bolt | - | - | 5 N.m (44 lb in) | Transmission Assemble |
| 2 | 1st and 2nd Shift Fork Pin [2x] | Yes | - | - | Transmission Assemble |
| 3 | Reverse Shift Block Interlock Pin | Yes | - | - | Shift Shaft and Fork Assemblies Assemble |
| 4 | Shift Lever Retaining Ring | Yes | - | - | Shift Shaft and Fork Assemblies Assemble |
| 5 | Reverse Shift Lever Pin | Yes | - | - | Shift Shaft and Fork Assemblies Assemble |
| 6 | 1st and 2nd Shift Fork Pin | Yes | - | - | Shift Shaft and Fork Assemblies Assemble |
| 7 | 5th and 6th Gear Synchronizer Hub Retaining Ring | Yes | - | - | Shift Shaft and Fork Assemblies Assemble |
| 8 | Reverse Shift Fork Retaining Ring | Yes | - | - | Shift Shaft and Fork Assemblies Assemble |

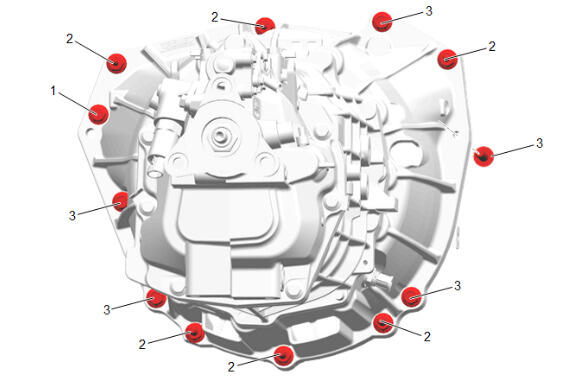

Transmission Bolts and Studs
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Bolt | - | - | 68 N.m (50 lb ft) | Manual Transmission Removal and Installation |
| 2 | Transmission Stud [6x] | - | - | 30 N.m (22 lb ft) | Manual Transmission Removal and Installation |
| 3 | Transmission Bolt [5x] | - | - | 30 N.m (22 lb ft) | Manual Transmission Removal and Installation |

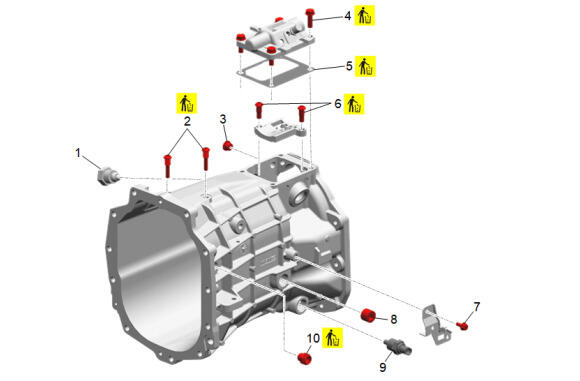

Transmission Case
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Shift Interlock Detent | - | - | 40 N.m (30 lb ft) | Transmission Assemble |
| 2 | Shift Shaft Interlock Pin [2x] | - | - | 27 N.m (20 lb ft) | Transmission Assemble |
| 3 | Manual Transmission Case Hole Plug | - | - | 21 N.m (16 lb ft) | Transmission Assemble |
| 4 | Shift Control Shaft Cover Bolt [4x] | Yes | - | 8 N.m (71 lb in) | Transmission Assemble |
| 5 | Shift Control Shaft Cover Seal | Yes | - | - | Transmission Assemble |
| 6 | Shift Guide Detent Plate Bolt | Yes | - | 22 N.m (16 lb ft) | Transmission Case and Clutch Housing Assemble |
| 7 | Transmission Fluid Auxiliary Cooler Pipe Bracket Bolt | - | - | 6.5 N.m (58 lb in) | Transmission Assemble |
| 8 | Transmission Oil Filler Plug | - | Yes | 27 N.m (20 lb ft) | Transmission Fluid Drain and Fill |
| 9 | Manual Transmission Fluid Temperature Sensor | - | Yes | 27 N.m (20 lb ft) | Transmission Fluid Drain and Fill |
| 10 | Transmission Fluid Pump Outlet Pipe Fitting | Yes | Yes | 27 N.m (20 lb ft) | Transmission Assemble |

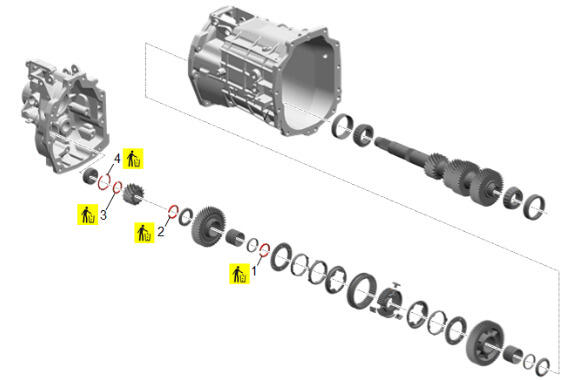

Transmission Case Internals 1 of 2
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | 5th and 6th Gear Synchronizer Hub Retaining Ring | Yes | - | - | Transmission Assemble |
| 2 | 5th Gear Retaining Ring | Yes | - | - | Transmission Assemble |
| 3 | Counter Drive Gear Retaining Ring | Yes | - | - | Transmission Assemble |
| 4 | Counter Gear Rear Bearing Retaining Ring | Yes | - | - | Transmission Assemble |

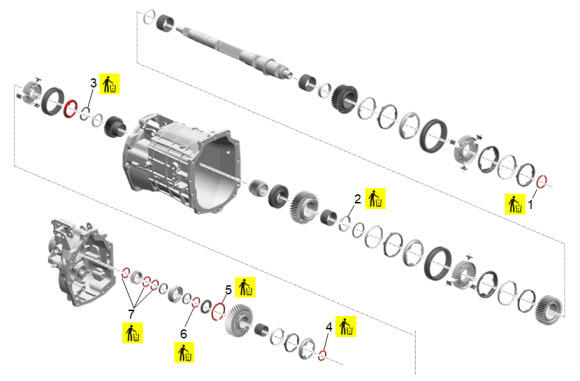

Transmission Case Internals 2 of 2
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | 3rd and 4th Gear Synchronizer Retaining Ring | Yes | - | - | Transmission Assemble |
| 2 | 1st and 2nd Gear Synchronizer Retaining Ring | Yes | - | - | Transmission Assemble |
| 3 | Reverse Gear Retaining Ring | Yes | - | - | Transmission Assemble |
| 4 | Reverse Gear Synchronizer Retainer | Yes | - | - | Transmission Assemble |
| 5 | Reverse Gear Retaining Ring-Large | Yes | - | - | Transmission Assemble |
| 6 | Reverse Gear Retaining Ring-Small | Yes | - | - | Transmission Assemble |
| 7 | Main Shaft Bearing Retaining Ring | Yes | - | - | Transmission Assemble |

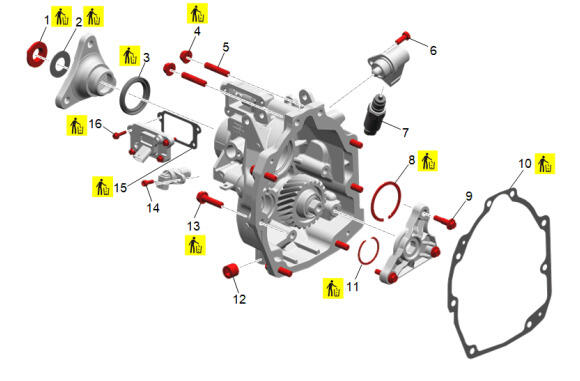

Transmission Extension
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Propeller Shaft Transmission Yoke Nut | Yes | - | 136 N.m (100 lb ft) | Transmission Assemble |
| 2 | Propeller Shaft Transmission Yoke Washer | Yes | - | - | Transmission Assemble |
| 3 | Main Shaft Rear Seal | Yes | - | - | Main Shaft Rear Seal Replacement |
| 4 | Transmission Extension Nut [2x] | Yes | - | 48 N.m (35 lb ft) | Transmission Extension Assemble |
| 5 | Transmission Extension Stud [2x] | - | - | 48 N.m (35 lb ft) | Transmission Extension Assemble |
| 6 | Manual Transmission Reverse Gear Block out Solenoid Housing Bolt | Yes | - | 18 N.m (13 lb ft) | Manual Transmission Reverse Gear Block out Solenoid Housing Replacement |
| 7 | Manual Transmission Reverse Gear Block out Solenoid | - | - | 40 N.m (30 lb ft) | Manual Transmission Reverse Gear Block out Solenoid Housing Replacement |
| 8 | Main Shaft Rear Bearing Retaining Ring | Yes | - | - | Transmission Extension Assemble |
| 9 | Reverse Idler Gear Shaft Bracket Bolt [3x] | Yes | Yes | 25 N.m (18 lb ft) | Transmission Extension Assemble |
| 10 | Transmission Extension Gasket | Yes | - | - | Transmission Extension Assemble |
| 11 | Counter Gear Rear Bearing Retaining Ring | Yes | - | - | Transmission Extension Assemble |
| 12 | Transmission Oil Drain Plug | - | - | 27 N.m (20 lb ft) | Transmission Extension Assemble |
| 13 | Transmission Extension Bolt [6x] | Yes | Yes | 48 N.m (33 lb ft) | Transmission Extension Assemble |
| 14 | Manual Transmission Output Speed Sensor Bolt | Yes | - | 10 N.m (89 lb in) | Manual Transmission Output Speed Sensor Replacement |
| 15 | Manual Transmission Gear Position Sensor Seal | Yes | - | - | Transmission Extension Assemble |
| 16 | Manual Transmission Gear Position Sensor Bolt [4x] | Yes | - | 9 N.m (80 lb in) | Manual Transmission Gear Position Sensor Replacement |
Transmission Mount Bolt
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Mount Bracket Bolt [4x] | - | - | 41 N.m (30 lb ft) | Transmission Mount Replacement |
| 2 | Transmission Mount Bolt [2x] | - | - | 61 N.m (45 lb ft) | Transmission Mount Replacement |
