Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

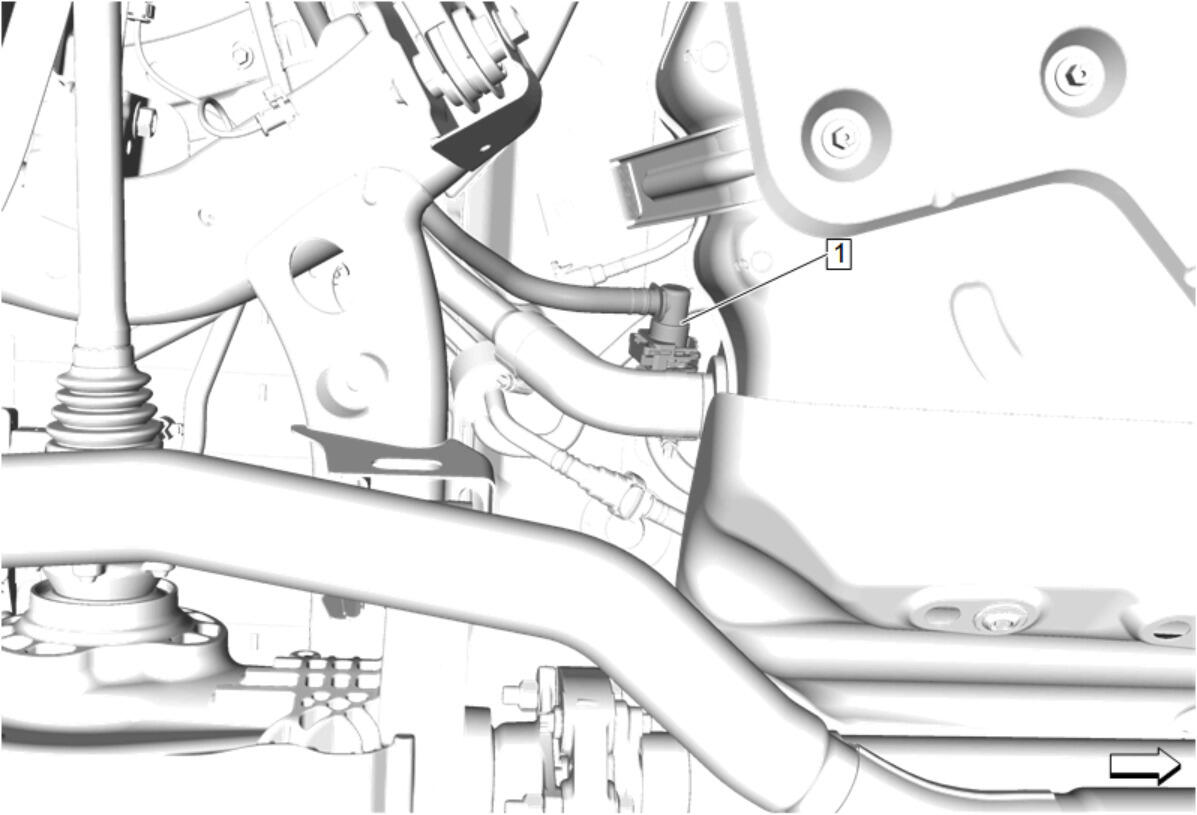

Fuel Tank Vent Hose (1) - Install
- Fuel Tank Vent Hose (1) - Connect - Plastic Collar Quick Connect Fitting Service

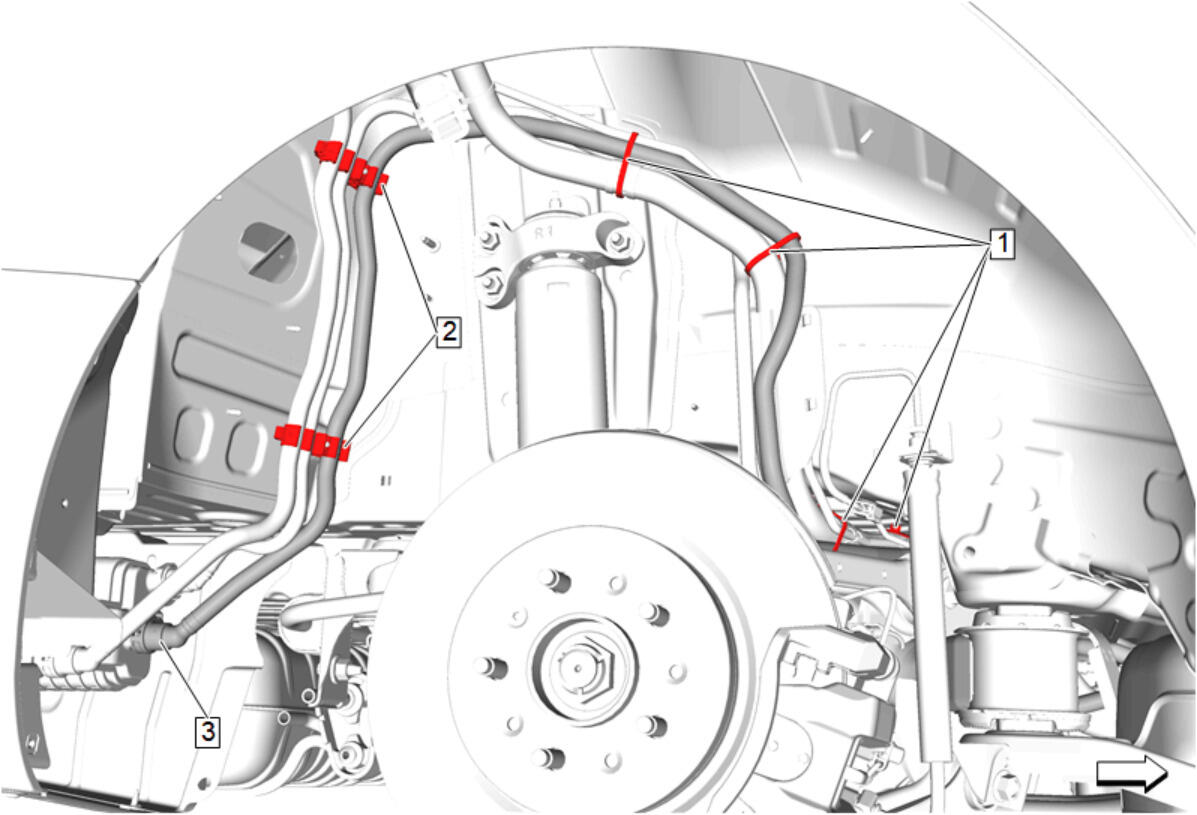

Fuel Tank Vent Hose (3) - Connect - Plastic Collar Quick Connect Fitting Service
- Retainer (2) - Install [2x]
- Tie Strap (1) - Install NEW [4x]
Rear Wheelhouse Liner (5) - Install
- Rear Wheelhouse Liner Retainer (3) - Install [2x]
- Rear Wheelhouse Liner Retainer (1) - Install
- Rear Bumper Fascia Screw (4) - Install and tighten [2x] - Fastener Specifications
- Rear Wheelhouse Liner Bolt (2) - Install and tighten [8x] - Fastener Specifications
Rear Tire Front Air Deflector (2) - Install
- Rear Tire Front Air Deflector Bolt (1) - Install and tighten [2x] - Fastener Specifications
- Lower the vehicle.
CAUTION:
Refer to Fastener Caution
