Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

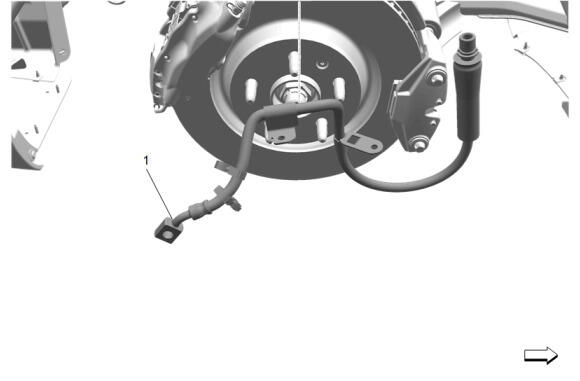

Rear Brake Hose (1) - Install

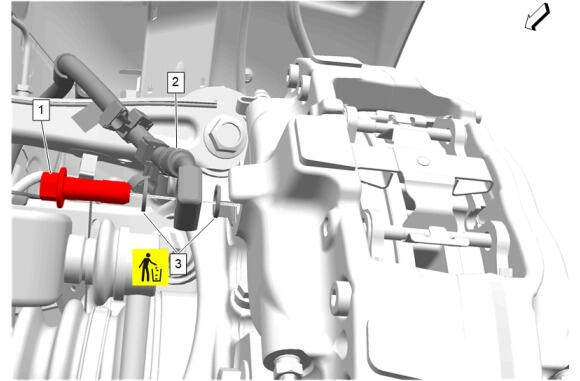

Remove the plug from the rear brake caliper inlet.
- Rear Brake Hose Fitting Gasket (3) - Install NEW [2x]
- Rear Brake Hose (2) @ Rear Brake Caliper - Install
- Rear Brake Hose Fitting (1) - Install and tighten - Fastener Specifications

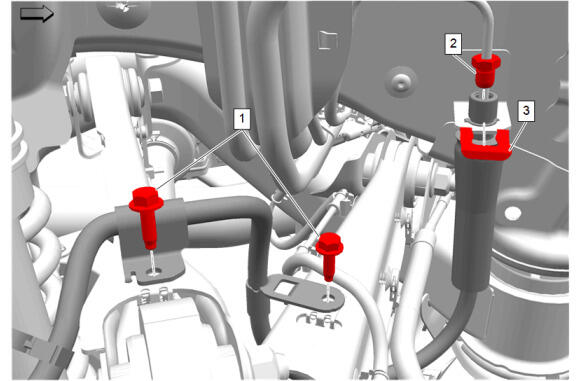

Remove the cap from the rear brake pipe outlet.
- Rear Brake Pipe Clip (3) - Install
- Rear Brake Pipe Nut (2) - Install and tighten - Fastener Specifications
- Rear Brake Hose Clip Bolt (1) - Install and tighten [2x] - Fastener Specifications

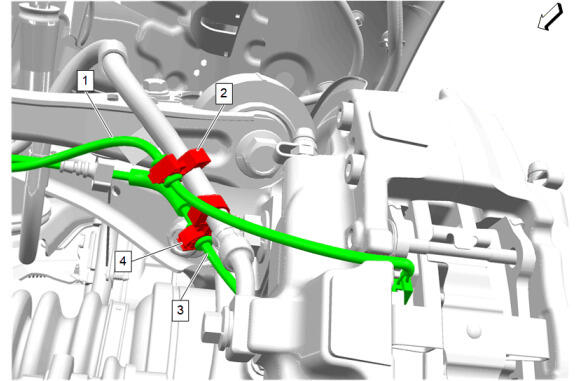

Rear Wheel Speed Sensor (3) @ Wiring Harness Retainer (4) - Install
- Wiring Harness Retainer (4) - Engage
- { If equipped } Rear Disc Brake Pad Wear Sensor (1) @ Wiring Harness Retainer (2) - Install
- { If equipped } Wiring Harness Retainer (2) - Engage
- Bleed the brake system. Hydraulic Brake System Bleeding (JE5, J6G) , or Hydraulic Brake System Bleeding (J55)
- Check for brake system leaks.
- Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
- Remove the support and lower the vehicle.
CAUTION:
Refer to Fastener Caution .
