Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM5896839
    NOTE:

    Some components not shown for graphic clarity.

    Install a NEW brake pedal retainer (1) to the brake pedal.

  2. Ensure the locking tabs on the brake pedal retainer are fully engaged in the brake pedal.
  3. GM5896081

    Maneuver the front brake pipe (3) into the vehicle.

  4. Remove the cap from the front brake pipe inlet.
  5. CAUTION:

    Refer to Fastener Caution .

  6. Front Brake Pipe Nut (1) - Install and tighten - Fastener Specifications
  7. Front Brake Pipe (2) @ Front Brake Pipe Retainer (3) - Install

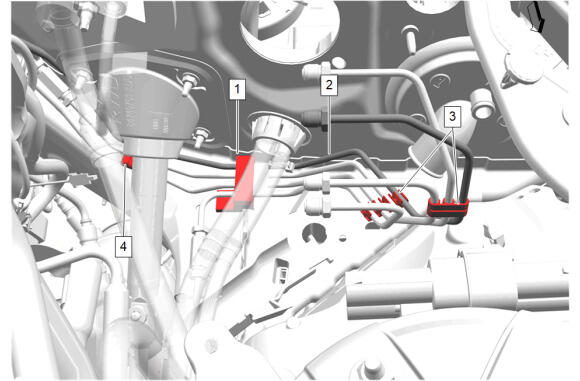

  8. GM5896079

    Front Brake Pipe (2) @ Front Brake Pipe Retainer (1) - Install

  9. Front Brake Pipe (2) @ Front Brake Pipe Retainer (3) - Install [2x]
  10. Front Brake Pipe Retainer (1) - Engage
  11. GM5493276

    Brake Master Cylinder (1) - Install

  12. GM5324653

    Brake Master Cylinder Nut (1) - Install and tighten [2x] - Fastener Specifications

  13. GM5880985

    Engage the brake pedal (1) to the brake master cylinder push rod by pushing inwards.

  14. Ensure the brake pedal retainer is secured by lightly pulling rearward on the brake pedal (1).
  15. GM5310879

    Instrument Panel Lower Trim Panel Insulator (1) - Install

  16. GM5310878

    Install the tabs into the instrument panel lower trim panel insulator (1).

  17. GM5310877

    Instrument Panel Lower Trim Panel Insulator Retainer (1) - Install

  18. Instrument Panel Insulator Bolt (2) - Install and tighten [2x] - Fastener Specifications
  19. Instrument Panel Insulator Nut (3) - Install and tighten [2x] - Fastener Specifications
  20. GM5300282

    Attach the hood primary latch release cable end retainer to the hood primary latch release cable handle (1).

  21. Connect the front floor courtesy lamp electrical connector.
  22. GM5488446

    Remove the caps from the 4 brake front pipe inlets.

  23. Front Brake Pipe Nut (2) - Install and tighten [2x] - Fastener Specifications
  24. Rear Brake Pipe Nut (1) - Install and tighten [2x] - Fastener Specifications
  25. GM5324655

    Electrical Connector (1) @ Brake System Control Module - Connect

  26. GM5491702

    Electrical Connector (1) @ Brake Fluid Level Sensor - Connect

  27. GM5872932

    Front End Sheet Metal Diagonal Brace (3) - Install

  28. Front End Sheet Metal Cross Brace Bolt (2) - Install and tighten - Fastener Specifications
  29. Front End Sheet Metal Diagonal Brace Nut (1) - Install and tighten - Fastener Specifications
  30. GM5839407

    Front End Sheet Metal Cross Brace (3) - Install

  31. Install the engine wire harness retainers to the front end sheet metal cross brace.
  32. Front Suspension Strut Upper Mounting Nut (2) - Install and tighten [2x] - Fastener Specifications
  33. Front End Sheet Metal Cross Brace Bolt (1) - Install and tighten [3x] - Fastener Specifications
  34. GM5864524

    Radiator Air Upper Baffle (3) - Install

  35. Radiator Air Upper Baffle Bolt (2) - Install and tighten [2x] - Fastener Specifications
  36. Radiator Air Upper Baffle Retainer (1) - Install [5x]
  37. GM5865881

    Plenum Front Panel (1) - Install

  38. GM5865879

    Plenum Front Panel Bolt (1) - Install and tighten [4x] - Fastener Specifications

  39. Plenum Front Panel Nut (2) - Install and tighten [3x] - Fastener Specifications
  40. GM5422039

    Plenum Front Panel Nut (1) - Install and tighten [3x] - Fastener Specifications

  41. Plenum Front Panel Bolt (2) - Install and tighten [3x] - Fastener Specifications
  42. Install the forward lamp wiring harness extension (3) into the plenum front panel.
  43. Connect the electrical connector.
  44. GM5499583

    Air Inlet Deflector Water Deflector (1) - Install

  45. GM5499581

    Air Inlet Deflector Water Deflector Retainer (1) - Install [2x]

  46. GM5420344

    Windshield Wiper System Module (2) - Install

  47. Windshield Wiper System Module Bolt (1) - Install and tighten [2x] - Fastener Specifications
  48. Connect the windshield wiper motor electrical connector.
  49. GM5420286

    Windshield Wiper System Module Shield (1) - Install

  50. GM5417442

    Air Inlet Grille Panel (2) - Install

  51. Connect the windshield washer nozzle hose to the windshield washer pump hose.
  52. Air Inlet Grille Panel Retainer (1) - Install [6x]
  53. GM5862927
    NOTE:

    Left side shown, right side similar.

    Front Compartment Side Sight Shield- Left Side and Right Side (2) - Install [2x]

  54. Front Compartment Side Sight Shield Retainer- Left Side and Right Side (1) - Install [6x]
  55. GM5865291
    NOTE:

    Left side shown, right side similar.

    Air Inlet Grille Panel Extension- Left Side and Right Side (2) - Install [2x]

  56. Air Inlet Grille Panel Retainer- Left Side and Right Side (1) - Install [4x]
  57. GM5421986
    NOTE:

    Left side shown, right side similar.

    Hood Rear Outer Air Inlet Seal- Left Side and Right Side (2) Install [2x]

  58. Hood Rear Outer Air Inlet Seal Retainer - Left Side and Right Side (1) - Install [4x]
  59. GM5417116
    NOTE:

    Left side shown, right side similar.

    Air Inlet Grille Panel Extension- Left Side and Right Side (1) - Install [2x]

  60. Remove the masking tape from the top edge of the left and right side service parts.
  61. Using a 50/50 mixture of isopropyl alcohol and clean drinkable water with a clean towel, remove any left over adhesive residue from the masking tape.
  62. GM5325063
    NOTE:

    Left side shown, right side similar.

    Clean the left and right side windshield wiper transmission pivot shaft splines with a soft wire brush before installing the windshield wiper arms (3).

  63. Windshield Wiper Arm- Left Side and Right Side (3) - Install [2x]
  64. Windshield Wiper Arm Nut- Left Side and Right Side (2) - Install and tighten [2x] - Fastener Specifications
  65. Windshield Wiper Arm Finish Cap- Left Side and Right Side (1) - Install [2x]
  66. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
  67. Bleed the brake system. Hydraulic Brake System Bleeding (JE5, J6G) , or Hydraulic Brake System Bleeding (J55)
  68. Check for brake system leaks.
  69. GM5416557

    If required, realign the left side and right side windshield wipers to their respective alignment circles (1) on the windshield.

  70. Lubricate the windshield with clean washer fluid.
  71. Run the windshield wipers for two complete cycles then turn off the windshield wipers.
  72. Ensure the windshield wipers are in the full park position.
  73. Inspect the windshield wipers for proper position to the alignment circles (1) on the windshield.
