Draining Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
    WARNING:

    To avoid being burned, do not remove the radiator cap or surge tank cap while the engine is hot. The cooling system will release scalding fluid and steam under pressure if radiator cap or surge tank cap is removed while the engine and radiator are still hot.

    NOTE:

    Make sure the charge air cooling system is cool and that the pump is not activated.

  1. Oil Filler Cap - Remove
  2. GM5839283

    Intake Manifold Cover Bolt (1) - Remove

  3. Intake Manifold Cover (2) - Remove
  4. Install the oil filler cap after removal of the intake manifold cover to prevent debris from falling into the engine.
  5. GM5908745

    Intake Manifold Vacuum Fitting Cap (1) - Remove

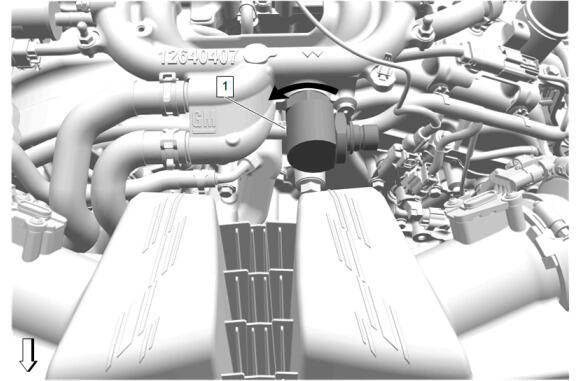

  6. GM5908748

    Rotate the intake manifold vacuum fitting (1) 90 degrees counterclockwise.

  7. GM5908746

    Place an absorbent shop cloth around the intake manifold vacuum fitting (2) to capture any coolant loss.

  8. Install the GE-47716-30A  Vac-N-Fill Adapter (1) to the intake manifold vacuum fitting (2) to allow the system to vent.
  9. Place a drain pan under the vehicle.
  10. Raise and support the vehicle. Lifting and Jacking the Vehicle
  11. GM5873162

    Front Bumper Fascia Bolt- Left Side (1) - Remove [6x]

  12. Front Bumper Fascia Lower Stiffener Bolt- Left Side (2) - Remove
  13. Front Bumper Fascia Air Deflector Bolt- Left Side (3) - Remove [4x]
  14. GM5873163

    Front Bumper Fascia Air Deflector Bolt- Left Side (1) - Remove [6x]

  15. Front Bumper Fascia Lower Reinforcement- Left Side (2) - Remove
  16. GM5867323

    Front Bumper Fascia Air Deflector Bolt- Left Side (1) - Remove [4x]

  17. Front Bumper Fascia Air Deflector- Outer (2) - Remove
  18. Remove the left front tire and wheel assembly. Tire and Wheel Removal and Installation
  19. GM5867672
    NOTE:
    • Quantity of fasteners may vary based on option content.
    • Some components not shown for graphic clarity.

    Engine Front Splash Shield Retainer- Left Side (2) - Remove

  20. Engine Front Splash Shield Bolt- Left Side (1) - Remove [4x]
  21. Engine Front Splash Shield- Left Side (3) - Remove
  22. GM5875528

    Front Wheelhouse Liner Bolt (1) - Remove [4x]

  23. Front Wheelhouse Liner Retainer (2) - Remove
  24. Front Wheelhouse Liner (3) - Reposition
  25. GM5482555

    Auxiliary Radiator Duct Retainer- Left Side (1) - Remove [3x]

  26. GM5482558

    Auxiliary Radiator Rear Duct- Left Side (1) - Remove

  27. GM5839403

    Front Bumper Fascia (1) - Remove - Front Bumper Fascia Removal and Installation (without Blackwing) , or Front Bumper Fascia Removal and Installation (with Blackwing) , or Front Bumper Fascia Removal and Installation (with Blackwing CFV, CFZ)

  28. GM5481342

    Auxiliary Radiator Duct Retainer- Left Side (1) - Remove [3x]

  29. GM5481344

    Auxiliary Radiator Duct Retainer- Left Side (1) - Remove [2x]

  30. GM5420756

    {With UGN} Forward Range Radar Bracket (2) - Remove

    1. Forward Range Radar Bracket Bolt (1) - Remove [3x]
      2. NOTE:

      Forward range radar sensor will be removed with the bracket.

    2. Forward Range Radar Bracket (2) - Remove
    3. Disconnect the electrical connector.
  31. GM5873047
    NOTE:

    Left side shown, right side similar.

    Auxiliary Radiator Front Inlet Duct Retainer- Left Side and Right Side (1) - Remove [6x]

  32. GM5873049
    NOTE:

    Left side shown, right side similar.

    Auxiliary Radiator Front Inlet Duct- Left Side and Right Side (1) - Reposition [2x]

  33. Transmission Fluid Auxiliary Cooler Bracket Bolt- Left Side and Right Side (2) - Remove [2x]
  34. GM5485943
    NOTE:

    Left side shown, right side similar.

    Horn Bolt (1)- Left Side and Right Side - Remove [2x]

  35. Horn- Left Side and Right Side (2) - Reposition [2x]
  36. GM5873051

    Reposition the wiring harness.

  37. Front Bumper Impact Bar Bolt (1) - Remove [8x]
  38. Front Bumper Impact Bar (2) - Remove
  39. GM5481345

    Auxiliary Radiator Front Duct- Left Side (1) - Remove

  40. GM5867167

    Using an appropriate tool, remove the auxiliary radiator outlet hose retainer (1) from the auxiliary radiator outlet hose connector at the left side charge air cooler.

  41. Remove the auxiliary radiator outlet hose (2) from the left side charge air cooler.
  42. Rotate hose downward into a drain pan allowing the engine radiator to drain.
  43. GM5862986

    Radiator Outlet Hose Clip (3) - Remove

  44. Using an appropriate tool, remove the retainer (1) from the auxiliary water pump outlet upper hose connector at the left side charge air cooler.
  45. Remove the auxiliary water pump outlet upper hose (2) from the left side charge air cooler.
  46. Drain any remaining coolant into the drain pan.
  47. GM5512211

    Charge Air Cooler Upper Bracket Nut (1) - Loosen

  48. Charge Air Cooler Bracket Bolt (2) - Remove [3x]
  49. GM5512214

    Remove the left side charge air cooler assembly (1) from the vehicle.

  50. Invert the left side charge air cooler (1) and allow the remaining coolant to drain into the drain pan.
  51. GM5512214

    Install the left side charge air cooler assembly (1) to the vehicle.

  52. GM5512211
    CAUTION:

    Refer to Fastener Caution .

    Charge Air Cooler Bracket Bolt (2) - Install and tighten [3x] - Fastener Specifications

  53. Charge Air Cooler Upper Bracket Nut (1) - Tighten - Fastener Specifications
  54. GM5862986

    Install the retainer (1) into the auxiliary water pump outlet upper hose connector.

  55. Install the auxiliary water pump outlet upper hose (2) to the left side charge air cooler ensuring that the retainer (1) is fully engaged.
  56. Radiator Outlet Hose Clip (3) - Install
  57. GM5867167

    Install the retainer (1) into the auxiliary radiator outlet hose connector.

  58. Install the auxiliary radiator outlet hose (2) to the left side charge air cooler ensuring that the retainer (1) is fully engaged.
  59. GM5481345

    Auxiliary Radiator Front Duct- Left Side (1) - Install

  60. GM5873051

    Front Bumper Impact Bar (2) - Install

  61. Front Bumper Impact Bar Bolt (1) - Install and tighten [8x] - Fastener Specifications
  62. Install the wiring harness.
  63. GM5485943
    NOTE:

    Left side shown, right side similar.

    Horn- Left Side and Right Side (2) - Install [2x]

  64. Horn Bolt- Left Side and Right Side (1) - Install and tighten [2x] - Fastener Specifications
  65. GM5873049
    NOTE:

    Left side shown, right side similar.

    Transmission Fluid Auxiliary Cooler Bracket Bolt- Left Side and Right Side (2) - Install and tighten [2x] - Fastener Specifications

  66. Auxiliary Radiator Front Inlet Duct- Left Side and Right Side (1) - Install [2x]
  67. GM5420756

    {With UGN} Forward Range Radar Bracket (2) - Install

    1. Forward Range Radar Bracket Bolt (1) - Install and tighten [3x] - Fastener Specifications
    2. Connect the electrical connector.
  68. GM5481344

    Auxiliary Radiator Duct Retainer- Left Side (1) - Install [2x]

  69. GM5481342

    Auxiliary Radiator Duct Retainer- Left Side (1) - Install [3x]

  70. GM5839403

    Front Bumper Fascia (1) - Install - Front Bumper Fascia Removal and Installation (without Blackwing) , or Front Bumper Fascia Removal and Installation (with Blackwing) , or Front Bumper Fascia Removal and Installation (with Blackwing CFV, CFZ)

  71. GM5482558

    Auxiliary Radiator Rear Duct- Left Side (1) - Install

  72. GM5482555

    Auxiliary Radiator Duct Retainer- Left Side (1) - Install [3x]

  73. GM5875528

    Front Wheelhouse Liner- Left Side (3) - Move into position

  74. Front Wheelhouse Liner Retainer- Left Side (2) - Install
  75. Front Wheelhouse Liner Bolt (1) - Install and tighten [4x] - Fastener Specifications
  76. GM5867672
    NOTE:
    • Quantity of fasteners may vary based on option content.
    • Some components not shown for graphic clarity.

    Engine Front Splash Shield- Left Side (3) - Install

  77. Engine Front Splash Shield Bolt- Left Side (1) - Install and tighten [4x] - Fastener Specifications
  78. Engine Front Splash Shield Retainer- Left Side (2) - Install
  79. Install the left front tire and wheel assembly. Tire and Wheel Removal and Installation
  80. GM5867323

    Front Bumper Fascia Air Deflector- Outer (2) - Install

  81. Front Bumper Fascia Air Deflector Bolt- Left Side (1) - Install and tighten [4x] - Fastener Specifications
  82. GM5873163

    Front Bumper Fascia Lower Reinforcement- Left Side (2) - Install

  83. Front Bumper Fascia Air Deflector Bolt- Left Side (1) - Install and tighten [6x] - Fastener Specifications
  84. GM5873162

    Front Bumper Fascia Air Deflector Bolt- Left Side (3) - Install and tighten [4x] - Fastener Specifications

  85. Front Bumper Fascia Lower Stiffener Bolt- Left Side (2) - Install and tighten - Fastener Specifications
  86. Front Bumper Fascia Bolt- Left Side (1) - Install and tighten [6x] - Fastener Specifications
  87. Lower the vehicle.
