Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Condenser Bracket (3) - Install [2x]
Radiator Air Side Baffle (2) - Install [2x]
Radiator Air Seal Retainer (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

Install air conditioning condenser brackets (2) onto the transmission fluid auxiliary cooler (1).
Install the transmission fluid auxiliary cooler (1) with the air conditioning condenser brackets (2) into the engine compartment.

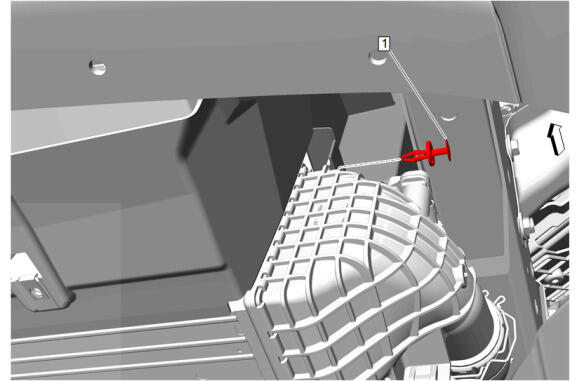

Courtesy of GENERAL MOTORS COMPANY

Retainer (1) - Install
Raise the vehicle.
Courtesy of GENERAL MOTORS COMPANY

Radiator Air Seal Retainer (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Radiator Air Seal Retainer (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia Center Air Deflector (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Quantity of fasteners may vary based on option content.

Front Bumper Fascia Center Air Deflector Retainer (3) - Install [2x]

CAUTION:

Refer to Fastener Caution .

Front Bumper Fascia Center Air Deflector Bolt (2) - Install and tighten - Fastener Specifications
Front Bumper Fascia Center Air Deflector Screw (1) - Install and tighten [6x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Quantity of fasteners may vary based on option content.

Front Bumper Fascia Center Air Deflector Screw (1) - Install and tighten [3x]
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Quantity of fasteners may vary based on option content.

Front Bumper Fascia Center Air Deflector Screw (1) - Install and tighten [10x] - Fastener Specifications
Lower the vehicle.
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Condenser Bracket Bolt- Left Side (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Condenser Bracket Bolt- Right Side (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Install the air conditioning condenser (1) back into the engine compartment by tilting the left and right side radiator air side baffles outward maneuvering condenser past the baffles.
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Condenser Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Radiator Air Seal Retainer (2) - Install [2x]
Air Conditioning Condenser Tube Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Radiator Air Seal Retainer (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Air Conditioning Sealing Washers Oil or Lubricant Exposure Caution .

Air Conditioning Condenser Hose Seal (2) - Install NEW
Air Conditioning Refrigerant Heat Exchanger (1) @ Air Conditioning Condenser - Install
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Compressor and Condenser Hose Seal (2) - Install NEW
Air Conditioning Evaporative Connector Hose/Tube and Compressor Hose (1) @ Air Conditioning Condenser - Install
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Condenser Tube Clip (2) - Install
Air Conditioning Compressor Hose Nut (1) @ Air Conditioning Condenser - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Transmission Fluid Cooler Pipe Bracket Bolt (1) - Install and tighten - Fastener Specifications
Remove the caps from the fittings and plugs from the holes before installing the transmission fluid cooler pipes.
Courtesy of GENERAL MOTORS COMPANY

Transmission Fluid Cooler Seal (1) - Install NEW
Courtesy of GENERAL MOTORS COMPANY

Transmission Fluid Cooler Inlet and Outlet Pipe (2) @ Transmission Fluid Auxiliary Cooler - Install
Transmission Fluid Cooler Pipe Nut (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Install the air cleaner (1) and air cleaner outlet duct (2) as an assembly.
Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Bolt (1) - Install and tighten - Fastener Specifications
Air Cleaner Outlet Duct Clamp (2) - Tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Positive Crankcase Ventilation Tube (3) - Connect - Plastic Collar Quick Connect Fitting Service
Evaporative Emission Canister Purge Tube (2) - Connect - Plastic Collar Quick Connect Fitting Service
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors. (1) [2x]
Connect the wiring harnesses retainers (2) at the air cleaner assembly.
Courtesy of GENERAL MOTORS COMPANY

Radiator Upper Bracket - Left Side (2) - Install
Radiator Upper Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Radiator Upper Bracket - Right Side (3) - Install
Radiator Upper Bracket Bolt (2) - Install and tighten [2x] - Fastener Specifications
Retainer (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Radiator Air Upper Baffle (2) - Install
Radiator Air Upper Deflector Retainer (1) - Install [7x]
Recharge the refrigerant. Refrigerant Recovery and Recharging
Inspect for refrigerant leaks.
Fill and inspect the transmission fluid level. Transmission Fluid Level and Condition Check
Inspect for transmission fluid leaks.
