Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

It is necessary to perform the air conditioning compressor oil balance procedure when replacing the air conditioning compressor. Air Conditioning Compressor Oil Balancing
Courtesy of GENERAL MOTORS COMPANY

Maneuver the air conditioning compressor (3) into the engine compartment.

CAUTION:

Refer to Fastener Caution .

Air Conditioning Compressor Bolt (2) - Install and tighten - Fastener Specifications
Air Conditioning Compressor Nut (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

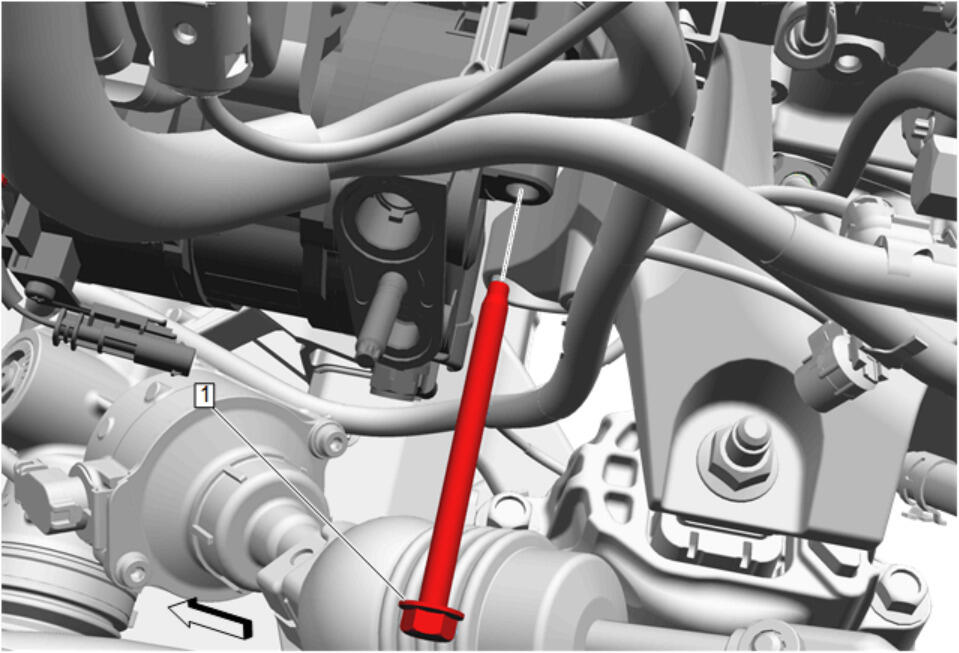

Air Conditioning Compressor Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Air Conditioning Sealing Washers Oil or Lubricant Exposure Caution .

Air Conditioning Compressor and Condenser Hose Seal (3) - Install NEW
Air Conditioning Compressor Hose Seal (2) - Install NEW
Air Conditioning Evaporative Connector Hose/Tube and Compressor Hose (1) @ Air Conditioning Compressor - Install
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Compressor Hose Nut (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors. (1) [3x]
Courtesy of GENERAL MOTORS COMPANY

Accessory Drive Primary Belt (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Use the appropriate tool, rotate the drive belt tensioner (1) counterclockwise to install accessory drive primary belt on the tensioner.
Release the tension on the drive belt tensioner.
Courtesy of GENERAL MOTORS COMPANY

Front Compartment Air Deflector (2) - Install
Front Compartment Air Deflector Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Wheelhouse Liner Bolt (3) - Install and tighten - Fastener Specifications
Engine Front Splash Shield Retainer (2) - Install [2x]
Engine Front Splash Shield Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Wheelhouse Liner Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

NOTE:
Quantity of fasteners may vary based on option content.

Engine Front Splash Shield (3) - Install
Engine Front Splash Shield Screw (1) - Install [5x] - Fastener Specifications
Front Compartment Air Deflector Retainer (2) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

Engine Front Splash Shield Retainer (2) - Install [2x]
Front Bumper Fascia Center Air Deflector Bolt (1) - Install and tighten [5x] - Fastener Specifications
Install the left front tire and wheel. Tire and Wheel Removal and Installation
Lower the vehicle.
Recharge the refrigerant. Refrigerant Recovery and Recharging
Inspect for refrigerant leaks.
